In stock
Low Voltage Holiday Detector M1/AC
SKU : TRM1AC
MAKE : TINKER & RASOR
MODEL : M1/AC
AVAILABILITY : IN STOCK

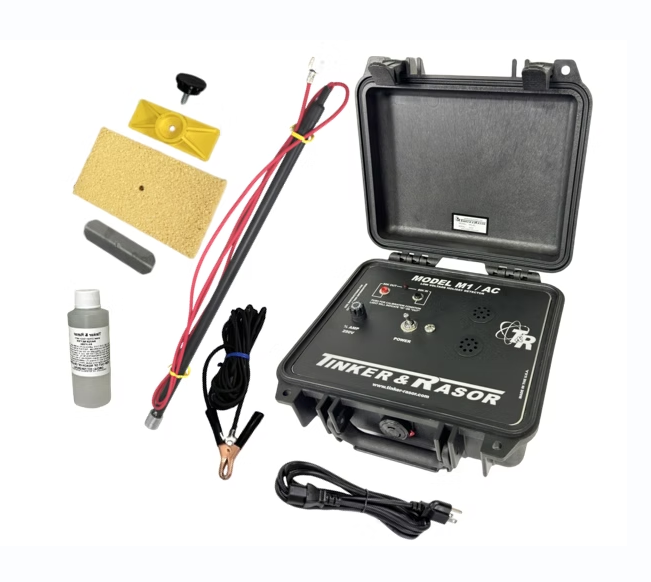

Low Voltage Holiday Detector M1/AC
The M1/AC Low Voltage Holiday Detector is a portable coating inspection instrument designed to detect pinholes, holidays, and discontinuities in protective coatings. It uses low-voltage AC testing and is suitable for inspecting thin protective coatings on conductive substrates.
Features
-
Regulated 67.5 V output
-
Push button calibration check
-
2 Resistance settings
-
(80K ohms for coatings on metal substrates)
-
(90K ohms for coatings on concrete)
-
- External Plug for Optional Klaxon Horn
-
Non-Destructive testing of up to 20 Mil
-
Built into a tough MIL-SPEC Case
Low Voltage Holiday Detector M1/AC
The M1/AC Low Voltage Holiday Detector is a portable coating inspection instrument designed to detect pinholes, holidays, and discontinuities in protective coatings. It uses low-voltage AC testing and is suitable for inspecting thin protective coatings on conductive substrates.
Features
-
Regulated 67.5 V output
-
Push button calibration check
-
2 Resistance settings
-
(80K ohms for coatings on metal substrates)
-
(90K ohms for coatings on concrete)
-
- External Plug for Optional Klaxon Horn
-
Non-Destructive testing of up to 20 Mil
-
Built into a tough MIL-SPEC Case
