Low Voltage Holiday Detector M/1
In stock

Low Voltage Holiday Detector M/1

SKU : TRM1
MAKE : TINKER & RASOR
MODEL : M/1
AVAILABILITY : IN STOCK
Tinker & Rasor

Low Voltage Holiday Detector M/1

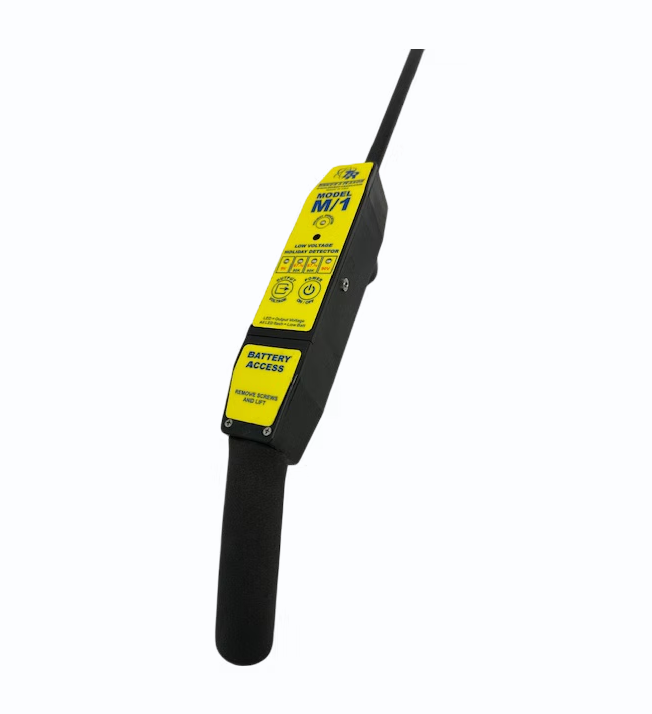

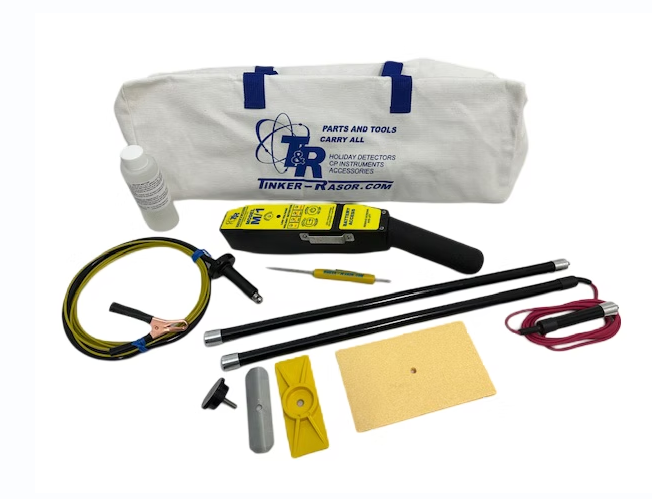

The M/1 Low Voltage Holiday Detector is a portable instrument designed to detect pinholes, holidays, and discontinuities in protective coatings. It is suitable for low-voltage testing of thin coatings on conductive substrates.

New Updates Features

  • Outputs: 9V, 67.5V, 90V

  • 2 Resistance settings

    • 80k for coatings on metal substrates

    • 90k for coatings on concrete

  • Audible & Visual holiday detecting indicators

  • Power LED

  • On-board calibration verification

  • 3.5mm Headphone jack

  • Battery operated (9V)

M/1 Datasheet : Download

What is the M/1 used for?
Detecting holidays and pinholes in protective coatings.

What type of detector is it?
A low-voltage holiday detector.

Where is it used?
For coating inspection in industrial and field applications.

What defects can it detect?
Pinholes, breaks, and coating discontinuities.

Who manufactures the M/1?
Tinker & Rasor.

Low Voltage Holiday Detector M/1

The M/1 Low Voltage Holiday Detector is a portable instrument designed to detect pinholes, holidays, and discontinuities in protective coatings. It is suitable for low-voltage testing of thin coatings on conductive substrates.

New Updates Features

  • Outputs: 9V, 67.5V, 90V

  • 2 Resistance settings

    • 80k for coatings on metal substrates

    • 90k for coatings on concrete

  • Audible & Visual holiday detecting indicators

  • Power LED

  • On-board calibration verification

  • 3.5mm Headphone jack

  • Battery operated (9V)

M/1 Datasheet : Download

What is the M/1 used for?
Detecting holidays and pinholes in protective coatings.

What type of detector is it?
A low-voltage holiday detector.

Where is it used?
For coating inspection in industrial and field applications.

What defects can it detect?
Pinholes, breaks, and coating discontinuities.

Who manufactures the M/1?
Tinker & Rasor.
