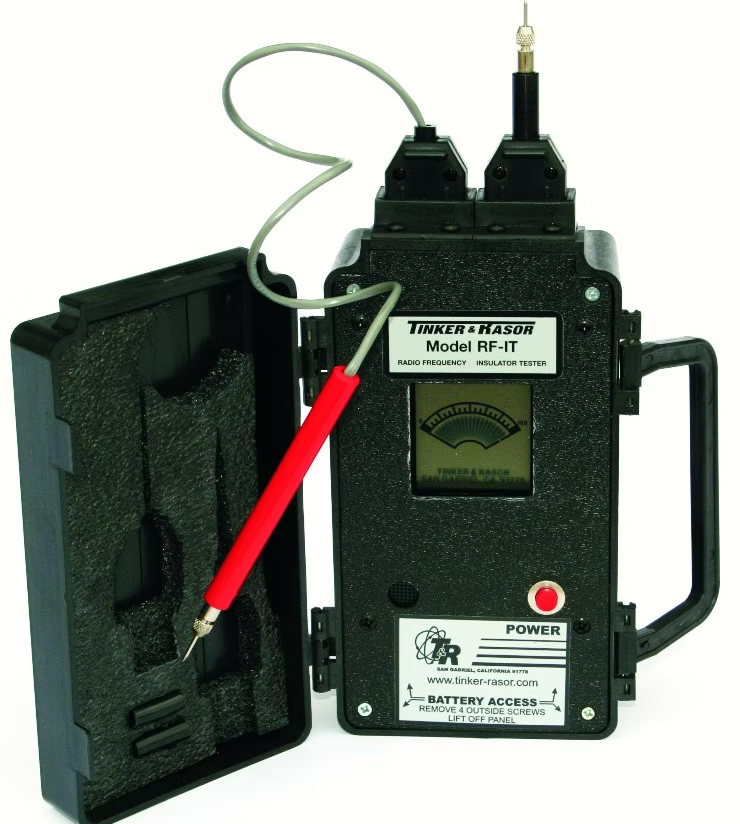

Ground Insulator Tester RF-IT

Specification

Details

Model

RF-IT

Product

Above Ground Insulator Tester

Application

Test above ground pipeline insulators to pinpoint the precise contact point

Testing Technology

Radio Frequency (RF)

Use with Cathodic Protection (CP)

Can be used on structures with or without CP

Primary Function

Locate shorted bolts and pinpoint the precise contact point

Operating Principle

Audible beep becomes faster as the operator gets closer to the contact point; LCD meter moves from left to right

Power Supply

9 V replaceable battery

Cables & Probes

Included

Probe – Red

Lead wire with needle point tip

Probe – Black

Needle point tip

Additional Needle Tips

Included; stored in small black vinyl tubes

Auto Shut-Off

Yes

Construction / Housing

Tough polypropylene case with handle

Dimensions

8 in length × 4 in width × 3 in depth

Operating Weight

2 lbs

Shipping Weight

3 lbs

Included Accessories

Red probe with lead wire and needle point tip; black probe with needle point tip; additional needle tips; 9 V battery; instruction manual; warranty card

Delivery

Immediately from stock

FOB

New Braunfels, TX, USA

Service

24-hour turn-around

Terms

Net 30 days, on approval of credit

Warranty

1 year, parts and labor
