Electronic Leak Detector ELD

Name: Electronic Leak Detector ELD
Brand: Tinker & Rasor
SKU: TRELD
Availability: InStock

رمز التخزين التعريفي : TRELD

يصنع : TINKER & RASOR

نموذج : ELD

التوفر : في الأوراق المالية

كمية

Description

Data sheets

Reviews

FAQs

Electronic Leak Detector ELD

Electronic Leak Detection (ELD) is the top choice for waterproofing integrity testing. It’s faster, safer and more cost-effective than traditional flood tests

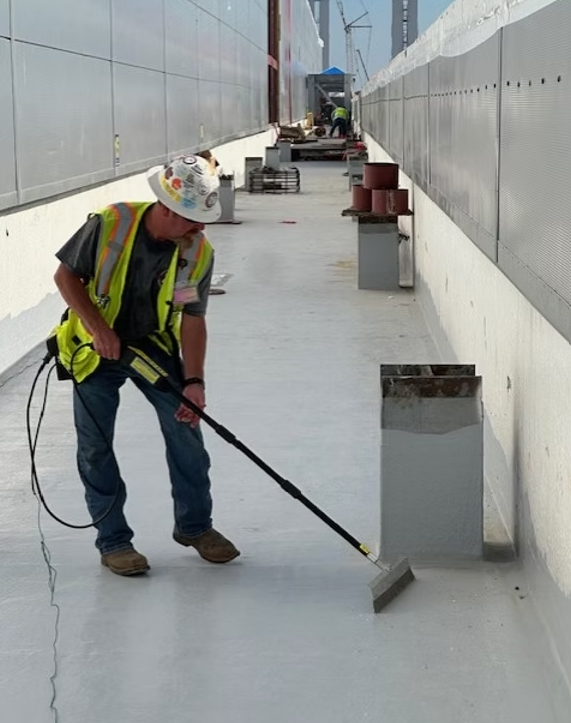

High Voltage Electronic Leak Detection is a sophisticated method used to locate leaks in waterproofing membranes without the risks that come with flood testing a roof. It is particularly effective for detecting even the smallest breaches in non-conductive waterproofing membranes such as single-ply membranes, modified bitumen, and other types of waterproofing layers.

This method ensures precise damage location without the risk of disrupting the existing structure.

1. What is the Model ELD?
The Model ELD is a high-voltage electronic leak detector used to locate leaks in non-conductive waterproofing membranes and coatings.

2. What applications is the ELD used for?
It is mainly used for waterproofing and roofing membrane integrity testing.

3. What voltage range does the ELD provide?
The ELD provides an adjustable output from 800 V to 35,000 V.

4. What type of defects can it detect?
It can locate small breaches or leaks in non-conductive waterproofing membranes.

5. Does the ELD have adjustable sensitivity?
Yes. It has a 6-position sensitivity adjustment for detecting leaks under different conditions.

6. How is a leak indicated?
Leaks are indicated through audible and visual signals.

7. Is the ELD battery operated?
Yes. It uses a rechargeable battery and includes an additional battery.

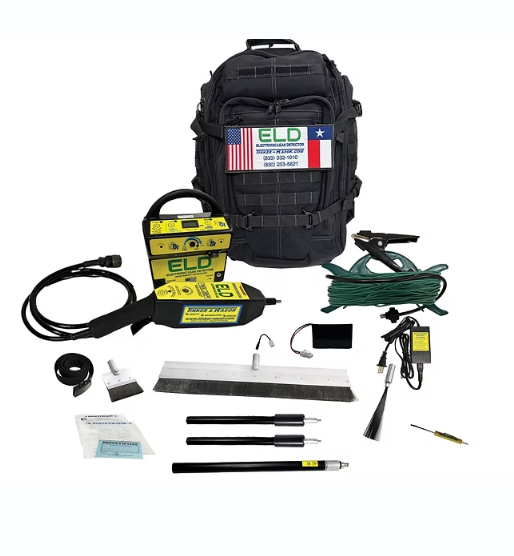

8. What is included in the ELD kit?
The kit includes the ELD unit, power pack, batteries, charger, wands, brushes, ground cable, carrying case, calibration certificate, and operating manual.

9. What is the warranty period?
The Model ELD comes with a 3-year warranty.

10. What standard does the ELD meet?
The manufacturer states that the ELD meets the applicable ASTM standard for electronic leak detection.
