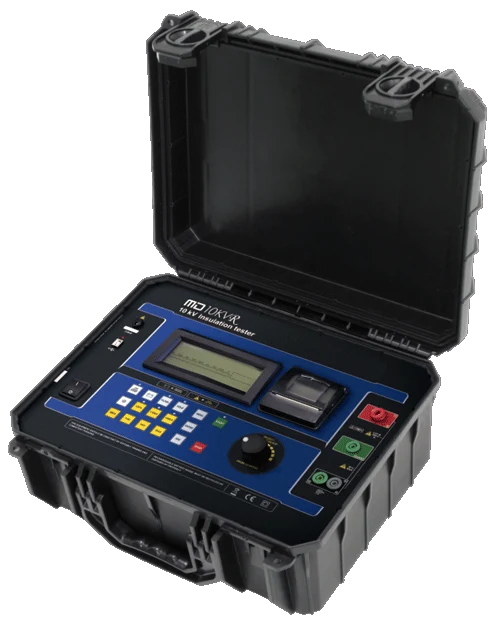

10kV Digital Insulation Tester MD10KVR

The MD10KVR 10 kV Digital Insulation Tester is a state-of-the-art high-voltage insulation testing device, ideal for evaluating the insulation integrity of transformers, cables, switchgear, and other high-voltage equipment. Capable of measuring insulation resistance up to 10 TΩ, this microprocessor-controlled tester offers advanced features such as automated Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Step Voltage tests. With a built-in printer, large internal memory, and the ability to be remotely controlled via an Android device, the MD10KVR ensures accurate, efficient, and safe testing in both laboratory and field environments.

Features

• High-Voltage Testing: Measures insulation resistance up to 10 TΩ with selectable test voltages up to 10 kV.
• Automated Testing Features: Includes automated Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Step Voltage tests for comprehensive insulation analysis.
• Remote Control via Android: Can be controlled remotely using a powerful Android application, enhancing safety and convenience during high-voltage tests.
• Built-In Printer: Provides on-site documentation of measurement results, including time, voltage, and resistance values.
• Large Memory Capacity: Stores up to 16,000 measured values, allowing for extensive data logging and analysis.
• Advanced Safety Features: Equipped with overvoltage protection (CAT III - 600V) and complies with IEC 61010-1 safety standards.
• Durable Design: IP65-rated for protection against dust and water, making it suitable for use in harsh environments.
