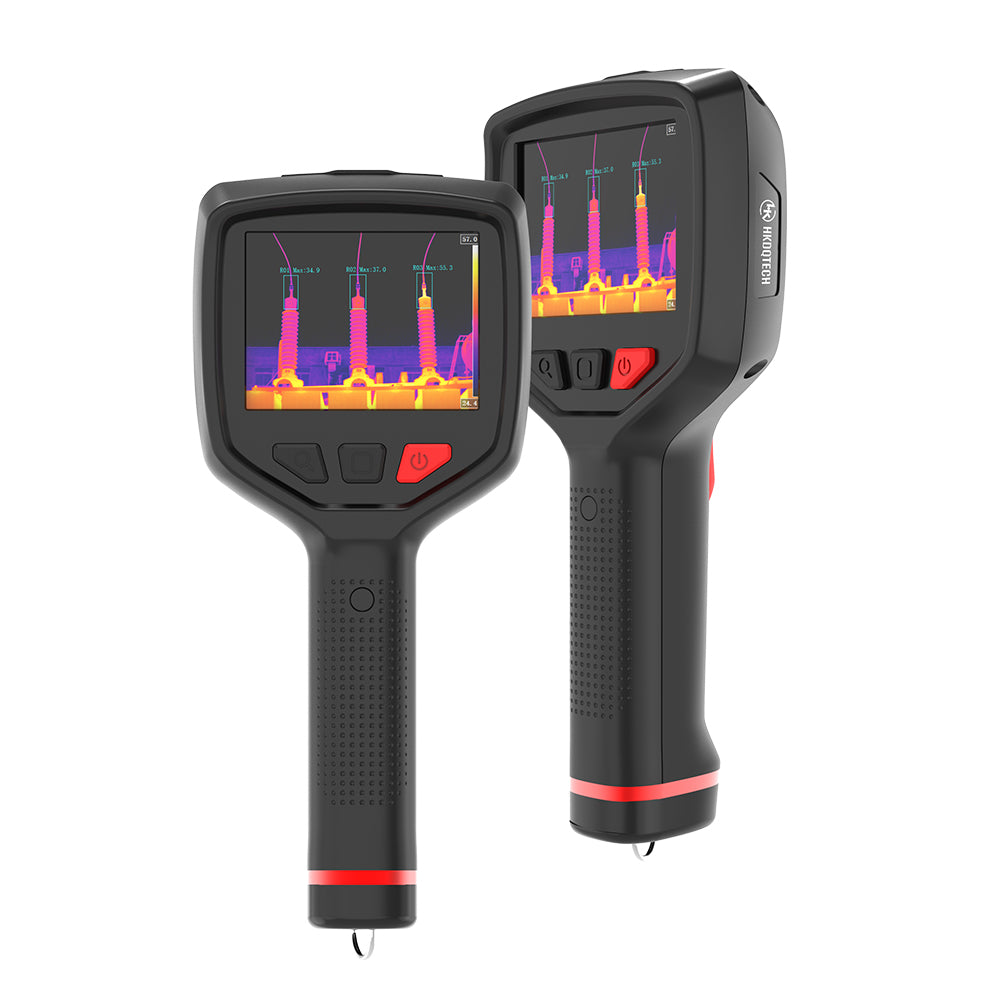

XF200-E Handheld Thermal Camera
In stock

XF200-E Handheld Thermal Camera

SKU : HKXF200E
MAKE : HKDQTECH
MODEL : XF200-E
AVAILABILITY : IN STOCK
Hkdqtech
SAR 2,500.00 - SAR 2,500.00
SAR 2,500.00
SAR 2,500.00 - SAR 2,500.00
SAR 2,500.00
(Including VAT)

XF200-E Handheld Thermal Camera

The HKDQTECH XF200-E is a handheld industrial thermal imaging camera designed for electrical inspection, equipment maintenance, building diagnostics, and temperature monitoring applications. It combines a high-resolution infrared detector with a visible-light camera to help identify heat anomalies quickly and accurately.

Features:

  • 3.5”LCD touch screen
  • 5 million pixels visual camera
  • Better performance with ±2℃ as accuracy
  • Support WIFI transmission
  • Save more than 10000 images

MODEL

XF200-D

Detector type

Uncooled FPA, VOX material

IR Resolution

256x192

Thermal Sensitivity/NETD

≤50mK(@30℃)

Spectral Range

8~14μm

Field of View

50°x37.2°

Spatial resolution (IFOV)

3.33mrad

Focus

Fixed

Focal Length

3.6mm

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300℃~+650℃

Temperature measurement accuracy

±2℃ or 2% of readings

Digital camera

Built-in 500W pixel digital camera

Palette

10 color palettes

Touch screen

Capacitive touch screen

WIFI

Support,support preview SD card pictures through WIFI

Bluetooth (optional)

Support Bluetooth headset playback

4G (optional)

Transmit real-time images to mobile phones via 4G, view cloud images

Memory card type

32G (standard),128G (optional)

Infrared image format

.jpg (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 video

Memory card type

32G (standard),128G (optional)

Battery type

2pcs of removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use working time of a single battery >4 hours at 25°C

Charging method

Dual charger

Weight

450g (including battery)

Dimensions

230x105x57mm

Operating temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

XF200 series datasheet : Download

1. What is the HKDQTECH XF200-E?
A professional handheld thermal camera for industrial inspections.

2. What is the infrared resolution?
384 × 288 pixels.

3. What temperature range does it measure?
-20°C to 410°C standard, optional up to 650°C.

4. How accurate is it?
±2°C or ±2% of the reading (typical).

5. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera.

6. Can it record images and videos?
Yes, it captures thermal images and H.264 videos.

7. Does it support Wi-Fi?
Yes, for wireless image transfer and sharing.

8. Does it support Bluetooth?
Yes, Bluetooth connectivity is available.

XF200-E Handheld Thermal Camera

The HKDQTECH XF200-E is a handheld industrial thermal imaging camera designed for electrical inspection, equipment maintenance, building diagnostics, and temperature monitoring applications. It combines a high-resolution infrared detector with a visible-light camera to help identify heat anomalies quickly and accurately.

Features:

  • 3.5”LCD touch screen
  • 5 million pixels visual camera
  • Better performance with ±2℃ as accuracy
  • Support WIFI transmission
  • Save more than 10000 images

MODEL

XF200-D

Detector type

Uncooled FPA, VOX material

IR Resolution

256x192

Thermal Sensitivity/NETD

≤50mK(@30℃)

Spectral Range

8~14μm

Field of View

50°x37.2°

Spatial resolution (IFOV)

3.33mrad

Focus

Fixed

Focal Length

3.6mm

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300℃~+650℃

Temperature measurement accuracy

±2℃ or 2% of readings

Digital camera

Built-in 500W pixel digital camera

Palette

10 color palettes

Touch screen

Capacitive touch screen

WIFI

Support,support preview SD card pictures through WIFI

Bluetooth (optional)

Support Bluetooth headset playback

4G (optional)

Transmit real-time images to mobile phones via 4G, view cloud images

Memory card type

32G (standard),128G (optional)

Infrared image format

.jpg (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 video

Memory card type

32G (standard),128G (optional)

Battery type

2pcs of removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use working time of a single battery >4 hours at 25°C

Charging method

Dual charger

Weight

450g (including battery)

Dimensions

230x105x57mm

Operating temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

XF200 series datasheet : Download

1. What is the HKDQTECH XF200-E?
A professional handheld thermal camera for industrial inspections.

2. What is the infrared resolution?
384 × 288 pixels.

3. What temperature range does it measure?
-20°C to 410°C standard, optional up to 650°C.

4. How accurate is it?
±2°C or ±2% of the reading (typical).

5. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera.

6. Can it record images and videos?
Yes, it captures thermal images and H.264 videos.

7. Does it support Wi-Fi?
Yes, for wireless image transfer and sharing.

8. Does it support Bluetooth?
Yes, Bluetooth connectivity is available.
