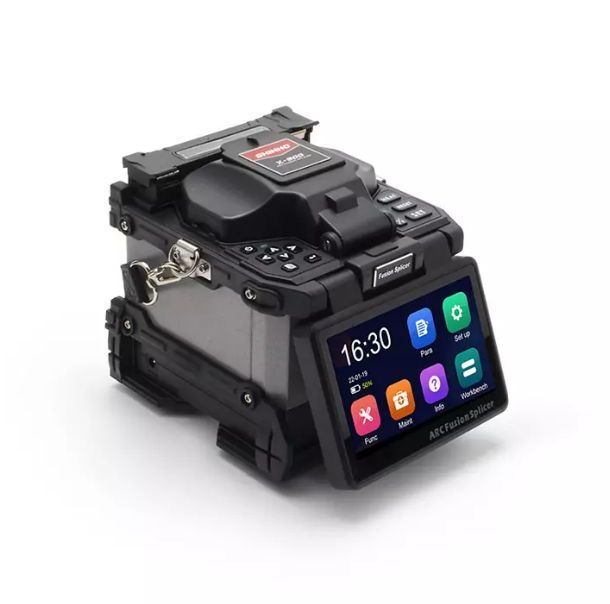

X-900 Multi-function Fusion Splicer
In stock

X-900 Multi-function Fusion Splicer

SKU : SHX900
MAKE : SHINHO
MODEL : X-900
AVAILABILITY : IN STOCK
Shinho
SAR 9,900.00 - SAR 9,900.00
SAR 9,900.00
SAR 9,900.00 - SAR 9,900.00
SAR 9,900.00
(Including VAT)

X-900 Multi-function Fusion Splicer

X-900 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.

6 seconds splicing & 18 seconds heating
5” high resolution display, touch screen and button dual operation
Anti-shock, anti-vibration, dust-proof & water-resistant, IP52 certified
Universal fiber holder, apply to 250μm/0.9mm/2.0mm/3.0mm fibers

Features

  • High precision splicer(imported motors)
  • Core to core alignment system with adjustable focus of fiber core
  •  Full automatical propulsion splicing
  • Calibrate the Arc in a realtime
  • Fiber type identification automatic supported
  • 3 in 1 fiber holders, adapt to various work needs
  • 4 core CPU with a lower power cost



Model

SC600

Alignment Method

6 motors core to core alignment

Applicable Fiber

G651/G652/G653/G654/G655/G657 etc.

Cladding Diameter

80~150μm

Coating Diameter

160~3000μm

Cleaved Length

10~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm)

Typical Splice Loss

G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G654: 0.04dB; G655: 0.04dB; G657: 0.02dB

Return Loss

＞60dB

Splicing Program

40 modes

Operation Mode

Manual/ Auto

Auto-Heating

100 modes, auto-heating supported

Splicing Time

6~12 seconds; fast splicing time 6 seconds

Heating Time

18~26 seconds for 40mm and 60mm shrinkable sleeves

Fiber Magnification

400X (X or Y view), 200X (X and Y view)

Viewing Display

Dual high sensitivity camera, 5" HD color LCD touch screen

Data Storage

10000 groups data records, 100 groups images

Loss Evaluation

Available

Tension Test

1.8～2.2N

Interface

GUI menu interface, easy for operation

Battery Capacity

Detachable 5200mAh Li-battery, typical 300 cycles splicing and heating

Power Supply

Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V

Electrode Life

5000 ARC discharges, easy to replace

Terminal

USB 2.0 port, for software upgrading and records exporting

Operating Condition

Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s

Dimension/Weight

155mm(L) × 144mm(W) × 155mm(H) (including rubber bumper)/2.37kg(with battery)

X-900 Datasheet : Download

1. What is the SHINHO X-900?
The SHINHO X-900 is a 6-motor core-alignment fiber fusion splicer for FTTx, backbone, and access network installations.

2. What type of fiber does it support?
It supports SM, MM, DS, NZDS, and BIF fibers, including G.651, G.652, G.653, G.654, G.655, and G.657.

3. What is the splicing method?
It uses 6-motor core-to-core alignment for high-precision splicing.

4. How fast is the splicing process?
Typical splicing time is 6 seconds.

5. How long does sleeve heating take?
Typical heating time is 18 seconds.

6. Does it support automatic fiber identification?
Yes, it automatically identifies supported fiber types.

7. What display does it have?
A 5-inch HD color touchscreen with dual operation (touchscreen and buttons).

8. Is the X-900 suitable for FTTx projects?
Yes, it is ideal for FTTx, metro, access, and backbone fiber networks.

9. Does it support automatic arc calibration?
Yes, it performs automatic real-time ARC calibration.

10. What is the typical splice loss?
Typically 0.01–0.04 dB, depending on the fiber type.

X-900 Multi-function Fusion Splicer

X-900 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.

6 seconds splicing & 18 seconds heating
5” high resolution display, touch screen and button dual operation
Anti-shock, anti-vibration, dust-proof & water-resistant, IP52 certified
Universal fiber holder, apply to 250μm/0.9mm/2.0mm/3.0mm fibers

Features

  • High precision splicer(imported motors)
  • Core to core alignment system with adjustable focus of fiber core
  •  Full automatical propulsion splicing
  • Calibrate the Arc in a realtime
  • Fiber type identification automatic supported
  • 3 in 1 fiber holders, adapt to various work needs
  • 4 core CPU with a lower power cost



Model

SC600

Alignment Method

6 motors core to core alignment

Applicable Fiber

G651/G652/G653/G654/G655/G657 etc.

Cladding Diameter

80~150μm

Coating Diameter

160~3000μm

Cleaved Length

10~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm)

Typical Splice Loss

G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G654: 0.04dB; G655: 0.04dB; G657: 0.02dB

Return Loss

＞60dB

Splicing Program

40 modes

Operation Mode

Manual/ Auto

Auto-Heating

100 modes, auto-heating supported

Splicing Time

6~12 seconds; fast splicing time 6 seconds

Heating Time

18~26 seconds for 40mm and 60mm shrinkable sleeves

Fiber Magnification

400X (X or Y view), 200X (X and Y view)

Viewing Display

Dual high sensitivity camera, 5" HD color LCD touch screen

Data Storage

10000 groups data records, 100 groups images

Loss Evaluation

Available

Tension Test

1.8～2.2N

Interface

GUI menu interface, easy for operation

Battery Capacity

Detachable 5200mAh Li-battery, typical 300 cycles splicing and heating

Power Supply

Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V

Electrode Life

5000 ARC discharges, easy to replace

Terminal

USB 2.0 port, for software upgrading and records exporting

Operating Condition

Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s

Dimension/Weight

155mm(L) × 144mm(W) × 155mm(H) (including rubber bumper)/2.37kg(with battery)

X-900 Datasheet : Download

1. What is the SHINHO X-900?
The SHINHO X-900 is a 6-motor core-alignment fiber fusion splicer for FTTx, backbone, and access network installations.

2. What type of fiber does it support?
It supports SM, MM, DS, NZDS, and BIF fibers, including G.651, G.652, G.653, G.654, G.655, and G.657.

3. What is the splicing method?
It uses 6-motor core-to-core alignment for high-precision splicing.

4. How fast is the splicing process?
Typical splicing time is 6 seconds.

5. How long does sleeve heating take?
Typical heating time is 18 seconds.

6. Does it support automatic fiber identification?
Yes, it automatically identifies supported fiber types.

7. What display does it have?
A 5-inch HD color touchscreen with dual operation (touchscreen and buttons).

8. Is the X-900 suitable for FTTx projects?
Yes, it is ideal for FTTx, metro, access, and backbone fiber networks.

9. Does it support automatic arc calibration?
Yes, it performs automatic real-time ARC calibration.

10. What is the typical splice loss?
Typically 0.01–0.04 dB, depending on the fiber type.
