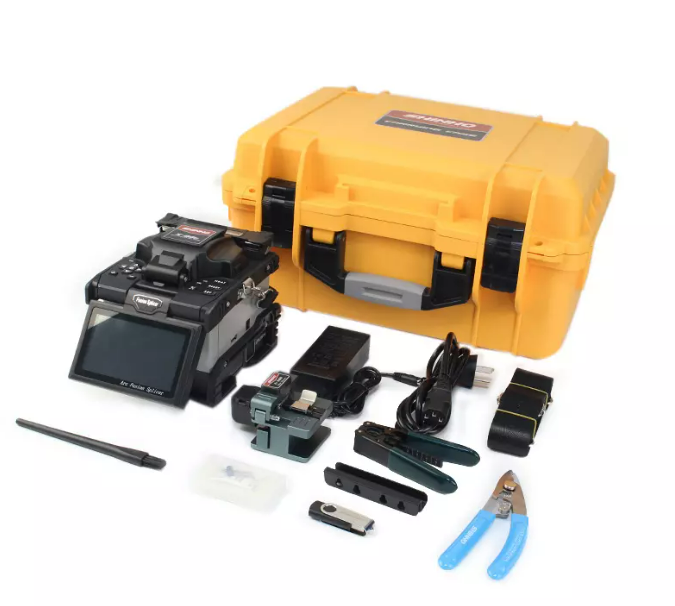

X-80E Multi-function Fusion Splicer (6 motors)
In stock

X-80E Multi-function Fusion Splicer (6 motors)

SKU : SHX80E
MAKE : SHINHO
MODEL : X-80E
AVAILABILITY : IN STOCK
Shinho
SAR 6,900.00 - SAR 6,900.00
SAR 6,900.00
SAR 6,900.00 - SAR 6,900.00
SAR 6,900.00
(Including VAT)

X-80E Multi-function Fusion Splicer (6 motors)

All-metal material, strong and durable
High-precision 6 motor core alignment
Design for for medium backbone,low loss
Shockproof, dustproof, waterproof, IP52 certified

6 Motor Core To Core Alignment

Features

  • Six motors core alignment
  • 6 seconds fast splicing ,18 seconds fast heating
  • Real-time discharge calibration, stable splicing accuracy
  • Industrial Quad Core CPU, fast response
  • More stable performance,anti-shock, dust-proof,water-resistant
  • Inductive automatic heater, not heating without fibers
  • Universal fiber fixture, apply to 250um/0.9mm/2.0mm/3.0mm fibers
  • Suitable for trunk line construction, FTTH project, security monitoring etc



Parameter

Specification

Alignment Method

6-motor core-to-core alignment

Applicable Fiber

G651, G652, G653, G654, G655, G657, etc.

Cladding Diameter

80–150 μm

Coating Diameter

160–1000 μm

Cleaved Length

5–16 mm (coating diameter <250 μm); 16 mm (coating diameter 250–1000 μm)

Typical Splice Loss

G651: 0.01 dB; G652: 0.02 dB; G653: 0.04 dB; G654: 0.04 dB; G655: 0.04 dB; G657: 0.02 dB

Return Loss

>60 dB

Operation Mode

Manual / Auto

Auto Heating

Available

Splicing Time

6–12 seconds

Heating Time

18 seconds (40 mm & 60 mm heat-shrink sleeves)

Fiber Magnification

320× (X or Y view), 107× (X & Y view)

Viewing Display

Dual high-sensitivity cameras, 4.3-inch HD color LCD touchscreen

Data Storage

10,000 fusion records

Loss Evaluation

Available

Tension Test

1.8–2.2 N

User Interface

GUI menu interface

Battery Capacity

Detachable 5200 mAh Li-ion battery, up to 250 splice & heat cycles

Power Supply

AC 100–240 V (50/60 Hz) input; DC 11–13.5 V output

Electrode Life

4,000 ARC discharges, replaceable

Terminal

USB 2.0 (software upgrade & record export)

Operating Conditions

Altitude: 0–5000 m; Humidity: 0–95%; Temperature: -10°C to +50°C; Max wind: 15 m/s

Dimensions / Weight

160 × 136 × 140 mm (L × W × H, including rubber bumper); 2.25 kg (including battery)

X-80E Datasheet : Download

1. What is the SHINHO X-80E?
The X-80E is a 6-motor core alignment fusion splicer designed for trunk, backbone, FTTH, and telecom fiber optic installations.

2. Which fiber types does it support?
It supports G651, G652, G653, G654, G655, and G657 optical fibers.

3. What alignment technology does it use?
It uses 6-motor core-to-core alignment for accurate and low-loss splicing.

4. How fast is the splicing process?
Typical splice time is 6 seconds.

5. How long does sleeve heating take?
Heating takes approximately 18 seconds for 40 mm and 60 mm heat-shrink sleeves.

6. Is the X-80E suitable for outdoor use?
Yes. It features an anti-shock, anti-vibration, dust-proof, and water-resistant design for field applications.

7. What display does it have?
It includes a 4.3-inch LCD display with dual high-sensitivity cameras.

8. How many splice records can it store?
It can store up to 8,000 fusion records.

9. What is the battery capacity?
The detachable 5200 mAh Li-ion battery supports up to 250 splice-and-heat cycles per charge.

10. What applications is the X-80E best suited for?
It is ideal for trunk fiber networks, backbone installations, FTTH, telecom, CATV, and fiber maintenance projects.

X-80E Multi-function Fusion Splicer (6 motors)

All-metal material, strong and durable
High-precision 6 motor core alignment
Design for for medium backbone,low loss
Shockproof, dustproof, waterproof, IP52 certified

6 Motor Core To Core Alignment

Features

  • Six motors core alignment
  • 6 seconds fast splicing ,18 seconds fast heating
  • Real-time discharge calibration, stable splicing accuracy
  • Industrial Quad Core CPU, fast response
  • More stable performance,anti-shock, dust-proof,water-resistant
  • Inductive automatic heater, not heating without fibers
  • Universal fiber fixture, apply to 250um/0.9mm/2.0mm/3.0mm fibers
  • Suitable for trunk line construction, FTTH project, security monitoring etc



Parameter

Specification

Alignment Method

6-motor core-to-core alignment

Applicable Fiber

G651, G652, G653, G654, G655, G657, etc.

Cladding Diameter

80–150 μm

Coating Diameter

160–1000 μm

Cleaved Length

5–16 mm (coating diameter <250 μm); 16 mm (coating diameter 250–1000 μm)

Typical Splice Loss

G651: 0.01 dB; G652: 0.02 dB; G653: 0.04 dB; G654: 0.04 dB; G655: 0.04 dB; G657: 0.02 dB

Return Loss

>60 dB

Operation Mode

Manual / Auto

Auto Heating

Available

Splicing Time

6–12 seconds

Heating Time

18 seconds (40 mm & 60 mm heat-shrink sleeves)

Fiber Magnification

320× (X or Y view), 107× (X & Y view)

Viewing Display

Dual high-sensitivity cameras, 4.3-inch HD color LCD touchscreen

Data Storage

10,000 fusion records

Loss Evaluation

Available

Tension Test

1.8–2.2 N

User Interface

GUI menu interface

Battery Capacity

Detachable 5200 mAh Li-ion battery, up to 250 splice & heat cycles

Power Supply

AC 100–240 V (50/60 Hz) input; DC 11–13.5 V output

Electrode Life

4,000 ARC discharges, replaceable

Terminal

USB 2.0 (software upgrade & record export)

Operating Conditions

Altitude: 0–5000 m; Humidity: 0–95%; Temperature: -10°C to +50°C; Max wind: 15 m/s

Dimensions / Weight

160 × 136 × 140 mm (L × W × H, including rubber bumper); 2.25 kg (including battery)

X-80E Datasheet : Download

1. What is the SHINHO X-80E?
The X-80E is a 6-motor core alignment fusion splicer designed for trunk, backbone, FTTH, and telecom fiber optic installations.

2. Which fiber types does it support?
It supports G651, G652, G653, G654, G655, and G657 optical fibers.

3. What alignment technology does it use?
It uses 6-motor core-to-core alignment for accurate and low-loss splicing.

4. How fast is the splicing process?
Typical splice time is 6 seconds.

5. How long does sleeve heating take?
Heating takes approximately 18 seconds for 40 mm and 60 mm heat-shrink sleeves.

6. Is the X-80E suitable for outdoor use?
Yes. It features an anti-shock, anti-vibration, dust-proof, and water-resistant design for field applications.

7. What display does it have?
It includes a 4.3-inch LCD display with dual high-sensitivity cameras.

8. How many splice records can it store?
It can store up to 8,000 fusion records.

9. What is the battery capacity?
The detachable 5200 mAh Li-ion battery supports up to 250 splice-and-heat cycles per charge.

10. What applications is the X-80E best suited for?
It is ideal for trunk fiber networks, backbone installations, FTTH, telecom, CATV, and fiber maintenance projects.
