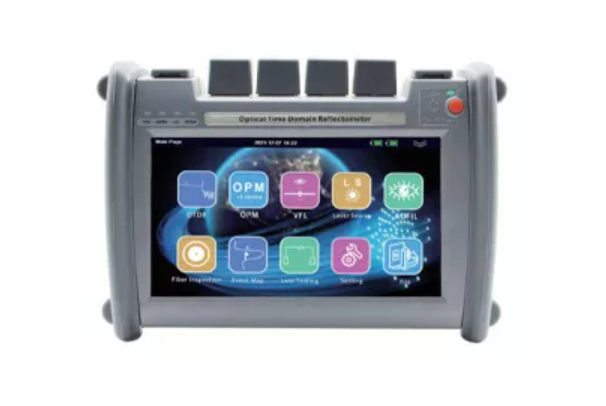

1. What is the SHINHO X-2200?
The X-2200 is a professional multi-function OTDR designed for testing, commissioning, and troubleshooting FTTH, CATV, LAN/WAN, metro, and backbone fiber optic networks.
2. What functions are available?
The X-2200 integrates OTDR with optional Visual Fault Locator (VFL), Optical Power Meter (OPM), Laser Source, Fiber Inspection, Loss Testing, and Event Map (AOFIL) functions.
3. What wavelengths does it support?
It is available in multiple configurations supporting 1310, 1490, 1550, 1625, 1650 nm (single-mode) and 850/1300 nm (multimode), depending on the model.
4. What is the maximum dynamic range?
The X-2200 offers dynamic ranges of up to 45 dB, depending on the selected model.
5. What is the event dead zone?
The typical event dead zone is 0.8 m, with an attenuation dead zone of 4 m for single-mode testing.
6. What display does it feature?
It features a 7-inch TFT color touchscreen with an intuitive graphical user interface.
7. How much data can it store?
The X-2200 uses a 16 GB SD card and can store more than 100,000 OTDR test records.
8. How long does the battery last?
Its dual lithium batteries provide up to 20 hours of standby time, making it suitable for extended field work.
9. What interfaces are available?
The instrument supports USB Type-A, USB Type-B (or Micro-USB depending on version), and SD card interfaces for data transfer and storage.
10. What applications is the X-2200 suitable for?
It is ideal for FTTH, CATV, LAN/WAN, metro networks, access networks, laboratory testing, factory testing, and real-time fiber fault troubleshooting.
