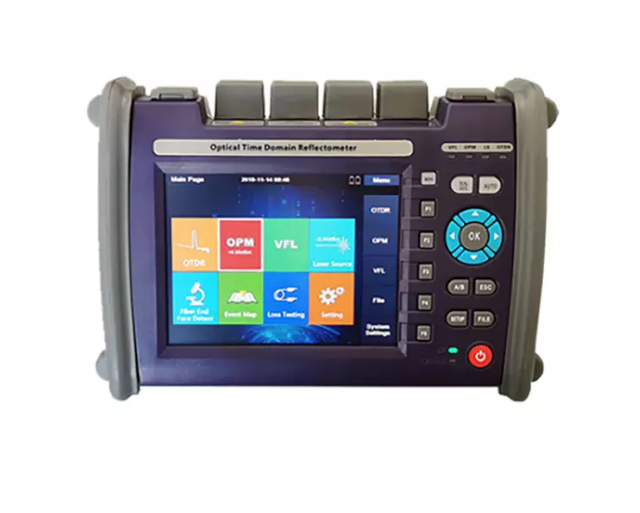

X-2100 Multi-function OTDR
In stock

X-2100 Multi-function OTDR

SKU : SHX2100
MAKE : SHINHO
MODEL : X-2100
AVAILABILITY : IN STOCK
Shinho
SAR 11,500.00 - SAR 11,500.00
SAR 11,500.00
SAR 11,500.00 - SAR 11,500.00
SAR 11,500.00
(Including VAT)

X-2100 Multi-function OTDR

The SHINHO X-2100 Multi-function OTDR is a high-performance optical fiber testing instrument designed for installation, commissioning, maintenance, and troubleshooting of fiber optic networks. It combines OTDR testing with optional functions such as a Visual Fault Locator (VFL), Optical Power Meter (OPM), Laser Source, Wi-Fi/Bluetooth, GPS, and IoT capabilities, making it an all-in-one solution for field technicians. The X-2100 is suitable for FTTH, CATV, LAN/WAN, metro, access, and backbone network testing, offering accurate measurements with excellent short-distance performance and a user-friendly touchscreen interface.

Features:

  • High-performance multi-function OTDR for fiber network testing.
  • Available with multiple wavelength and dynamic range options.
  • Excellent short-range measurement with 0.8 m event dead zone.
  • Maximum 5 cm sampling resolution for precise fault location.
  • 5.6-inch color touchscreen with intuitive GUI interface.
  • Supports segment return loss and event return loss analysis.
  • Multi-curve comparison and quick screenshot capture.
  • Stores up to 100,000 test curves.
  • USB Type-A, Micro-USB, and SD card interfaces for data transfer.

Parameter

Specification

Display

5.6-inch TFT-LCD touchscreen, 640 × 480 resolution

Battery

7.4 V / 2500 mAh lithium battery ×2; up to 8 hours continuous testing (backlight off); 3-hour charging time

Power Adapter

Input: 100–250 V AC, 50–60 Hz, 3 A max; Output: 12 V DC, 35 W

Data Storage

16 GB SD card; stores up to 100,000 test records

Interface

USB Type-A ×1, Micro-USB ×1

Operating Temperature

-10°C to +50°C

Storage Temperature

-20°C to +70°C

Humidity

≤95% (non-condensing)

Dimensions / Weight

215 × 155 × 68 mm; 1.1 kg (including battery)

Standard Package

X-2100 OTDR, power cord, power adapter, FC & SC adapters, lithium battery, USB cable, SD card, user guide, carrying bag, wrist strap, touchscreen pen

Pulse Width

3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs

Testing Distance

500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 200 km, 240 km

Sampling Resolution

Minimum 5 cm

Sampling Points

Maximum 256,000 points

Linearity

≤0.05 dB/dB

Scale Indication

X-axis: 4–70 m/div; Y-axis: 0.09–5 dB/div

Loss Threshold

0.01 dB

Loss Resolution

0.001 dB

Distance Resolution

0.01 m

Distance Accuracy

±(1 m + measuring distance × 3 × 10⁻⁵ + sampling resolution), excluding IOR uncertainty

Refractive Index Setting

1.2000–1.5999 (0.0001 step)

X-2100 Datasheet : Download

1. What is the SHINHO X-2100?
The X-2100 is a multi-function OTDR designed for testing, troubleshooting, and maintaining fiber optic networks such as FTTH, CATV, LAN/WAN, metro, and backbone networks.

2. What functions are available?
The X-2100 combines OTDR testing with optional Visual Fault Locator (VFL), Optical Power Meter (OPM), Laser Source, GPS, Wi-Fi/Bluetooth, and IoT functions.

3. What wavelengths are supported?
It is available in multiple wavelength configurations, including 1310/1550 nm, 1625 nm, 1650 nm, and multimode options, depending on the model.

4. What is the maximum testing distance?
Depending on the model, the X-2100 supports fiber testing distances from 500 m up to 240 km.

5. What is the event dead zone?
The typical event dead zone is 0.8 m, with an attenuation dead zone of 4 m for single-mode models.

6. What display does it feature?
It has a 5.6-inch TFT-LCD color touchscreen with an easy-to-use graphical interface.

7. How much test data can it store?
The X-2100 can store up to 100,000 OTDR test curves.

8. How long does the battery last?
Its dual lithium batteries provide up to 8 hours of continuous operation on a full charge.

9. What interfaces are available?
The unit includes USB Type-A, Micro-USB, and SD card interfaces for data storage and transfer.

10. What applications is the X-2100 suitable for?
It is ideal for FTTH, PON, CATV, LAN/WAN, metro networks, access networks, factory testing, and real-time fiber troubleshooting.

X-2100 Multi-function OTDR

The SHINHO X-2100 Multi-function OTDR is a high-performance optical fiber testing instrument designed for installation, commissioning, maintenance, and troubleshooting of fiber optic networks. It combines OTDR testing with optional functions such as a Visual Fault Locator (VFL), Optical Power Meter (OPM), Laser Source, Wi-Fi/Bluetooth, GPS, and IoT capabilities, making it an all-in-one solution for field technicians. The X-2100 is suitable for FTTH, CATV, LAN/WAN, metro, access, and backbone network testing, offering accurate measurements with excellent short-distance performance and a user-friendly touchscreen interface.

Features:

  • High-performance multi-function OTDR for fiber network testing.
  • Available with multiple wavelength and dynamic range options.
  • Excellent short-range measurement with 0.8 m event dead zone.
  • Maximum 5 cm sampling resolution for precise fault location.
  • 5.6-inch color touchscreen with intuitive GUI interface.
  • Supports segment return loss and event return loss analysis.
  • Multi-curve comparison and quick screenshot capture.
  • Stores up to 100,000 test curves.
  • USB Type-A, Micro-USB, and SD card interfaces for data transfer.

Parameter

Specification

Display

5.6-inch TFT-LCD touchscreen, 640 × 480 resolution

Battery

7.4 V / 2500 mAh lithium battery ×2; up to 8 hours continuous testing (backlight off); 3-hour charging time

Power Adapter

Input: 100–250 V AC, 50–60 Hz, 3 A max; Output: 12 V DC, 35 W

Data Storage

16 GB SD card; stores up to 100,000 test records

Interface

USB Type-A ×1, Micro-USB ×1

Operating Temperature

-10°C to +50°C

Storage Temperature

-20°C to +70°C

Humidity

≤95% (non-condensing)

Dimensions / Weight

215 × 155 × 68 mm; 1.1 kg (including battery)

Standard Package

X-2100 OTDR, power cord, power adapter, FC & SC adapters, lithium battery, USB cable, SD card, user guide, carrying bag, wrist strap, touchscreen pen

Pulse Width

3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs

Testing Distance

500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 200 km, 240 km

Sampling Resolution

Minimum 5 cm

Sampling Points

Maximum 256,000 points

Linearity

≤0.05 dB/dB

Scale Indication

X-axis: 4–70 m/div; Y-axis: 0.09–5 dB/div

Loss Threshold

0.01 dB

Loss Resolution

0.001 dB

Distance Resolution

0.01 m

Distance Accuracy

±(1 m + measuring distance × 3 × 10⁻⁵ + sampling resolution), excluding IOR uncertainty

Refractive Index Setting

1.2000–1.5999 (0.0001 step)

X-2100 Datasheet : Download
