Transformer Tester Microtest 5260 Series

Name: Transformer Tester Microtest 5260 Series
Brand: Microtest
SKU: MT5260
Availability: InStock

SKU : MT5260

MAKE : MICROTEST

MODEL : 5260

AVAILABILITY : IN STOCK

Quantity

Description

Specification

Data sheets

Reviews

FAQs

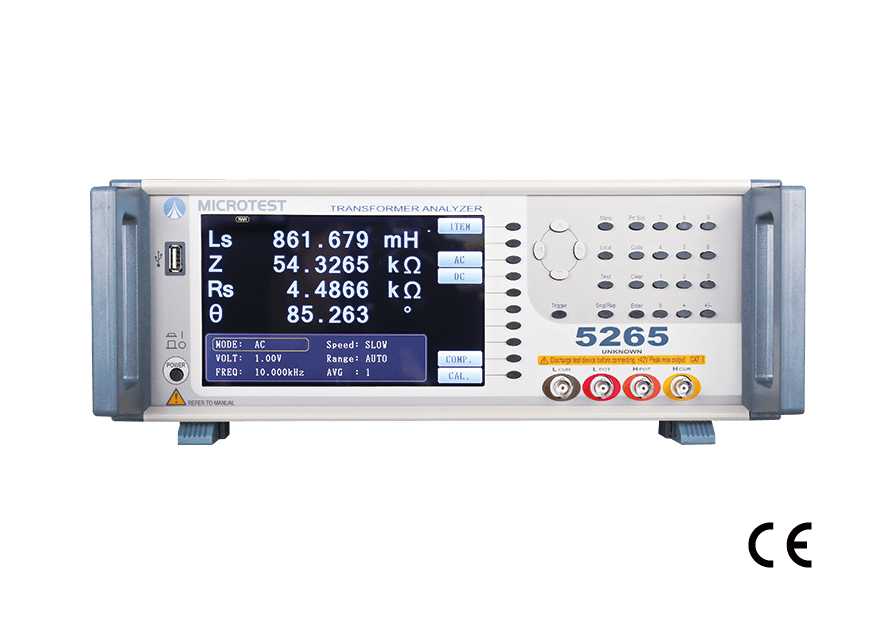

Transformer Tester Microtest 5260 Series

MICROTEST 5260 Series Transformer Tester is a comprehensive device that enables measurement of important parameters for transformer products. It includes inductance, leakage inductance, DC resistance, AC resistance, quality factor, capacitance, turns ratio, and checks for pin short circuits, among other items. The measurement frequency range is from 10Hz to 200k/500k/1MHz. The tester has a built-in LCR meter measurement mode and is equipped with the F5620 pneumatic testing fixture. It provides 20 testing channels and supports 100mA DC bias testing. Customized testing fixture services are available to meet specific customer needs.

Test Frequency: 10Hz-200kHz/500kHz/1MHz
20 Channels
Built-in Meter Mode
Simultaneously display four parameters
Basic accuracy up to ±0.1%
Open circuit/short circuit function

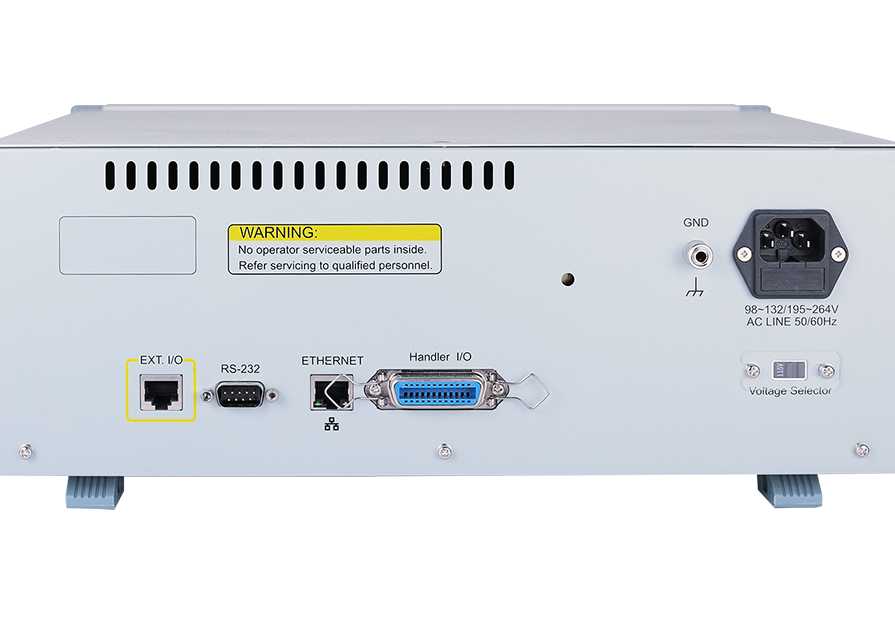

RS-232、Handler、LAN、USB Host 、EXT.I/O

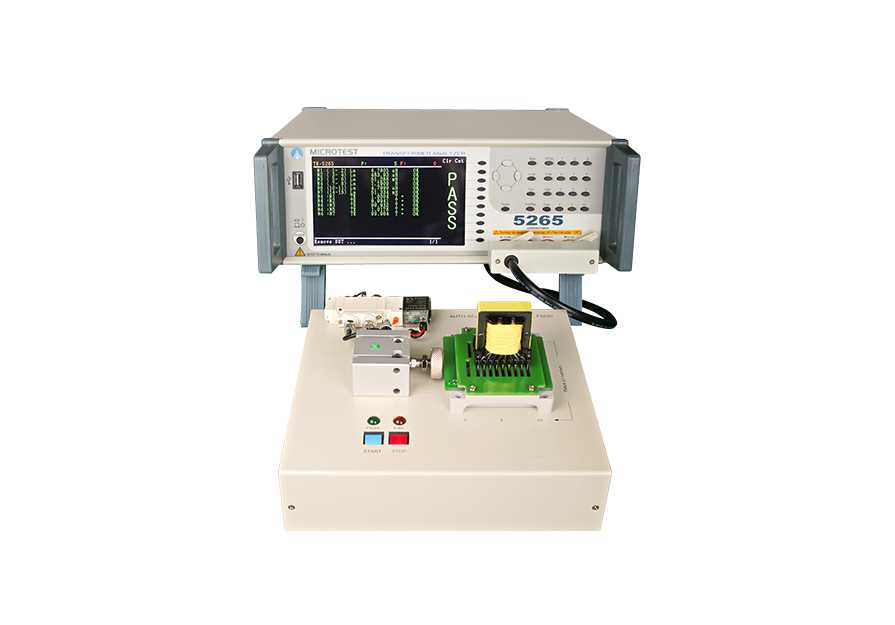

Pneumatic fixture F5620 built-in 100mA DC Bias
USB Host storages can storage setting files, data and capture the screen

Specification	Details
Models	5265 / 5266 / 5267
Test Channels	20
Test Frequency	5265: 10 Hz–200 kHz; 5266: 10 Hz–500 kHz; 5267: 10 Hz–1 MHz
Frequency Resolution	5 digits
Basic Accuracy	±0.1%
AC Drive Level	10 mV–2 Vrms
DC Drive Level	10 mV–2 V
Output Impedance	100 Ω
DC Bias Current	100 mA with F5620 fixture
Turn Ratio Test Frequency	50 Hz–200 kHz
Test Modes	Meter Mode / List Mode
Measurement Parameters	L, Z, C, R, G, B, Y, ACR, Q, Phase Angle, DCR, Leakage Inductance, Turn Ratio, Balance, Pin Short
Inductance / Leakage Inductance Range	0.1 nH–9999.99 H
Capacitance Range	0.00001 pF–999.99 mF
Resistance / Impedance Range	0.00001 Ω–99.9999 MΩ
DCR Range	0.1 mΩ–99.999 MΩ
Turn Ratio Range	0.1–99999.9 turns
Pin-Short Test	12 pin pairs
Measurement Speed	25 ms for most parameters; 50 ms for turn ratio
Calibration	Open Circuit / Short Circuit
Built-in Storage	128 test files
Operation	Auto / Manual / Remote Trigger
Interfaces	RS-232, Handler, LAN, USB Host, EXT. I/O
Display	800 × 480 color screen, 7-inch TFT
Power Supply	98–132 Vac or 195–264 Vac, 47–63 Hz
Operating Environment	10°C–40°C; 10–90% RH
Dimensions	344 × 145 × 343 mm (W × H × D)
Weight	9 kg
Applications	Power transformers and electronic transformers

What is the Microtest 5260 Series?
A transformer tester for measuring key electrical parameters of transformers.

What models are available?
5265, 5266, and 5267.

How many test channels does it have?
It provides 20 test channels.

What is the test frequency range?
Depending on the model, 10 Hz–200 kHz, 500 kHz, or 1 MHz.

What parameters can it measure?
Inductance, leakage inductance, DC resistance, AC resistance, capacitance, Q factor, turns ratio, impedance, and more.

Can it measure turns ratio?
Yes, it supports turns-ratio measurement.

What is the basic measurement accuracy?
Up to ±0.1%.

Does it support DC bias testing?
Yes, it supports 100 mA DC bias testing with the F5620 fixture.

Does it have an LCR meter function?
Yes, it has a built-in Meter Mode for LCR-related measurements.

Can it detect pin-to-pin shorts?
Yes, it supports pin-short testing.

Does it support open/short calibration?
Yes, open-circuit and short-circuit calibration functions are available.

What interfaces are available?
RS-232, Handler, LAN, USB Host, and EXT. I/O.

Can test data be stored?
Yes, the USB Host can store setting files, test data, and screen captures.

What type of fixture is used?
The standard F5620 pneumatic fixture supports 100 mA DC bias testing.
