In stock

Tractel dynafor Industrial 12.5T Crane Scale

Name: Tractel dynafor Industrial 12.5T Crane Scale
Brand: Tractel
SKU: TDI125T
Price: 13200.0 SAR
Availability: InStock

SKU : TDI125T

MAKE : TRACTEL

MODEL : 260919

AVAILABILITY : IN STOCK

Lead Time : 4 weeks

SAR 0.00 - SAR 0.00

SAR 0.00

SAR 13,200.00

SAR 13,200.00 - SAR 13,200.00

SAR 13,200.00

(Including VAT)

Description

Specification

Data sheets

Reviews

Tractel dynafor Industrial 12.5T Crane Scale

Tractel Dynafor Industrial 12.5T Crane Scale

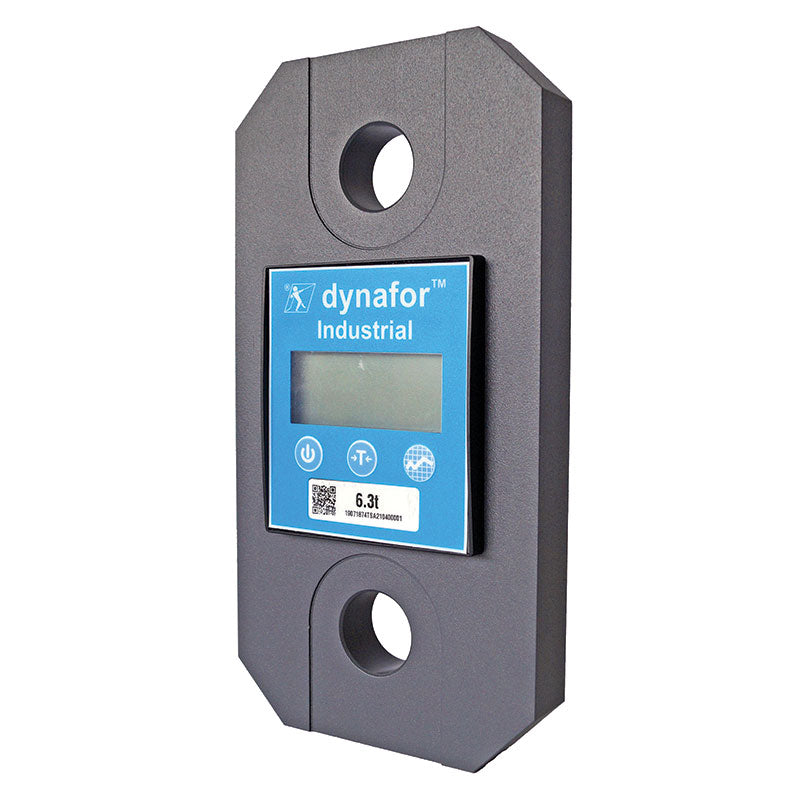

The Dynafor Industrial 12.5 t from Tractel is a robust digital crane scale/dynamometer designed for industrial lifting, overhead weighing and force-measurement applications up to 12.5 tonnes. Built on a strain-gauge sensor principle and housed in a rugged steel/aluminium body with integrated display, it delivers reliable accuracy and ease of use in demanding environments.

Applications:

Overhead Weighing
Force measurement testing
Towing applications
Safety and lifting applications

Specifications:

Capacity range from 1t up to 20t
LCD display of 5-digit of 17.8mm height
0.3% accuracy of full scale
Automatic stop set at 20 min (can be delete in option)
Multiple integrated functions (ON, Tare, Peak Hold, Units change)
Units (kg, t, daN, lbs, ton (US))
IP65

Maximum capacity WLL	12.5t
Safety coefficient	Minimum 4
Minimum load	10% of WLL
Precision	0.3% at 21°C full scale
Resolution	10kg
Sample rate	3 Hz – 32 Hz in “Peak Hold Mode
Maximum display	110% of WLL
Net weight	5.1

Description

Tractel dynafor Industrial 12.5T Crane Scale

Tractel Dynafor Industrial 12.5T Crane Scale

Applications:

Overhead Weighing
Force measurement testing
Towing applications
Safety and lifting applications

Specifications:

Capacity range from 1t up to 20t
LCD display of 5-digit of 17.8mm height
0.3% accuracy of full scale
Automatic stop set at 20 min (can be delete in option)
Multiple integrated functions (ON, Tare, Peak Hold, Units change)
Units (kg, t, daN, lbs, ton (US))
IP65

Specification

Maximum capacity WLL	12.5t
Safety coefficient	Minimum 4
Minimum load	10% of WLL
Precision	0.3% at 21°C full scale
Resolution	10kg
Sample rate	3 Hz – 32 Hz in “Peak Hold Mode
Maximum display	110% of WLL
Net weight	5.1
