SW136 Acoustic imaging camera
In stock

SW136 Acoustic imaging camera

SKU : HKSW136
MAKE : HKDQTECH
MODEL : SW136
WARRANTY : 2
AVAILABILITY : IN STOCK
Hkdqtech
SAR 22,900.00 - SAR 22,900.00
SAR 22,900.00
SAR 22,900.00 - SAR 22,900.00
SAR 22,900.00
(Including VAT)

SW136 Acoustic imaging camera

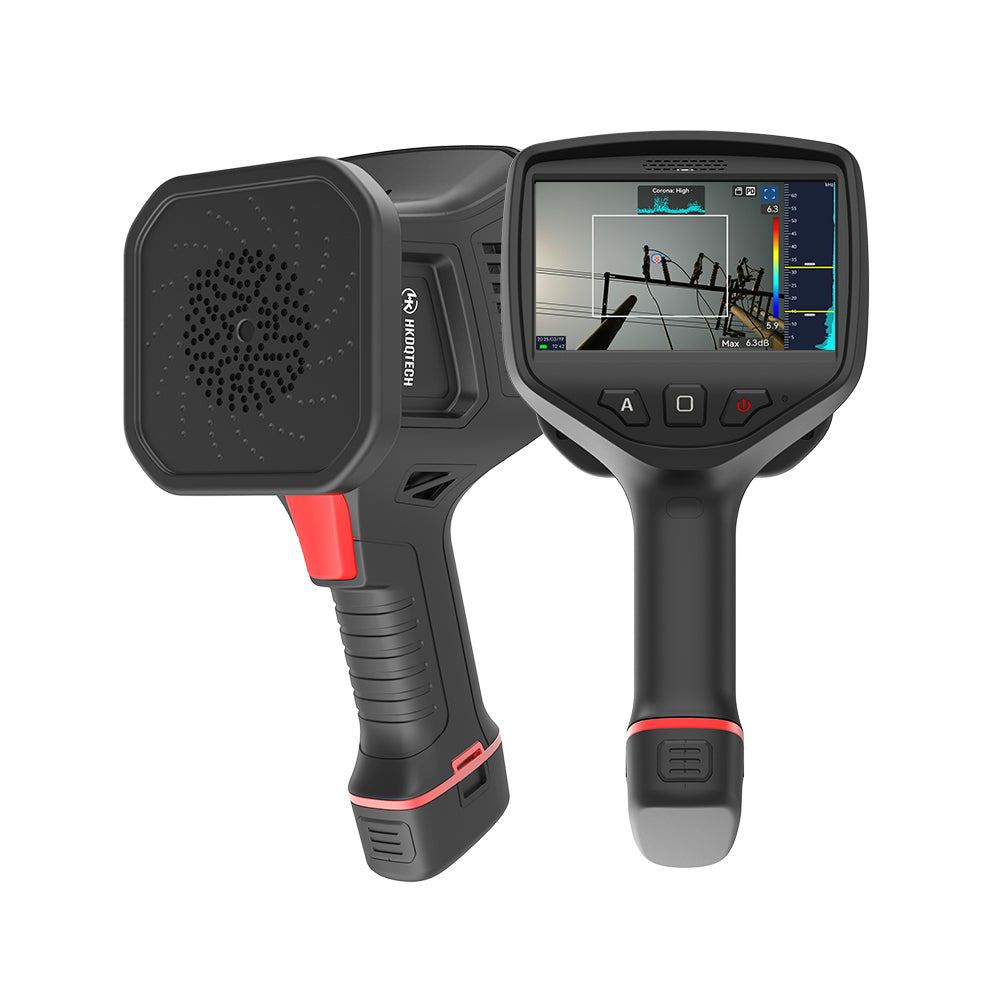

HKDQTECH SW136 Acoustic Imaging Camera is an advanced industrial acoustic detection device designed to visualize and locate sound sources that are difficult to identify with the human ear. It uses a high-sensitivity microphone array and acoustic imaging technology to detect and display sound intensity distribution in real time, helping users quickly identify compressed air leaks, gas leaks, partial discharge faults, and abnormal equipment noise. Acoustic cameras generally work by combining microphone arrays with signal processing algorithms to create visual sound maps overlaid on camera images.

The SW136 provides fast and accurate fault detection for industrial maintenance applications, allowing technicians to perform non-contact inspections and reduce downtime. It is suitable for applications in power systems, manufacturing plants, compressed air systems, and predictive maintenance programs.

Key Features:

  • High-performance acoustic imaging technology for real-time sound source localization
  • 136-channel high-sensitivity microphone array for accurate detection
  • Detects compressed air leaks, gas leakage, partial discharge, and mechanical abnormalities
  • Visualizes ultrasonic sound sources with color acoustic maps
  • Helps identify fault locations from a safe distance
  • Real-time image and video recording capability
  • Portable handheld design for easy field inspection
  • Suitable for electrical inspection, industrial maintenance, and energy-saving applications

Model

SW136

MIC

136 digital silicon MIC array

MIC Sensitivity

-26dBFS@1kHz

Frequency Bandwidth

2kHz ~ 100kHz

Distance

0.3-130m (depending on source signal strength)

Sound Intensity Display

Highest point

Acoustic Detection Mode

Gas leak detection mode, partial discharge detection mode

Image Frequency

25Hz

Maximum Sound Pressure Level

120dB

Minimum Imaging Sound Pressure Level

<20dB SPL, frequency dependent

PRPD Graph

Supported

Acoustic Sampling Rate

200kHz

Location Error

<0.05m@1m, 40kHz

Gas Leakage Loss Display

Supported

Gas Leakage Amount Display

Supported

Gas Leakage Level Display

Supported

Partial Discharge Detection

Supported

Partial Discharge Type Identification

Point discharge, floating discharge, surface discharge, particle discharge


Visible Light Lens Focal Length

2.7mm

Field of View

66°

Maximum Image Size

2592x1944

Image Resolution

800x480

Video Resolution

800x480

Display

5-inch sunlight-readable display screen, 800x480 pixels

Image mode

8 color palettes including Iron Red/Gray/Reverse Iron Red/Reverse Gray.

WIFI

Supports transferring images to mobile phones/computers via Wi-Fi

4G

Supports remote real-time image transmission to mobile phones/computers via 4G

Bluetooth

Supports recording and playback via Bluetooth headsets.

USB transfer

Transfer pictures from the SD card in your device to your PC using USB.

Storage method

32G high-speed SD card

Picture format

.jpg

Video format

.mp4

Battery Type

Removable rechargeable lithium battery

Supply voltage

DC 12V

Battery working time

At 25°C, for general use >2 hours

Charging method

Two-seat charger

Weight

800g

Size

133x147x271mm

Working temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

IP grade

IP54

SW136 Datasheet : Download

1. What is the HKDQTECH SW136?
A handheld acoustic imaging camera for gas leak and partial discharge detection.

2. How many microphones does it have?
136 digital MEMS microphones.

3. What is the frequency range?
0 kHz to 96 kHz.

4. What is the detection distance?
Approximately 0.3 m to 150 m, depending on the sound source.

5. What applications is it suitable for?
Gas leak detection, partial discharge inspection, and mechanical fault detection.

6. Can it detect compressed air leaks?
Yes, it accurately locates compressed air and gas leaks.

7. Can it detect electrical partial discharge?
Yes, it supports partial discharge (PD) detection with PRPD analysis.

8. Does it estimate gas leakage?
Yes, it displays gas leakage rate, level, and estimated loss.

SW136 Acoustic imaging camera

HKDQTECH SW136 Acoustic Imaging Camera is an advanced industrial acoustic detection device designed to visualize and locate sound sources that are difficult to identify with the human ear. It uses a high-sensitivity microphone array and acoustic imaging technology to detect and display sound intensity distribution in real time, helping users quickly identify compressed air leaks, gas leaks, partial discharge faults, and abnormal equipment noise. Acoustic cameras generally work by combining microphone arrays with signal processing algorithms to create visual sound maps overlaid on camera images.

The SW136 provides fast and accurate fault detection for industrial maintenance applications, allowing technicians to perform non-contact inspections and reduce downtime. It is suitable for applications in power systems, manufacturing plants, compressed air systems, and predictive maintenance programs.

Key Features:

  • High-performance acoustic imaging technology for real-time sound source localization
  • 136-channel high-sensitivity microphone array for accurate detection
  • Detects compressed air leaks, gas leakage, partial discharge, and mechanical abnormalities
  • Visualizes ultrasonic sound sources with color acoustic maps
  • Helps identify fault locations from a safe distance
  • Real-time image and video recording capability
  • Portable handheld design for easy field inspection
  • Suitable for electrical inspection, industrial maintenance, and energy-saving applications

Model

SW136

MIC

136 digital silicon MIC array

MIC Sensitivity

-26dBFS@1kHz

Frequency Bandwidth

2kHz ~ 100kHz

Distance

0.3-130m (depending on source signal strength)

Sound Intensity Display

Highest point

Acoustic Detection Mode

Gas leak detection mode, partial discharge detection mode

Image Frequency

25Hz

Maximum Sound Pressure Level

120dB

Minimum Imaging Sound Pressure Level

<20dB SPL, frequency dependent

PRPD Graph

Supported

Acoustic Sampling Rate

200kHz

Location Error

<0.05m@1m, 40kHz

Gas Leakage Loss Display

Supported

Gas Leakage Amount Display

Supported

Gas Leakage Level Display

Supported

Partial Discharge Detection

Supported

Partial Discharge Type Identification

Point discharge, floating discharge, surface discharge, particle discharge


Visible Light Lens Focal Length

2.7mm

Field of View

66°

Maximum Image Size

2592x1944

Image Resolution

800x480

Video Resolution

800x480

Display

5-inch sunlight-readable display screen, 800x480 pixels

Image mode

8 color palettes including Iron Red/Gray/Reverse Iron Red/Reverse Gray.

WIFI

Supports transferring images to mobile phones/computers via Wi-Fi

4G

Supports remote real-time image transmission to mobile phones/computers via 4G

Bluetooth

Supports recording and playback via Bluetooth headsets.

USB transfer

Transfer pictures from the SD card in your device to your PC using USB.

Storage method

32G high-speed SD card

Picture format

.jpg

Video format

.mp4

Battery Type

Removable rechargeable lithium battery

Supply voltage

DC 12V

Battery working time

At 25°C, for general use >2 hours

Charging method

Two-seat charger

Weight

800g

Size

133x147x271mm

Working temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

IP grade

IP54

SW136 Datasheet : Download

1. What is the HKDQTECH SW136?
A handheld acoustic imaging camera for gas leak and partial discharge detection.

2. How many microphones does it have?
136 digital MEMS microphones.

3. What is the frequency range?
0 kHz to 96 kHz.

4. What is the detection distance?
Approximately 0.3 m to 150 m, depending on the sound source.

5. What applications is it suitable for?
Gas leak detection, partial discharge inspection, and mechanical fault detection.

6. Can it detect compressed air leaks?
Yes, it accurately locates compressed air and gas leaks.

7. Can it detect electrical partial discharge?
Yes, it supports partial discharge (PD) detection with PRPD analysis.

8. Does it estimate gas leakage?
Yes, it displays gas leakage rate, level, and estimated loss.
