Scarlet WindPro Wireless Wind Monitor
In stock

Scarlet WindPro Wireless Wind Monitor

SKU : SCWPRO
MAKE : SCARLET
MODEL : WINDPRO
AVAILABILITY : IN STOCK
Scarlet
SAR 6,900.00 - SAR 6,900.00
SAR 6,900.00
SAR 6,900.00 - SAR 6,900.00
SAR 6,900.00
(Including VAT)

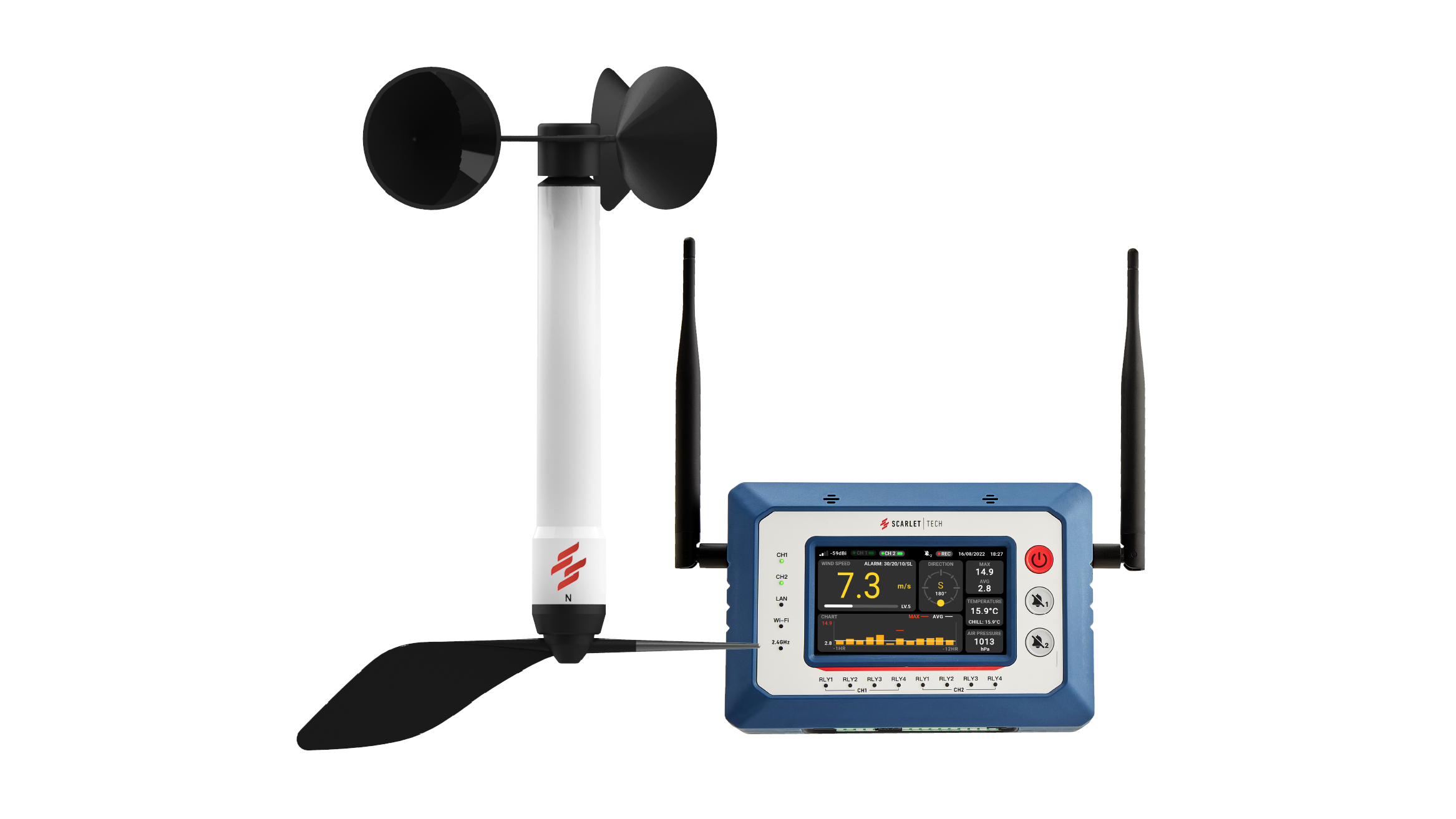

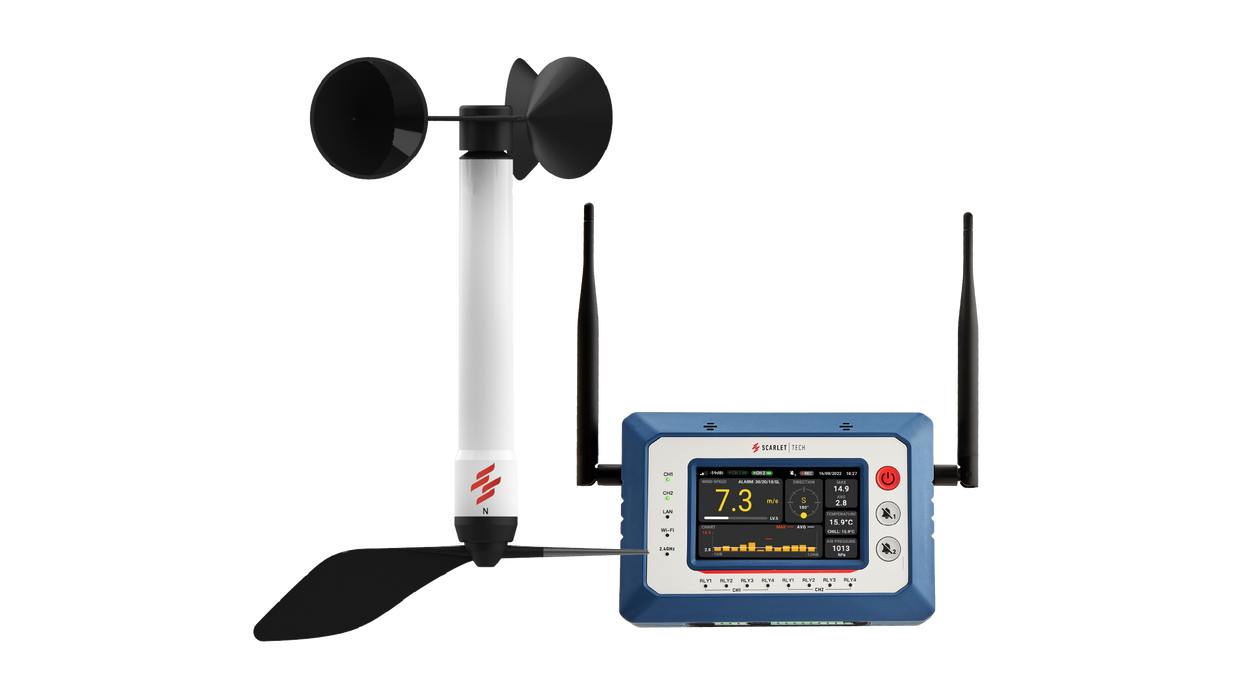

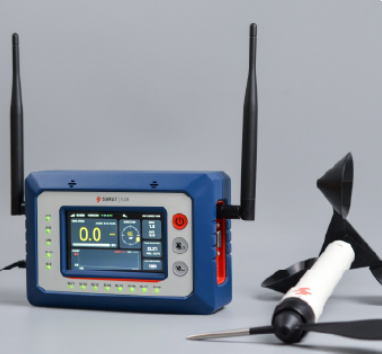

Scarlet WindPro Wireless Wind Monitor

The SCARLET WindPro Wireless Wind Monitor is an advanced industrial wind monitoring and control system designed to provide accurate, real-time measurement of wind speed, wind direction, air temperature, atmospheric pressure, and wind chill. Featuring an ultra-long wireless range of up to 1,000 m, a full-color touchscreen console, configurable alarms, and multiple industrial communication interfaces, WindPro enables seamless integration with PLC, SCADA, LED displays, and other automation systems. It is ideal for cranes, ports, offshore platforms, construction sites, wind farms, mining, and other industrial applications.

Features

  • Up to 1,000 m long-range wireless communication.
  • Measures wind speed, wind direction, air temperature, atmospheric pressure, and wind chill.
  • 4.3-inch full-color touchscreen with real-time weather data display.
  • Supports up to 2 wireless wind sensors on a single console.
  • 4-level configurable alarm system with audible buzzer and relay outputs.
  • 128 MB built-in data logger with data export via USB.
  • Industrial communication interfaces: 4–20 mA, RS232, USB, RJ45, relay outputs, and Bluetooth.
  • IP67-rated wireless wind sensor for harsh outdoor environments.
  • 3-year battery life for the wireless sensor.
  • Compatible with SCADA, PLC, IIoT, LED displays, and external alarm systems.
  • Bluetooth connectivity through the WindSmart mobile app for live monitoring.
  • Rugged industrial design for reliable operation in demanding environments.
  • Ideal for tower cranes, mobile cranes, ports, offshore platforms, construction sites, renewable energy, mining, and industrial facilities.

Wireless Sensor

Item

Specification

Frequency

868 MHz (default), 915 MHz

Distance

Max. 500 m

Data Rate

Every 2 seconds

Power Supply

3.6V 18505 Lithium Battery ×1

Waterproof Rating

IP67

Weight

406 g

Dimensions

262.5 × 183.5 × 32 mm

Receiver / Datalogger

Item

Specification

Buzzer

>80 dB

Built-in Memory

64 MB

Output

.xlsx, .xls

Data Logger

Wind speed, temperature, atmospheric pressure

Logging Interval

2s, 5s, 10s, 1min, 5min, 10min, 60min

Power Supply

3 × AA batteries, Micro USB

Dimensions

189.6 × 75.6 × 36.3 mm

Weight

205 g

Wind Speed Sensor

Item

Specification

Range

0.3–50 m/s

Accuracy

±2% FS

Resolution

0.1 m/s, 0.1 knots, 0.1 MPH, 0.1 km/h

Units

m/s, knots, MPH, km/h

Atmospheric Pressure Sensor

Item

Specification

Range

500–1100 hPa

Accuracy

±4 hPa

Resolution

1 hPa / 0.1 mmHg / 0.001 bar

Units

hPa, mmHg, bar

Temperature Sensor

Item

Specification

Range

-30°C to 60°C

Accuracy

±1°C

Resolution

0.1°C / 0.1°F

Units

°C, °F

WindPro Datasheet : Download

1. What does WindPro measure?
Wind speed, wind direction, temperature, air pressure, and wind chill.

2. What is the wireless communication range?
Up to 1,000 m (line-of-sight).

3. Can it monitor multiple sensors?
Yes, it supports up to two wireless wind sensors.

4. Does it have wind alarms?
Yes, it features four programmable high-wind alarm levels.

5. Can it connect to PLC or SCADA systems?
Yes, via RS232, 4–20 mA, relay outputs, USB, and RJ45.

6. Is the wind sensor weatherproof?
Yes, the sensor has an IP67-rated enclosure.

7. Does it store historical data?
Yes, with built-in memory and USB data export.

8. Can I monitor data on my smartphone?
Yes, using the WindSmart mobile app.

9. Is remote cloud monitoring available?
Yes, with the optional WindPro Online service.

10. Where is WindPro commonly used?
Ideal for cranes, ports, construction sites, industrial plants, and weather monitoring.
