Scarlet ST-12D Class 1 Integrating SLM

Name: Scarlet ST-12D Class 1 Integrating SLM
Brand: Scarlet
SKU: SCST12D
Price: 7400.0 SAR
Availability: InStock

SKU : SCST12D

MAKE : SCARLET

MODEL : ST-12D

AVAILABILITY : IN STOCK

Original price SAR 7,400.00 - Original price SAR 7,400.00

Original price

SAR 7,400.00

SAR 7,400.00 - SAR 7,400.00

Current price SAR 7,400.00

| /

(Including VAT)

No reviews

Quantity

Description

Specification

Data sheets

Reviews

FAQs

Scarlet ST-12D Class 1 Integrating SLM

The Scarlet ST-12D Class 1 Integrating Sound Level Meter is a professional-grade instrument designed for occupational, environmental, and industrial noise measurement. Compliant with IEC 61672-1:2013 Class 1, it provides high-accuracy sound level measurements, integral, statistical, and exposure analysis. The ST-12D also supports optional 1/1 and 1/3 octave band analysis, MP3/WAV audio recording, and PC software for comprehensive noise data management and reporting.

Features

IEC 61672-1:2013 Class 1 compliant
25–140 dB measurement range (143 dB Peak)
±0.5 dB high accuracy
10 Hz–20 kHz frequency range
A/C/Z frequency weighting
Integral, statistical & exposure analysis
Optional 1/1 & 1/3 octave band analysis
MP3/WAV audio recording
2.4-inch full-color display
4 GB internal memory + 64 GB SD card
USB-C, Bluetooth, Serial & AC/DC outputs
Up to 24-hour battery operation

Standards	IEC 61672 Class 1, IEC 61260 Class 1, IEC 61252:2002
Microphone	1/2-inch pre-polarized condenser
Frequency Range	10 Hz–20 kHz
Measurement Range	20–142 dB (145 dB Peak)
Accuracy	±0.7 dB
Self-generated Noise	<12 dB(A), <17 dB(C), <22 dB(Z)
Frequency Weighting	A, C, Z, B, D
Time Weighting	Fast, Slow, Impulse, Peak
Display	240 × 320 color LCD
Resolution	0.1 dB
Sampling Frequency	48 kHz
Data Storage	32 MB Flash RAM, optional SD card
Output Interface	USB, RS232, AC, DC
Power Supply	4 × LR6 batteries or 5 V external power
Battery Life	Up to 30 hours
Dimensions	260 × 80 × 30 mm
Weight	0.35 kg
Operating Temperature	-10°C to +50°C

ST-12D Datasheet : View Download

1. What is the ST-12D used for?
It is used for professional occupational, industrial, and environmental noise measurement.

2. Which standard does it comply with?
IEC 61672-1:2013 Class 1.

3. What is the measurement range?
25 to 140 dB (143 dB Peak).

4. Does it support octave band analysis?
Yes, optional 1/1 and 1/3 octave band analysis is available.

5. Can it record audio?
Yes, it supports MP3 and WAV audio recording.

6. Can data be transferred to a PC?

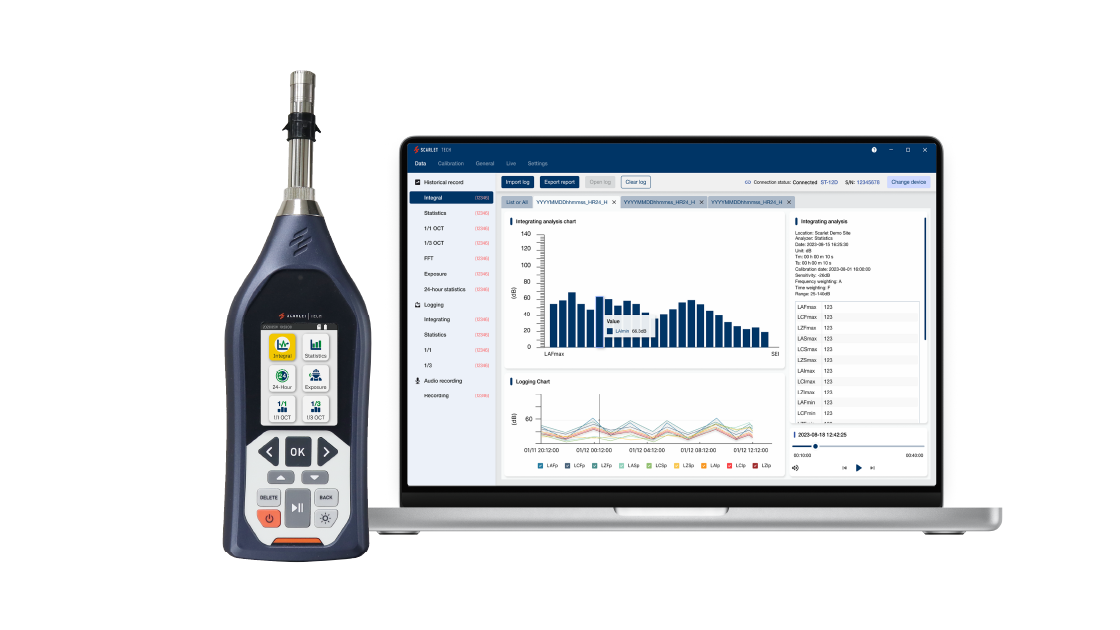

Yes, via USB-C using ScarletSound PC software.

7. What memory capacity does it offer?
4 GB internal memory with support for a 64 GB SD card.

8. Which applications is the ST-12D suitable for?
Environmental monitoring, workplace safety, industrial surveys, construction, aviation, traffic noise, and regulatory compliance.

Description

Scarlet ST-12D Class 1 Integrating SLM

Features

IEC 61672-1:2013 Class 1 compliant
25–140 dB measurement range (143 dB Peak)
±0.5 dB high accuracy
10 Hz–20 kHz frequency range
A/C/Z frequency weighting
Integral, statistical & exposure analysis
Optional 1/1 & 1/3 octave band analysis
MP3/WAV audio recording
2.4-inch full-color display
4 GB internal memory + 64 GB SD card
USB-C, Bluetooth, Serial & AC/DC outputs
Up to 24-hour battery operation

Specification

Standards	IEC 61672 Class 1, IEC 61260 Class 1, IEC 61252:2002
Microphone	1/2-inch pre-polarized condenser
Frequency Range	10 Hz–20 kHz
Measurement Range	20–142 dB (145 dB Peak)
Accuracy	±0.7 dB
Self-generated Noise	<12 dB(A), <17 dB(C), <22 dB(Z)
Frequency Weighting	A, C, Z, B, D
Time Weighting	Fast, Slow, Impulse, Peak
Display	240 × 320 color LCD
Resolution	0.1 dB
Sampling Frequency	48 kHz
Data Storage	32 MB Flash RAM, optional SD card
Output Interface	USB, RS232, AC, DC
Power Supply	4 × LR6 batteries or 5 V external power
Battery Life	Up to 30 hours
Dimensions	260 × 80 × 30 mm
Weight	0.35 kg
Operating Temperature	-10°C to +50°C
