Scarlet SkyTitan Wireless Crane Camera System
In stock

Scarlet SkyTitan Wireless Crane Camera System

SKU : SCSKYTTN
MAKE : SCARLET
MODEL : SKYTITAN
AVAILABILITY : IN STOCK
Scarlet
SAR 39,200.00 - SAR 39,200.00
SAR 39,200.00
SAR 39,200.00 - SAR 39,200.00
SAR 39,200.00
(Including VAT)

Scarlet SkyTitan Wireless Crane Camera System

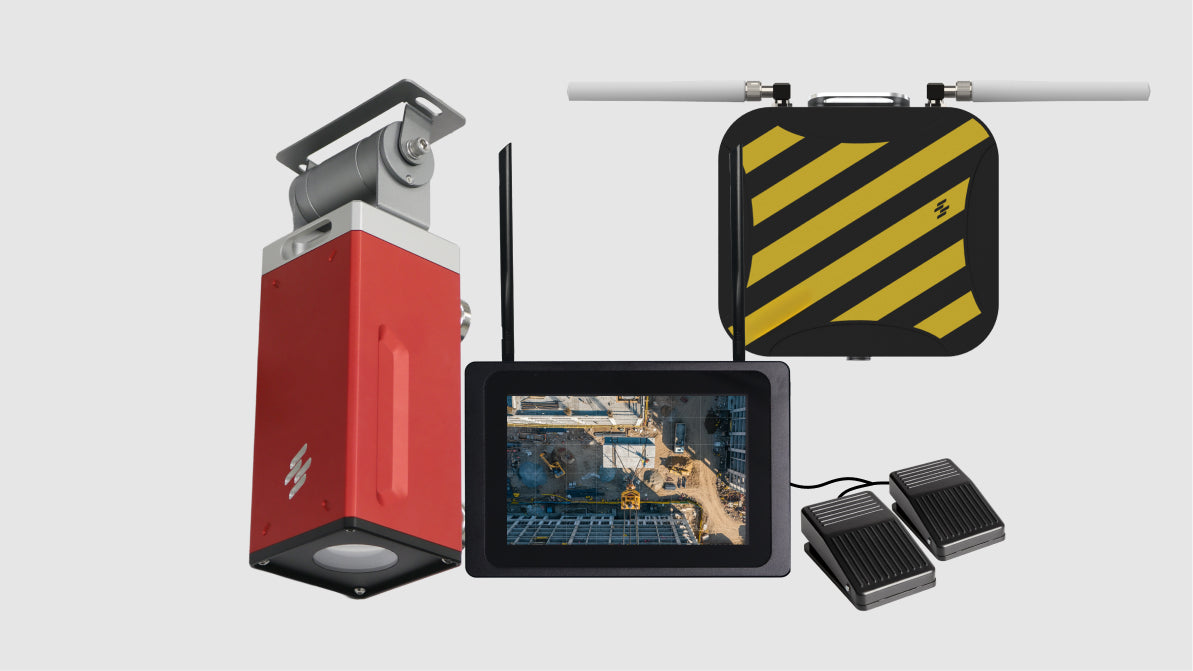

The SCARLET SkyTitan Wireless Crane Camera System is a premium long-range wireless camera solution designed to improve safety and efficiency during crane lifting operations. Equipped with a 25× optical zoom Ultra HD camera, the system delivers crystal-clear live video from the crane boom or hook to the operator's monitor. Featuring 5 GHz Wi-Fi communication, onboard video recording, rugged IP67 protection, and a self-leveling magnetic mounting system, SkyTitan eliminates blind spots and enables precise load monitoring in demanding industrial environments. It is ideal for tower cranes, mobile cranes, port cranes, offshore lifting, mining, and heavy construction projects.

Features

  • Ultra HD (2592 × 1944) camera for high-quality live video.
  • 25× optical zoom for long-distance load inspection.
  • 5 GHz Wi-Fi (802.11ac) for stable, low-latency wireless transmission.
  • Built-in 512 GB SD card for backup video recording.
  • 11.6-inch Full HD IPS monitor console with 1 TB HDD for continuous recording.
  • Supports up to 8 camera channels for multi-camera monitoring.
  • IP67-rated camera and wireless station for harsh outdoor environments.

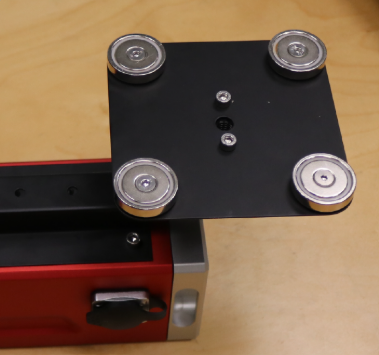

  • Self-leveling magnetic camera mount for quick installation and stable positioning.
  • Optional 288 Wh backup battery providing up to 40 hours of operation.
  • VESA-mounted monitor console for easy installation in crane cabins.
  • Designed to eliminate blind spots, improve lifting safety, and increase operator productivity.
  • Ideal for tower cranes, mobile cranes, port operations, offshore platforms, mining, steel plants, and heavy industrial lifting.

SkyTitan Camera

Item

Description

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

2592 × 1944 (Ultra HD)

Optical Zoom

25× Optical

Focal Length

4.8 ~ 120 mm

Aperture

F1.5 ~ F22

Field of View (Horizontal)

57.6° (Wide) - 2.5° (Tele)

Min. Object Distance

10 – 1500 mm (Wide – Tele)

Dimensions

191 × 83 × 83 mm

Weight

2 kg (4.4 lbs)

Power Input

DC 12V / 2A

Storage

Built-in 512GB SD Card

Waterproof Rating

IP67

Operating Temperature

-10°C to +60°C

Installation

Magnet mounting; Self-leveling bracket

Wireless Station

Item

Description

Wireless Technology

Wi-Fi 5GHz (802.11 ac)

Antenna Type

2 × Omnidirectional (N-type)

Power Input

AC 110–240V; DC 24V / 4A; Optional 288Wh Backup Battery (up to 40 hrs)

Dimensions

265 × 265 × 82 mm

Weight

2.2 kg (4.9 lbs)

Waterproof Rating

IP67

Operating Temperature

-10°C to +60°C

Installation

Magnetic bracket (U-bolt mount)

Monitor Console

Item

Description

Display

11.6" IPS

Resolution

1920 × 1080

Wireless Technology

Wi-Fi 5GHz (802.11 ac)

Video Storage

1TB HDD (30 days in 2K)

Recording Channel

Up to 8CH (default: 1CH)

Power Input

AC 110–220V via Power Adapter

Operating Temperature

-10°C to +60°C

Dimensions

305 × 250 × 45 mm (excluding VESA mount base)

Weight

2.4 kg (5.3 lbs)

Installation

VESA mounting

1. What is the SCARLET SkyTitan?
It is a long-range wireless crane camera system for safe and efficient lifting operations.

2. What video resolution does the camera provide?
It delivers Ultra HD (2592 × 1944) live video.

3. Does the camera support optical zoom?
Yes. It features 25× optical zoom for detailed long-distance viewing.

4. How is video transmitted?
The system uses 5 GHz Wi-Fi (802.11ac) for stable, low-latency wireless communication.

5. Does the camera record video?
Yes. It includes a 512 GB SD card for backup recording, while the monitor console has a 1 TB HDD for up to 30 days of video storage.

6. Is the system suitable for outdoor use?
Yes. The camera and wireless station are IP67-rated for harsh weather conditions.

7. How many cameras can the system support?
The monitor console supports up to 8 camera channels.

8. Does it have a backup power option?
Yes. An optional 288 Wh backup battery provides up to 40 hours of operation.

9. How is the camera installed?
It uses a self-leveling magnetic mounting bracket for quick and secure installation.

10. Which industries use the SkyTitan system?
It is ideal for tower cranes, mobile cranes, ports, offshore platforms, mining, construction, and heavy industrial lifting.

11. What display does the monitor console use?
An 11.6-inch Full HD IPS display with VESA mounting.

12. What are the main benefits of the SkyTitan?
It improves operator visibility, eliminates blind spots, enhances lifting safety, and increases operational efficiency.

Scarlet SkyTitan Wireless Crane Camera System

The SCARLET SkyTitan Wireless Crane Camera System is a premium long-range wireless camera solution designed to improve safety and efficiency during crane lifting operations. Equipped with a 25× optical zoom Ultra HD camera, the system delivers crystal-clear live video from the crane boom or hook to the operator's monitor. Featuring 5 GHz Wi-Fi communication, onboard video recording, rugged IP67 protection, and a self-leveling magnetic mounting system, SkyTitan eliminates blind spots and enables precise load monitoring in demanding industrial environments. It is ideal for tower cranes, mobile cranes, port cranes, offshore lifting, mining, and heavy construction projects.

Features

  • Ultra HD (2592 × 1944) camera for high-quality live video.
  • 25× optical zoom for long-distance load inspection.
  • 5 GHz Wi-Fi (802.11ac) for stable, low-latency wireless transmission.
  • Built-in 512 GB SD card for backup video recording.
  • 11.6-inch Full HD IPS monitor console with 1 TB HDD for continuous recording.
  • Supports up to 8 camera channels for multi-camera monitoring.
  • IP67-rated camera and wireless station for harsh outdoor environments.
  • Self-leveling magnetic camera mount for quick installation and stable positioning.
  • Optional 288 Wh backup battery providing up to 40 hours of operation.
  • VESA-mounted monitor console for easy installation in crane cabins.
  • Designed to eliminate blind spots, improve lifting safety, and increase operator productivity.
  • Ideal for tower cranes, mobile cranes, port operations, offshore platforms, mining, steel plants, and heavy industrial lifting.

SkyTitan Camera

Item

Description

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

2592 × 1944 (Ultra HD)

Optical Zoom

25× Optical

Focal Length

4.8 ~ 120 mm

Aperture

F1.5 ~ F22

Field of View (Horizontal)

57.6° (Wide) - 2.5° (Tele)

Min. Object Distance

10 – 1500 mm (Wide – Tele)

Dimensions

191 × 83 × 83 mm

Weight

2 kg (4.4 lbs)

Power Input

DC 12V / 2A

Storage

Built-in 512GB SD Card

Waterproof Rating

IP67

Operating Temperature

-10°C to +60°C

Installation

Magnet mounting; Self-leveling bracket

Wireless Station

Item

Description

Wireless Technology

Wi-Fi 5GHz (802.11 ac)

Antenna Type

2 × Omnidirectional (N-type)

Power Input

AC 110–240V; DC 24V / 4A; Optional 288Wh Backup Battery (up to 40 hrs)

Dimensions

265 × 265 × 82 mm

Weight

2.2 kg (4.9 lbs)

Waterproof Rating

IP67

Operating Temperature

-10°C to +60°C

Installation

Magnetic bracket (U-bolt mount)

Monitor Console

Item

Description

Display

11.6" IPS

Resolution

1920 × 1080

Wireless Technology

Wi-Fi 5GHz (802.11 ac)

Video Storage

1TB HDD (30 days in 2K)

Recording Channel

Up to 8CH (default: 1CH)

Power Input

AC 110–220V via Power Adapter

Operating Temperature

-10°C to +60°C

Dimensions

305 × 250 × 45 mm (excluding VESA mount base)

Weight

2.4 kg (5.3 lbs)

Installation

VESA mounting

1. What is the SCARLET SkyTitan?
It is a long-range wireless crane camera system for safe and efficient lifting operations.

2. What video resolution does the camera provide?
It delivers Ultra HD (2592 × 1944) live video.

3. Does the camera support optical zoom?
Yes. It features 25× optical zoom for detailed long-distance viewing.

4. How is video transmitted?
The system uses 5 GHz Wi-Fi (802.11ac) for stable, low-latency wireless communication.

5. Does the camera record video?
Yes. It includes a 512 GB SD card for backup recording, while the monitor console has a 1 TB HDD for up to 30 days of video storage.

6. Is the system suitable for outdoor use?
Yes. The camera and wireless station are IP67-rated for harsh weather conditions.

7. How many cameras can the system support?
The monitor console supports up to 8 camera channels.

8. Does it have a backup power option?
Yes. An optional 288 Wh backup battery provides up to 40 hours of operation.

9. How is the camera installed?
It uses a self-leveling magnetic mounting bracket for quick and secure installation.

10. Which industries use the SkyTitan system?
It is ideal for tower cranes, mobile cranes, ports, offshore platforms, mining, construction, and heavy industrial lifting.

11. What display does the monitor console use?
An 11.6-inch Full HD IPS display with VESA mounting.

12. What are the main benefits of the SkyTitan?
It improves operator visibility, eliminates blind spots, enhances lifting safety, and increases operational efficiency.
