SC600 High Performance Thermal Imaging Camera , AA (Air Acoustic) and TEV (Transient Earth Voltage) detection

Name: SC600 High Performance Thermal Imaging Camera , AA (Air Acoustic) and TEV (Transient Earth Voltage) detection
Brand: HKDQTECH
SKU: HKSC600
Price: 38000.0 SAR
Availability: InStock

SKU : HKSC600

MAKE : HKDQTECH

MODEL : SC600

WARRANTY : 2 YEAR

AVAILABILITY : IN STOCK

Original price SAR 38,000.00 - Original price SAR 38,000.00

Original price

SAR 38,000.00

SAR 38,000.00 - SAR 38,000.00

Current price SAR 38,000.00

| /

(Including VAT)

No reviews

Quantity

Description

Specification

Data sheets

Reviews

FAQs

SC600 High Performance Thermal Imaging Camera , AA (Air Acoustic) and TEV (Transient Earth Voltage) detection

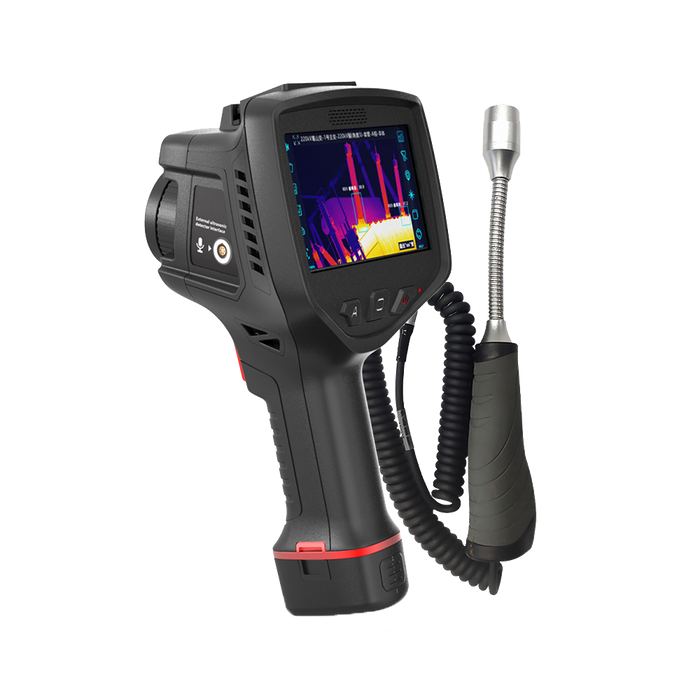

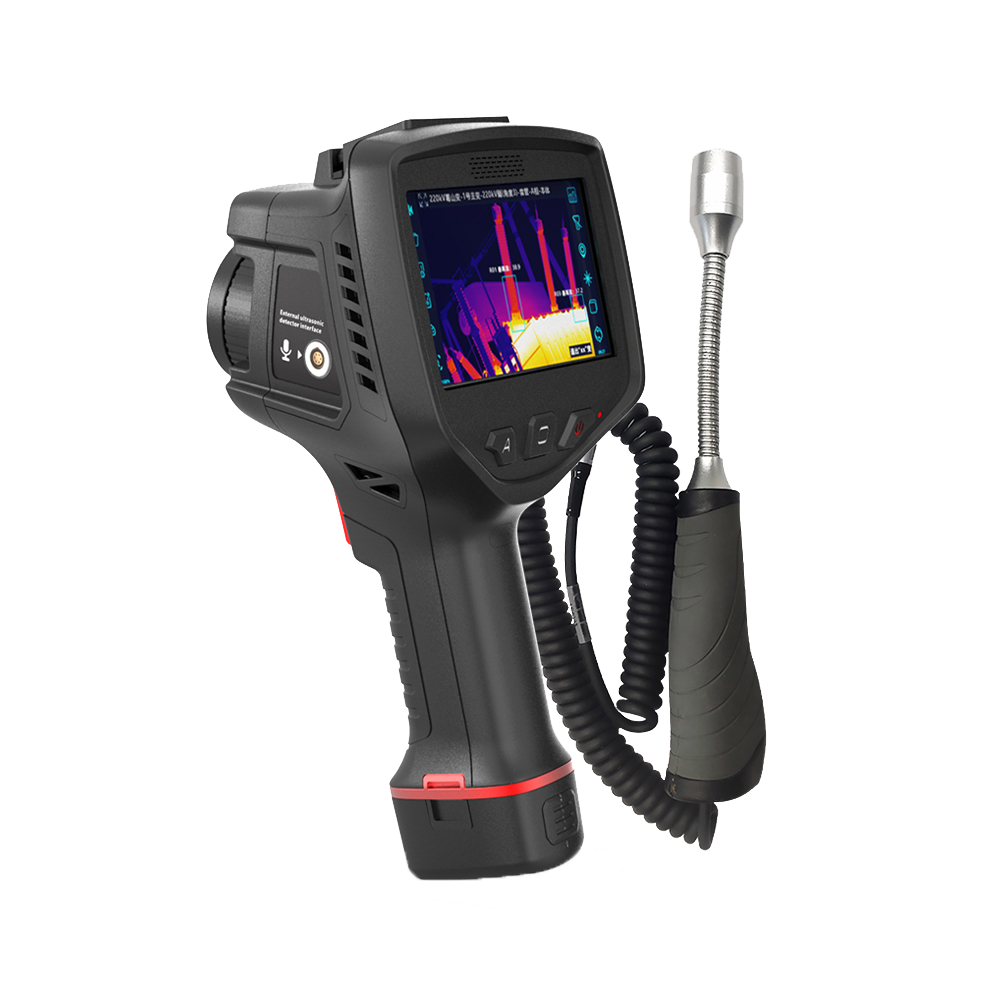

The HKDQTECH SC600 is a high-performance handheld thermal imaging camera designed for professional inspection, predictive maintenance, and fault diagnosis applications. Equipped with high infrared resolution and advanced temperature measurement technology, it delivers accurate and reliable thermal images for detecting abnormal heat patterns in electrical, mechanical, and industrial systems.

With support for AA (Air Acoustic) and TEV (Transient Earth Voltage) detection, the SC600 provides enhanced capabilities for identifying partial discharge activities and potential electrical faults. Its manual focus design allows users to achieve clear thermal images at different inspection distances, while the high thermal sensitivity of <40mK with a 24° lens ensures excellent detection of small temperature differences.

Features:

High infrared resolution for detailed thermal imaging
AA and TEV detection for electrical fault and partial discharge inspection
Manual focus for precise image adjustment
High thermal sensitivity: <40mK with 24° lens
Temperature measurement accuracy: ±3.6°F or ±2%
Multiple lens options available for various applications
IP54-rated protection against dust and water ingress
Suitable for electrical inspection, equipment maintenance, and industrial diagnostics

Model	SC600
Detector type	Uncooled FPA, VOX material
IR Resolution	640x512
Thermal Sensitivity/NETD	＜40mK（@30℃）
Spectral Range	8~14μm
Standard lens	24°
Optional lens	48 °, 12 °, 6 °, etc
Spatial resolution (IFOV)	0.66mrad (24° lens);1.39mrad (48° lens); 0.33mrad (12° lens);0.16mrad (6° lens)
Focus	Manual
Minimum focal distance	0.15m (24° lens);0.15m (48° lens); 0.5m (12° lens);2m (6° lens)
Display	5" Sunshine Visible Display Screen,800x480
Object temperature range	-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)
Optional temperature range	+300°C~+650°C/+300°C~+2,000°C/other ranges (high temperature range)
Temperature measurement accuracy	±2℃ or ±2% of readings
Digital camera	Built-in 500W pixel digital camera with LED light
Laser pointer	Support
Palette	10 color palettes
Touch screen	Capacitive touch screen
Temperature measurement settings	10 points, 10 boxes, 5 lines at the same time, including maximum/minimum/average values
Full screen maximum/minimum temperature	Support, automatically capture the highest/lowest temperature of the full screen
Digital zoom	1×, 2×, 4×, 8×
Radiance correction	Automatic, based on input values of emissivity
Atmospheric transfer correction	Automatic, based on input values of distance, atmospheric temperature and relative humidity
Storage method	32G high-speed SD card
Infrared image format	.jpg (including full temperature data)/.png (including full temperature data)
Visible light image format	.jpg
Infrared video format	H.264 or full-radiation infrared video
Video output	HDMI
Video output interface	Micro HDMI interface
Partial discharge detection configuration	AA and TEV
Detection frequency band	40±1kHz
Detection dynamic range	-8～68dBμV
Sensor sensitivity	-65dB(0dB=1volt/μbar RMS SPL)
Linearity error	≤10％
Battery type	Removable rechargeable lithium battery
Power supply voltage	DC12V
Battery operating time	General use>3 hours at 25℃
Charging method	Double-bay charger
Charging type	AC adapter
Weight	1.13kg (including battery)
Dimensions	260x135x136mm
Operation temperature	-20°C~55°C
Storage temperature	-40°C~70°C
Humidity (operating and storage)	≤95%, non-condensing
Packaging level	IP54
Analysis software	Windows 7 and above, secondary analysis, infrared detection report and other functions

SC600 Datasheet : Download

1. What is the HKDQTECH SC600?
A multifunction handheld inspection camera that combines thermal imaging with AA and TEV partial discharge detection.

2. What is the thermal resolution?
640 × 512 pixels for clear, high-resolution thermal images.

3. What is AA (Air Acoustic) detection?
AA detects airborne ultrasonic signals caused by partial discharge, gas leaks, or electrical faults.

4. What is TEV (Transient Earth Voltage) detection?
TEV detects electromagnetic pulses generated by internal partial discharge in metal-clad switchgear.

5. Why combine thermal imaging with AA and TEV?
It enables faster and more reliable fault diagnosis by confirming both heat and partial discharge.

6. What equipment can it inspect?
Switchgear, transformers, power cables, substations, motors, and other high-voltage equipment.

7. Can it detect partial discharge before equipment fails?
Yes, AA and TEV help identify insulation defects at an early stage.

8. What is the temperature measurement range?
Standard: -20°C to 410°C, with optional ranges up to 2000°C.

9. How accurate is the temperature measurement?
±2°C or ±2% of the reading.

10. Does it have a visible-light camera?
Yes, it includes a built-in 5 MP digital camera with LED light.
