SC300-B Handheld Thermal Camera
In stock

SC300-B Handheld Thermal Camera

SKU : HKSC300B
MAKE : HKDQTECH
MODEL : SC300-B
AVAILABILITY : IN STOCK
Hkdqtech
SAR 13,500.00 - SAR 13,500.00
SAR 13,500.00
SAR 13,500.00 - SAR 13,500.00
SAR 13,500.00
(Including VAT)

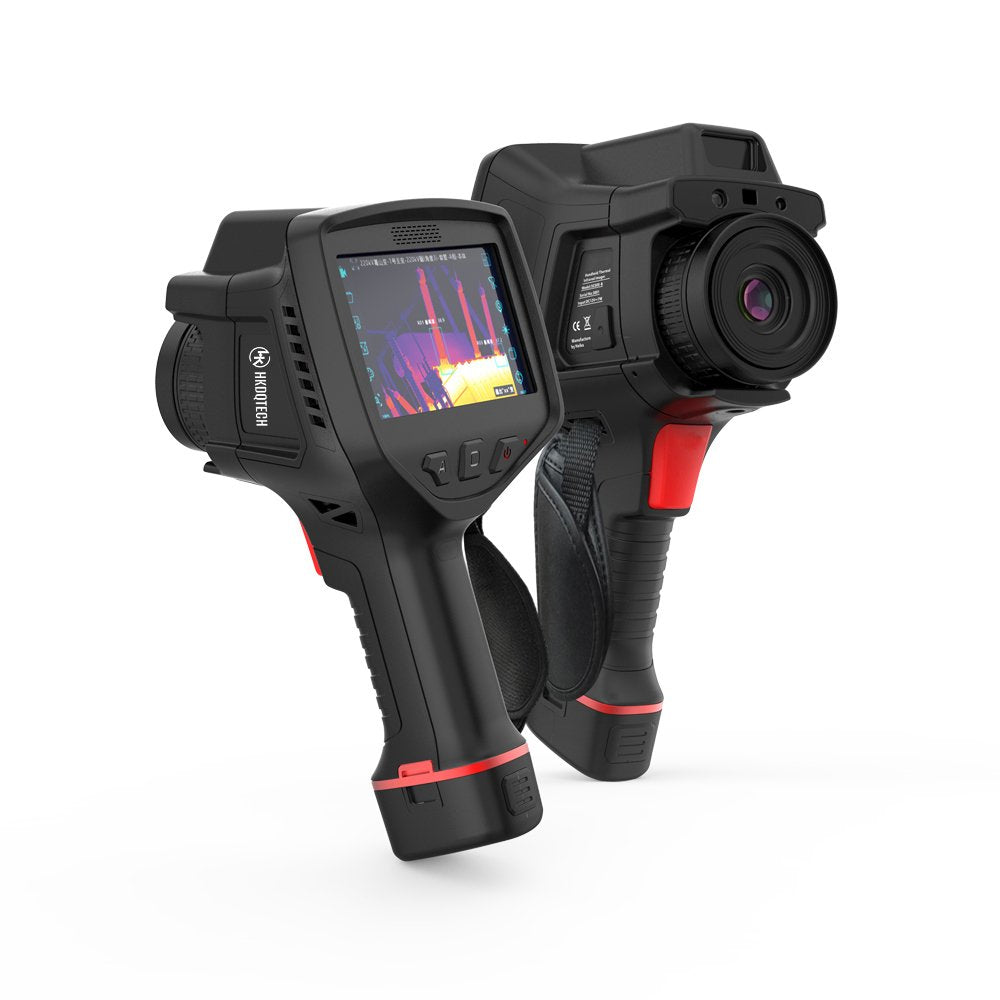

SC300-B Handheld Thermal Camera


HKDQTECH SC300-B Handheld Infrared Thermal Imager is a professional handheld thermal imaging camera designed for industrial temperature inspection, electrical maintenance, equipment diagnostics, and preventive maintenance applications. It combines high-resolution infrared imaging, accurate temperature measurement, and advanced analysis functions for detecting heat anomalies quickly and efficiently.

The SC300-B features an uncooled FPA infrared detector with 384 × 288 IR resolution and high thermal sensitivity of <40 mK, providing clear thermal images and accurate detection of temperature differences. It supports multiple interchangeable lenses and offers manual, electric, and automatic focusing options for flexible inspection requirements.

 Features

  • High Thermal Resolution
  • 3 focus options- Manual/electric/automatic
  • Accuracy: ±3.6°F or ±2%
  • <40mK thermal sensitivity with 24° lens
  • IP54 protection

  • Multiple-lenses Available

MODEL

SC300-B

Detector type

Uncooled FPA, Amorphous silicon or VOX material

IR Resolution

384x288

Thermal Sensitivity/NETD

＜40mK（@30℃）

Spectral Range

7.5~14μm

Standard lens

24°

Optional lens

48 °, 12 °, 6 °, etc

Spatial resolution (IFOV)

1.30mrad (24° lens); 2.26mrad (48° lens); 0.68mrad (12° lens); 0.34mrad (6 ° lens)

Focus

Manual/Automatic/Electric

Minimum focal distance

0.15m (24° lens); 0.15m (48° lens); 0.5m (12° lens); 1m (6° lens)

Display

4.3"/5" Sunshine Visible Display Screen,480x272/800x480

Camera recognition

Automatic recognition after replacing the lens

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300°C~+650°C/+300°C~+2,000°C/other ranges (high temperature range)

Temperature measurement accuracy

±2℃ or ±2% of readings

Digital camera

Built-in 500W pixel digital camera with LED light

Laser pointer

Support

Laser ranging

40 m

Laser alignment

Automatically display the position on the infrared image

Bluetooth

Support Bluetooth headset playback

WIFI

Support,support preview SD card pictures through WIFI

4G (optional)

Transmit real-time images to mobile phones via 4G, view cloud images

Temperature measurement settings

10 points, 10 boxes, 5 lines at the same time, including maximum/minimum/average values

Full screen maximum/minimum temperature

Support, automatically capture the highest/lowest temperature of the full screen

Digital zoom

1×, 2×, 4×, 8×

Radiance correction

Automatic, based on input values of emissivity

Storage method

32G high-speed SD card

Infrared image format

.jpg (including full temperature data)/.png (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 or full-radiation infrared video


Video output

HDMI

Video output interface

Micro HDMI interface

Battery type

Removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use>3 hours at 25℃

Charging method

Double-bay charger or car charger

Charging type

AC adapter, car charger

Operation temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

Operation temperature

-20°C~55°C


Analysis software

Windows 7 and above, secondary analysis, infrared detection report and other functions

SC-B Series Datasheet : Download

1. What is the HKDQTECH SC300-B?
A professional handheld thermal camera for industrial and predictive maintenance inspections.

2. What is the infrared resolution?
384 × 288 pixels.

3. What is the thermal sensitivity (NETD)?
Less than 40 mK (@30°C).

4. What temperature range does it measure?
-20°C to 150°C and 0°C to 410°C standard, with optional ranges up to 2000°C.

5. How accurate is the temperature measurement?
±2°C or ±2% of the reading.

6. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera with LED light.

7. Does it support image and video recording?
Yes, it records thermal images and H.264 infrared videos.

8. Does it support Wi-Fi and Bluetooth?
Yes, it supports Wi-Fi and Bluetooth connectivity.

SC300-B Handheld Thermal Camera


HKDQTECH SC300-B Handheld Infrared Thermal Imager is a professional handheld thermal imaging camera designed for industrial temperature inspection, electrical maintenance, equipment diagnostics, and preventive maintenance applications. It combines high-resolution infrared imaging, accurate temperature measurement, and advanced analysis functions for detecting heat anomalies quickly and efficiently.

The SC300-B features an uncooled FPA infrared detector with 384 × 288 IR resolution and high thermal sensitivity of <40 mK, providing clear thermal images and accurate detection of temperature differences. It supports multiple interchangeable lenses and offers manual, electric, and automatic focusing options for flexible inspection requirements.

 Features

  • High Thermal Resolution
  • 3 focus options- Manual/electric/automatic
  • Accuracy: ±3.6°F or ±2%
  • <40mK thermal sensitivity with 24° lens
  • IP54 protection

  • Multiple-lenses Available

MODEL

SC300-B

Detector type

Uncooled FPA, Amorphous silicon or VOX material

IR Resolution

384x288

Thermal Sensitivity/NETD

＜40mK（@30℃）

Spectral Range

7.5~14μm

Standard lens

24°

Optional lens

48 °, 12 °, 6 °, etc

Spatial resolution (IFOV)

1.30mrad (24° lens); 2.26mrad (48° lens); 0.68mrad (12° lens); 0.34mrad (6 ° lens)

Focus

Manual/Automatic/Electric

Minimum focal distance

0.15m (24° lens); 0.15m (48° lens); 0.5m (12° lens); 1m (6° lens)

Display

4.3"/5" Sunshine Visible Display Screen,480x272/800x480

Camera recognition

Automatic recognition after replacing the lens

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300°C~+650°C/+300°C~+2,000°C/other ranges (high temperature range)

Temperature measurement accuracy

±2℃ or ±2% of readings

Digital camera

Built-in 500W pixel digital camera with LED light

Laser pointer

Support

Laser ranging

40 m

Laser alignment

Automatically display the position on the infrared image

Bluetooth

Support Bluetooth headset playback

WIFI

Support,support preview SD card pictures through WIFI

4G (optional)

Transmit real-time images to mobile phones via 4G, view cloud images

Temperature measurement settings

10 points, 10 boxes, 5 lines at the same time, including maximum/minimum/average values

Full screen maximum/minimum temperature

Support, automatically capture the highest/lowest temperature of the full screen

Digital zoom

1×, 2×, 4×, 8×

Radiance correction

Automatic, based on input values of emissivity

Storage method

32G high-speed SD card

Infrared image format

.jpg (including full temperature data)/.png (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 or full-radiation infrared video


Video output

HDMI

Video output interface

Micro HDMI interface

Battery type

Removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use>3 hours at 25℃

Charging method

Double-bay charger or car charger

Charging type

AC adapter, car charger

Operation temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

Operation temperature

-20°C~55°C


Analysis software

Windows 7 and above, secondary analysis, infrared detection report and other functions

SC-B Series Datasheet : Download

1. What is the HKDQTECH SC300-B?
A professional handheld thermal camera for industrial and predictive maintenance inspections.

2. What is the infrared resolution?
384 × 288 pixels.

3. What is the thermal sensitivity (NETD)?
Less than 40 mK (@30°C).

4. What temperature range does it measure?
-20°C to 150°C and 0°C to 410°C standard, with optional ranges up to 2000°C.

5. How accurate is the temperature measurement?
±2°C or ±2% of the reading.

6. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera with LED light.

7. Does it support image and video recording?
Yes, it records thermal images and H.264 infrared videos.

8. Does it support Wi-Fi and Bluetooth?
Yes, it supports Wi-Fi and Bluetooth connectivity.
