Portable Pipe Inspection Camera System PICS374060
In stock

Portable Pipe Inspection Camera System PICS374060

SKU : ST374060
MAKE : STELLAR INSTRUMENT
MODEL : PICS374060
AVAILABILITY : IN STOCK
Stellar Instruments
SAR 13,900.00 - SAR 13,900.00
SAR 13,900.00
SAR 13,900.00 - SAR 13,900.00
SAR 13,900.00
(Including VAT)

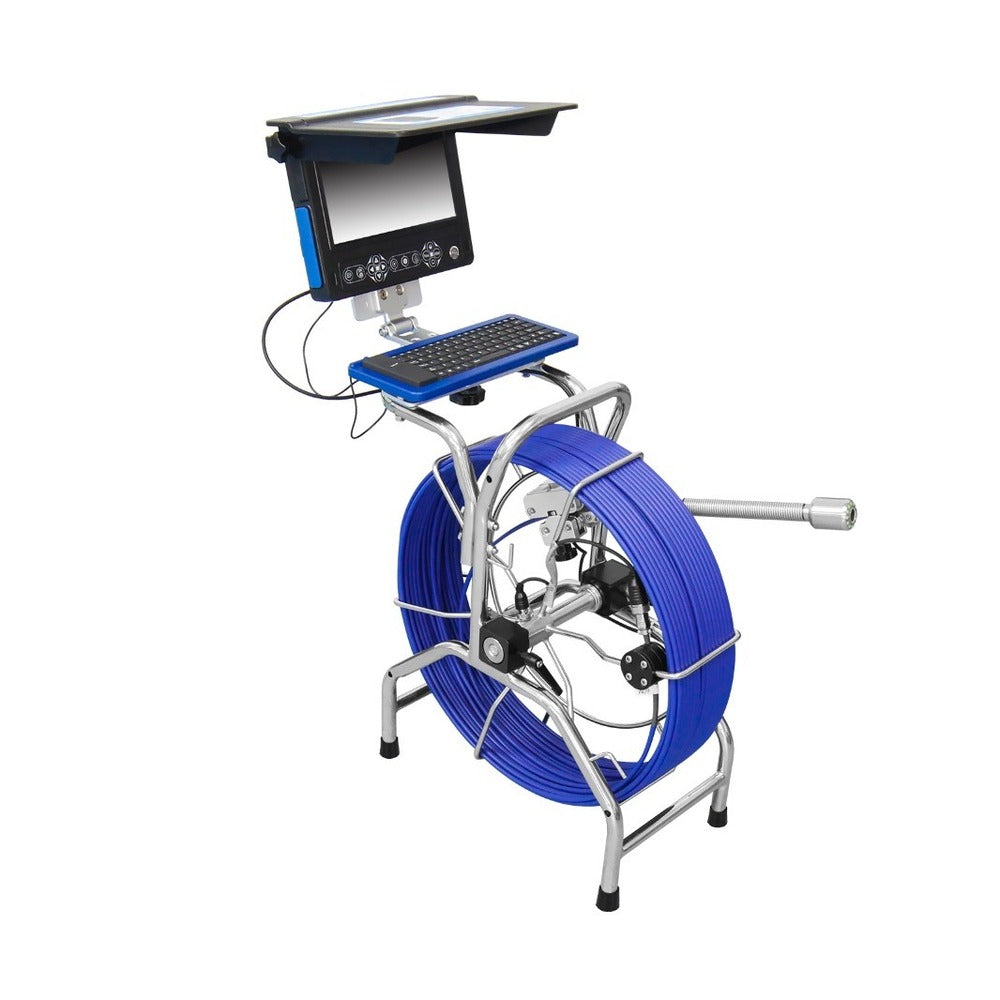

Portable Pipe Inspection Camera System PICS374060

The Stellar PICS374060 Pipe Inspection Camera System is a portable inspection solution designed for checking pipelines, drains, and ducts. It features a 10.1-inch HD display, Ø38 mm IP68 self-leveling camera head, and a 60 m fiberglass push-rod cable, providing clear video inspection in hard-to-reach pipe systems. The system includes 12 high-intensity LED lights and a rechargeable battery, making it ideal for plumbing, municipal, and industrial pipe inspection applications.

Features:

• Ø38 mm self-leveling IP68 waterproof camera head
• 10.1" HD IPS LCD monitor
• 60 m fiberglass push-rod inspection cable
• 12 high-intensity adjustable LED lights
• 1.3 MP CMOS HD camera sensor
• 6000 mAh rechargeable Li-ion battery (6+ hours working time)

Model

PICS373030

Camera Diameter

23 mm

Camera Type

Self-leveling waterproof camera

Camera Resolution

1 MP

Viewing Angle

90°

Waterproof Rating

IP68

LED Lights

12 High-intensity LEDs

Monitor Size

10.1 inch HD LCD

Monitor Resolution

1280 × 720

Zoom

8× Digital Zoom

Cable Length

30 m Fiberglass Push Cable

Cable Diameter

6.5 mm

Recording Format

Video & Audio (AVI)

Storage

USB / Memory Device (16 GB standard)

Sonde Transmitter

512 Hz

Battery

6000 mAh Li-ion Rechargeable

Pipe Diameter Range

DN20 – DN200

Operating Temperature

−20°C to 50°C

Weight

Approx. 9 kg

PICS374060 Datasheet : Download

1. What is the maximum inspection length of this camera system?

The system comes with a 60-meter fiberglass push-rod cable, allowing inspection of long pipelines and drainage systems.

2. Is the camera head waterproof?

Yes, the camera head has an IP68 waterproof rating, making it suitable for wet environments and submerged pipe inspections.

3. Can the device record inspection videos?

Yes, the system supports HD video and audio recording, which can be stored on a USB storage device.

4. What type of pipes can be inspected with this camera?

It is suitable for sewer pipes, drainage systems, plumbing pipelines, ducts, and industrial pipelines.

5. How long does the battery operate on a single charge?

The built-in 6000 mAh rechargeable Li-ion battery provides more than 6 hours of continuous operation.

6. Does the camera maintain correct image orientation during inspection?

Yes, the self-leveling camera head automatically keeps the image upright, making inspections easier to view and analyze.
