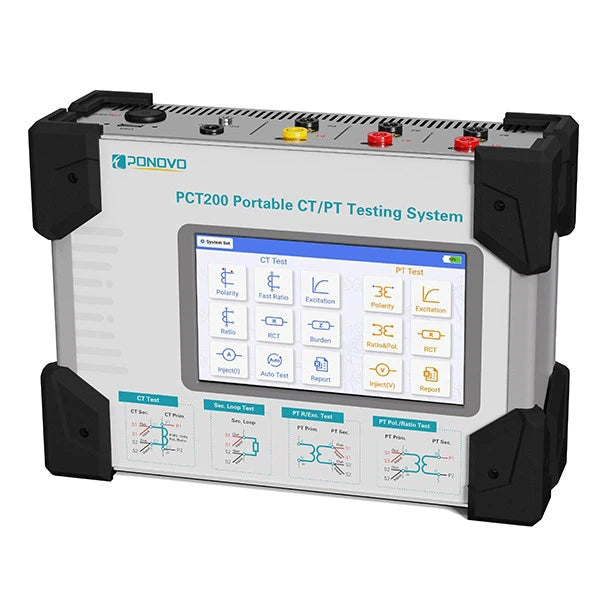

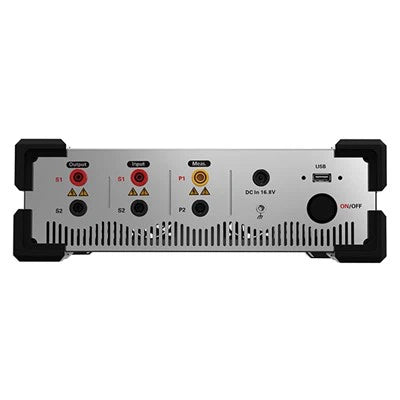

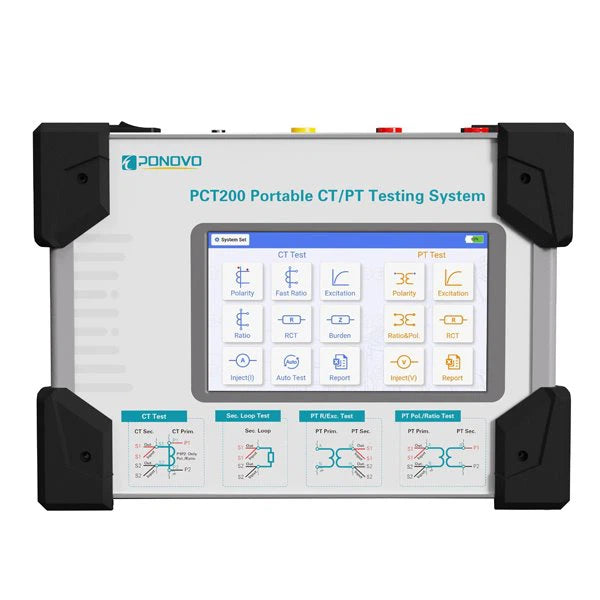

Portable CT/PT Analyser PCT200AX
SKU : POPCT2
MAKE : PONOVO
MODEL : PCT200AX
AVAILABILITY : IN STOCK
Portable CT/PT Analyser PCT200AX
PCT200 Portable CT/PT Testing System is a test equipment specially designed for current transformer and voltage transformer characteristic tests. PCT200 Portable series has two models, the standard PCT200X and the higher accuracy PCT200AX. Each model has 2 optional power supply type-external power supply type (PCT200X, PCT200AX) and large-capacity lithium battery supply type (PCT200X-B, PCT200AX-B). With built-in testing software in its local 7inch touch screen, all test items can be completed automatically after pressing the Run key and generating Excel and PDF reports.Excel reports. The test tool
Product Features
automatically after pressing the Run key and generating Excel and PDF reports. The test set can finalize various testing functions and support IEC, IEEE and IS standards. It suits the testing required in research institutes, labs, manufacturers, power utilities, power supply and debugging companies, etc.
Specification | PCT200AX |
Model | PCT200AX |
Application | Test M/P/TP type CT and PT |
Power Supply Type | External power supply |
Output Voltage | 0–130 V |
Output Current | 0–5 Arms (15 A peak) |
Output Power | 0–500 VA |
CT Ratio Test Range | 1:1–50,000:1 / 5:5–50,000:5 |
CT Ratio Test Accuracy | ±0.02% Typical; ±0.05% Guaranteed |
Maximum Knee-Point Voltage | 45 kV |
Phase Displacement Accuracy | 1 min Typical; 2 min Guaranteed |
Phase Displacement Resolution | 0.01 min |
Winding Resistance Range | 0.01–1000 Ω |
Winding Resistance Accuracy | 0.02% rdg + 0.03% rd; 0.05% rdg + 0.05% rd guaranteed |
Winding Resistance Resolution | 1 mΩ |
Turn Ratio Accuracy | 0.05% Typical; 0.1% Guaranteed |
Turn Ratio Resolution | 0.0001 |
Temperature Compensation | −20 °C to +120 °C |
CT Tests | Burden, ALF, FS, Kr, Ts, Ls, excitation, polarity, ratio, composite error, demagnetization, etc. |
PT Tests | Ratio, polarity, excitation, winding resistance, knee point and voltage injection |
Supported CT Types | M/P/TP/PS/PX/PXR, bushing and GIS type CT |
Standards | IEC 60044-1/6, IEC 61869-2, ANSI/IEEE C57.13, IS 2705 |
Display | 7-inch built-in touch screen |
Reports | Excel, Word and PDF |
Remote Control | Mobile phone and tablet support |
Local Storage | More than 100,000 test reports |
Dimensions | 290 × 210 × 85 mm |
Weight | Approx. 4 kg |
