Multi-Functional Relay Test System

Name: Multi-Functional Relay Test System
Brand: Kocos
SKU: KORC4
Availability: InStock

SKU : KORC4

MAKE : KOCOS

MODEL : ARTES RC4

AVAILABILITY : IN STOCK

Quantity

Description

Specification

Data sheets

Reviews

FAQs

Multi-Functional Relay Test System

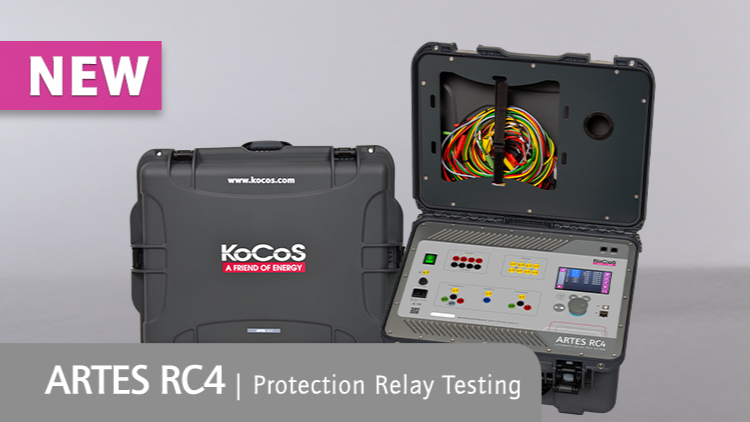

ARTES RC4 is the robust and universal solution for testing protection relays. Packed in a handy, extremely robust and resistant hard shell case, the versatile test system is also ideally suited for challenging outdoor use, for example in the sector of renewable energies.

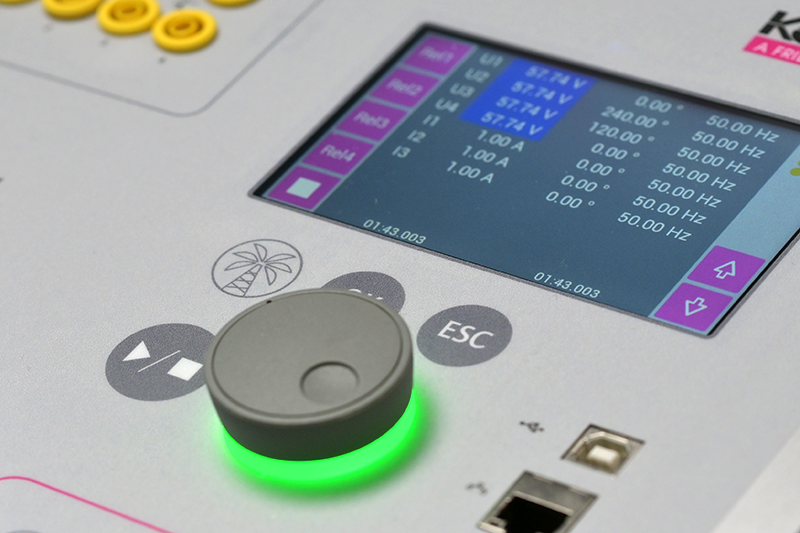

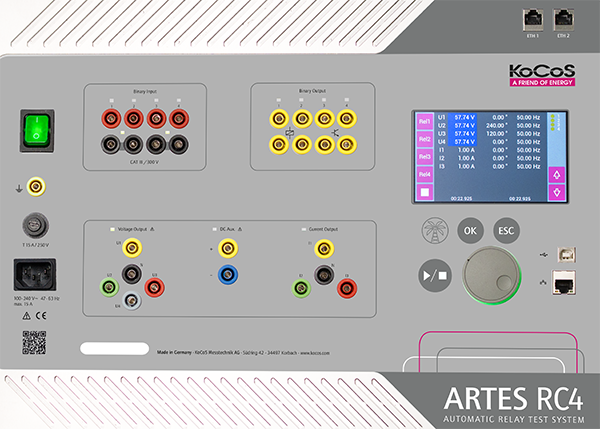

ARTES RC4 makes light work of highly complex test tasks. 4 voltage and 3 current outputs and the built-in control panel allow three-phase tests on static and digital relays also without external PC.

Specification	Details
Product	KOCOS ARTES RC3
Type	Portable Protection Relay Test Set
Current Outputs	3 Independent Outputs
Voltage Outputs	4 Independent Outputs
Relay Testing	Single & Three Phase
Applications	Commissioning, Maintenance, Calibration
Communication	USB, Ethernet, Digital I/O
Software	ARTES Test Software
Report Generation	Automatic Test Reports
Portability	Compact, Field Portable
Power Supply	AC Mains

1. What is the KOCOS ARTES RC3?
A portable relay test system for testing protection relays and control devices.

2. What is it used for?
It is used for commissioning, maintenance, and calibration of protection relays.

3. How many current outputs does it have?
It provides 3 independent current outputs.

4. How many voltage outputs does it have?
It provides 4 independent voltage outputs.

5. Can it test three-phase relays?
Yes, it supports both single-phase and three-phase relay testing.

6. Does it support IEC 61850 testing?
Yes, IEC 61850 support is available with the appropriate configuration.

7. Is the unit portable?
Yes, it is compact and designed for field use.

8. Which relay types can it test?
Overcurrent, distance, differential, frequency, voltage, and other protection relays.

9. Does it include test software?
Yes, it operates with ARTES testing software for automated and manual testing.

10. What communication interfaces are available?
Typically USB, Ethernet, and digital I/O interfaces.

11. Is it suitable for substation commissioning?
Yes, it is widely used for substation commissioning and maintenance.

12. Can test reports be generated?
Yes, the software allows automatic generation of detailed test reports.

Description

Multi-Functional Relay Test System

ARTES RC4 is the robust and universal solution for testing protection relays. Packed in a handy, extremely robust and resistant hard shell case, the versatile test system is also ideally suited for challenging outdoor use, for example in the sector of renewable energies.

ARTES RC4 makes light work of highly complex test tasks. 4 voltage and 3 current outputs and the built-in control panel allow three-phase tests on static and digital relays also without external PC.

Specification

Specification	Details
Product	KOCOS ARTES RC3
Type	Portable Protection Relay Test Set
Current Outputs	3 Independent Outputs
Voltage Outputs	4 Independent Outputs
Relay Testing	Single & Three Phase
Applications	Commissioning, Maintenance, Calibration
Communication	USB, Ethernet, Digital I/O
Software	ARTES Test Software
Report Generation	Automatic Test Reports
Portability	Compact, Field Portable
Power Supply	AC Mains
