Microtest Power Meter 7130
In stock

Microtest Power Meter 7130

SKU : MT7130
MAKE : MICROTEST
MODEL : 7130
AVAILABILITY : IN STOCK
Microtest
SAR 7,900.00 - SAR 7,900.00
SAR 7,900.00
SAR 7,900.00 - SAR 7,900.00
SAR 7,900.00
(Excluding VAT)

Microtest Power Meter 7130

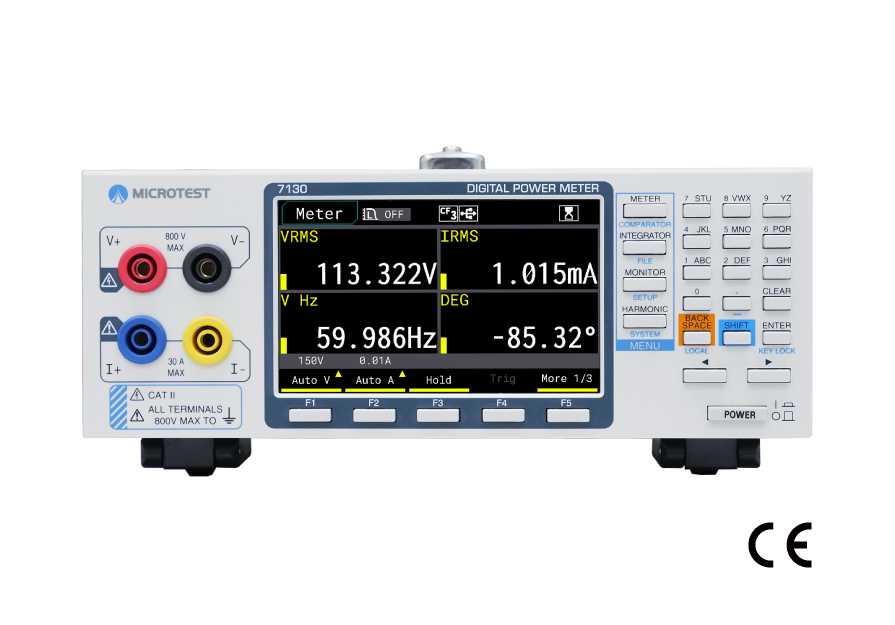

MICROTEST 7130 is designed for single-phase AC/DC power measurement, featuring a 0.2Hz–100kHz bandwidth, 500kSPS sampling rate, and ±0.05% accuracy in a compact design with a 4.3” TFT LCD. It supports 800V/30A direct input, 50th-order harmonic analysis, and simultaneous harmonic and integration measurements. The built-in graphical display and basic oscilloscope function allow real-time voltage and current waveform observation. USB Host enables direct waveform capture and data logging—no external oscilloscope needed. For standby power testing, it offers a 5mA range, 10μW resolution, and Meter mode displays 4, 8, or 16 parameters with real-time min/max tracking. Comparison mode provides PASS/FAIL evaluation, optimizing R&D, production, and quality control.

  • Ultra-High Measurement Accuracy ±0.05%
  • 50th-Order Harmonic Analysis
  • High-Speed 500kSPS Sampling Rate
  • Simultaneous AC+DC Measurement and Display
  • Rated Direct Input Voltage: 800V / Input Current: 30A
  • DC, 0.2Hz~100kHz Voltage/Current Measurement Bandwidth
  • 4.3” Color Multifunctional Digital & Graphical LCD Display
  • Supports voltage and current waveform analysis mode
  • Automatic Integration up to 10,000 Hours with Simultaneous Harmonic Analysis
  • Minimum Current Range of 5mA & Power Resolution of 10μW
  • Supports Comparison Mode with Upper/Lower Limit PASS/FAIL Judgment

Parameter

Specification

Model

7130

Instrument Type

Single-phase AC/DC Power Meter

Measurement

AC/DC Voltage, Current and Power

Power Accuracy

±0.05% basic accuracy

Bandwidth

DC, 0.2 Hz to 100 kHz

Direct Voltage Input

Up to 800 V

Direct Current Input

Up to 30 A

Minimum Current Range

5 mA

Power Resolution

10 μW

Sampling Rate

500 kSPS

Harmonic Analysis

Up to 50th order

Integration Measurement

Up to 10,000 hours

Display

4.3-inch TFT Color LCD

Display Functions

Numerical, Waveform and Graphical Displays

PASS/FAIL Function

Upper and lower limit comparison

Applications

R&D, production testing, quality control, consumer electronics, industrial and power equipment

7140 Datasheet : Download

1. What is the MICROTEST 7130?
It is a high-precision single-phase AC/DC power meter for electrical power measurement and testing.

2. What is the measurement accuracy?
The basic power measurement accuracy is ±0.05%.

3. What is the measurement bandwidth?
It supports a bandwidth from DC, 0.2 Hz to 100 kHz.

4. What is the sampling rate?
The sampling rate is 500 kSPS.

5. What is the maximum direct input?
It supports up to 800 V voltage and 30 A current direct input.

6. Does the 7130 support harmonic analysis?
Yes, it supports 50th-order harmonic analysis.

7. Can it measure standby power?
Yes. It provides a minimum 5 mA current range and 10 μW power resolution.

8. What type of display does it have?
It features a 4.3-inch color multifunctional TFT LCD with digital and graphical displays.

9. Can it display voltage and current waveforms?
Yes, it supports real-time voltage and current waveform analysis.

10. Does it support PASS/FAIL testing?
Yes, the comparison mode allows upper and lower limits to be set for PASS/FAIL judgment.

11. Can it perform integration measurements?
Yes, automatic integration can be performed for up to 10,000 hours, including simultaneous harmonic analysis.

12. Where is the MICROTEST 7130 used?
It is suitable for R&D, production testing, quality control, consumer electronics, industrial equipment, and power-related applications.
