Microtest Impulse Winding Tester - 7750
SKU : MT7750
MAKE : MICROTEST
MODEL : 7750
AVAILABILITY : IN STOCK

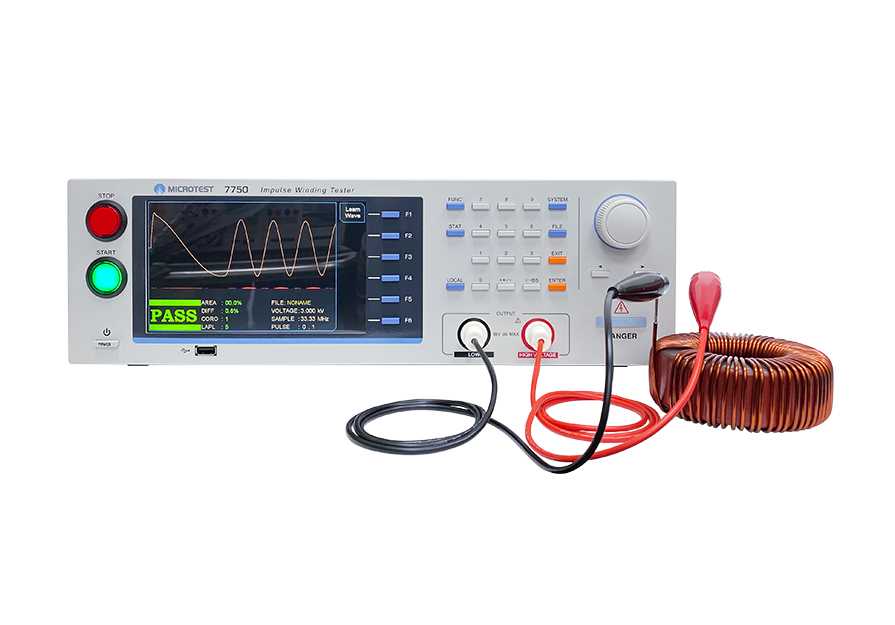

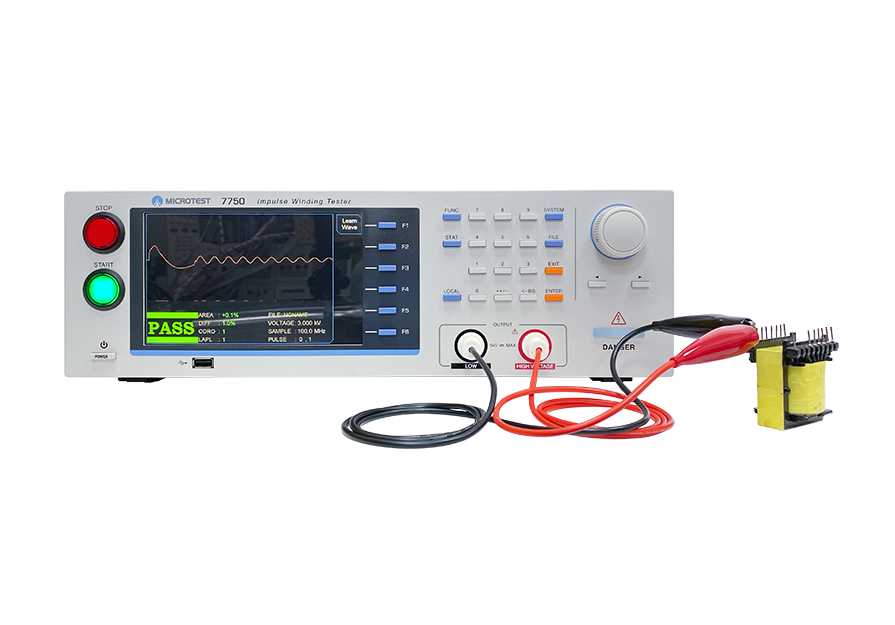

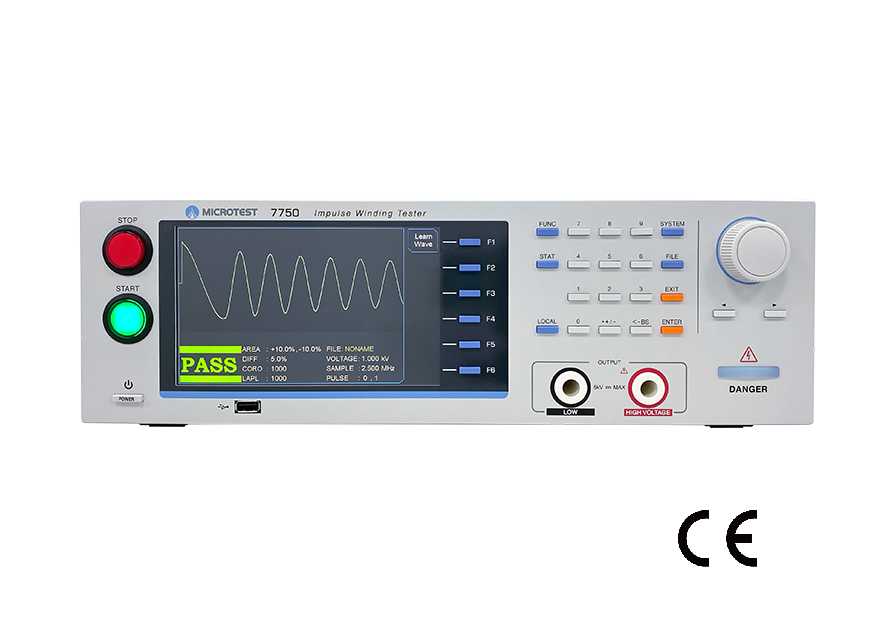

Microtest Impulse Winding Tester - 7750
MICROTEST 7750 Series is an advanced Impulse Winding Tester with a faster color display screen. It provides pulse voltage outputs of 1200V/5200V/10000V and utilizes high-speed sampling technology at 200MHz/9 bits. It offers various comparison modes such as total area, area difference, corona count, jitter count, second-order differentiation, and waveform comparison. With a testing speed of up to 10 times per second, it is ideal for high-speed production lines.
For testing small components, the optional 7750-1S tester comes with the FX-IM0001 four-wire SMD component testing fixture. It features voltage compensation to minimize voltage errors caused by wiring and equivalent inductance, ensuring accurate quality control for products with small inductance.
- Lowest Inductance (≥0.1μH)
- High voltage calibration
- programmable impulse voltage
- 200MHz/9bit High Impulse Test Sampling Rate
- Total Area Comparison
- Differential Area Comparison
- Corona Comparison
- LAPLACIAN Comparison
- Voltage Compensation Function
Specification | Details |
Model | 7750 Series |
Product Type | Impulse Winding Tester |
Application | Testing motors, transformers, coils, inductors and relays |
Maximum Test Voltage | Up to 10 kV (model dependent) |
Minimum Inductance | Approx. 0.1 μH |
Maximum Impulse Number | Up to 32 |
Test Speed | Up to 10 tests/second |
Sampling Rate | Up to 200 MHz |
Waveform Comparison | Area, Differential, Corona, LAPLACIAN, Waveform and Flat |
Voltage Compensation | Available |
Breakdown Voltage Analysis | Available |
Impulse Voltage | Programmable |
Waveform Storage | Built-in storage available |

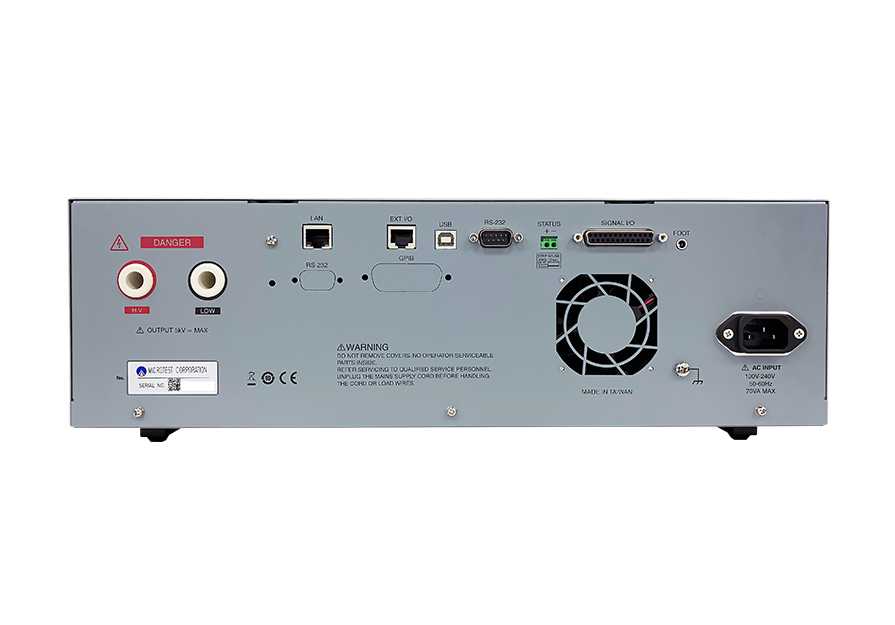

Interfaces | USB, RS-232, LAN and Signal I/O |
