LCR Meter Microtest 6630 Series
SKU : MT6630
MAKE : MICROTEST
MODEL : 6630
AVAILABILITY : IN STOCK

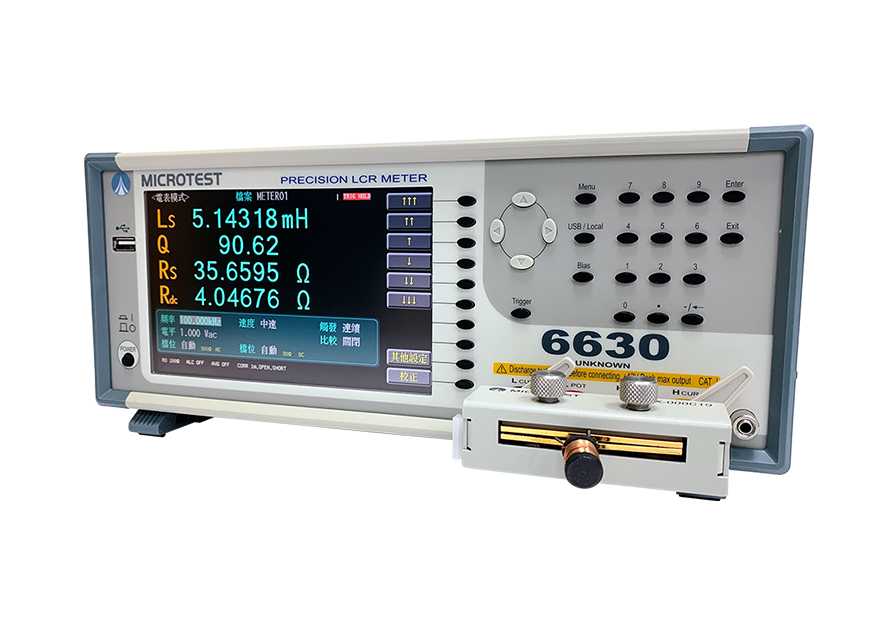

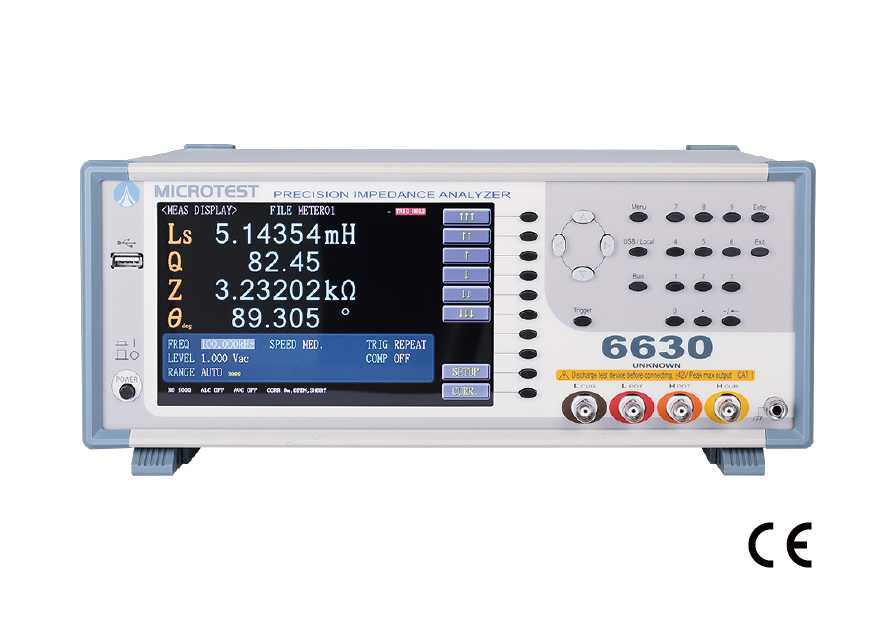

LCR Meter Microtest 6630 Series
MICROTEST 6630 LCR Tester provides a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability). With a measurement speed of up to 3mS, it is an excellent choice for automated inductor testing. It supports LAN/USB Host/USB Device/RS-232 communication interfaces, making it compatible with automation equipment or human-machine interfaces (PLC).
- Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
- Basic accuracy up to ±0.05%
- Automatic Level Control (ALC)
- Output impedance 25Ω/100Ω, switchable
- Support meter mode and list mode
- Ultra-high measuring speed < 3ms
- Open circuit/short circuit/load correction function
- Comparator function
- BIN classification function
- Built-in the Permeability-μr
- Built-in the Dielectric constant-εr
Specification | Details |
Models | 6630-1 / 6630-3 / 6630-5 / 6630-10 / 6630-20 / 6630-30 / 6630-50 |
Frequency Range | 10 Hz–1 / 3 / 5 / 10 / 20 / 30 / 50 MHz, model dependent |
Frequency Resolution | 100 mHz |
Frequency Accuracy | ±0.01% |
Basic Measurement Accuracy | ±0.05% typical |
AC Test Voltage | 10 mV–2 Vrms (100 Ω); 10 mV–1 Vrms (25 Ω) |
AC Test Current | 100 µA–20 mArms (100 Ω); 200 µA–40 mArms (25 Ω) |
Voltage Resolution | 1 mV |
Current Resolution | 10 µA |
DC Test Voltage | 10 mV–2 V |
DC Bias | ±12 V built-in |
ALC | Automatic Level Control |
Output Impedance | 25 Ω / 100 Ω, switchable |
Fastest Measurement Time | <3 ms |
Measurement Parameters | Z, Y, θ, X, R, G, B, L, D, Q, DCR, C, ESR, εr and µr |
Impedance |Z| Range | 0.000 mΩ–9999.99 MΩ |
R / X Range | ±0.000 mΩ–9999.99 MΩ |
Admittance |Y| Range | 0.00000 µS–999.999 kS |
G / B Range | ±0.00000 µS–999.999 kS |
Capacitance Range | 0.00000 pF–9999.99 F |
Inductance Range | 0.00 nH–9999.99 kH |
Dissipation Factor D | 0.00000–9999.99 |
Quality Factor Q | 0.00–9999.99 |
DCR Range | 0.00 mΩ–99.9999 MΩ |
Relative Permittivity εr | 0–100000 |
Relative Permeability µr | 0–100000 |
Measurement Modes | Meter Mode / List Mode |
List Mode | 50 groups; up to 15 steps per group |
Comparator | ABS / ΔABS / Δ% |
BIN Classification | Up to 9 grades |
Correction | Open / Short / Load |
Cable Compensation | 0 / 0.5 / 1 / 2 m |
Internal Storage | 100 LCR setting files and 50 List Mode setting files |

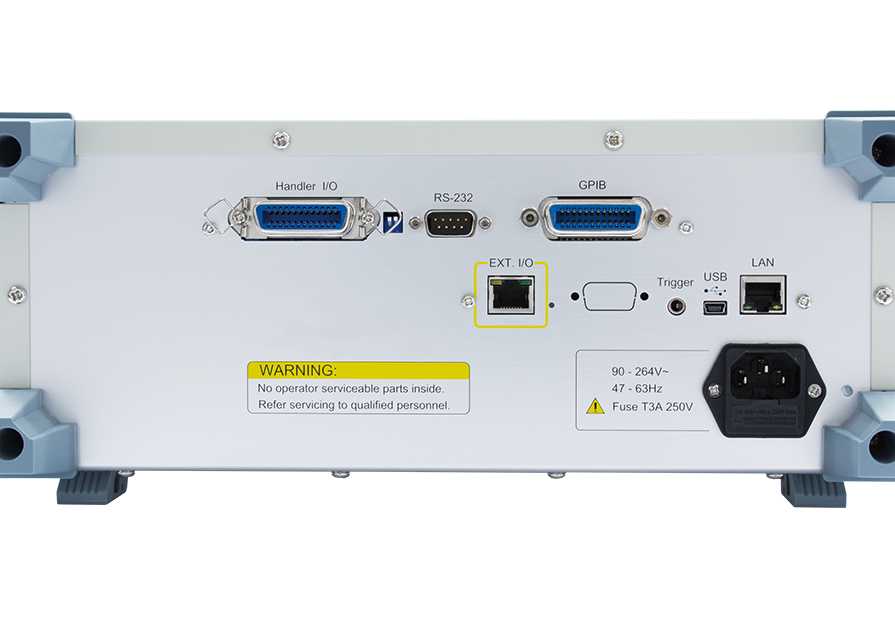

Interfaces | RS-232 / Handler / LAN / USB Host / USB Device / optional GPIB |
Trigger Modes | Auto / Manual / RS-232 / Handler / GPIB |
Display | 7-inch TFT color LCD, 800 × 480 |
Power Supply | 100–240 VAC, 50–60 Hz |
Power Consumption | 30 VA |
Operating Environment | 10–40°C; 20–80% RH |
Dimensions | Approx. 358 × 148 × 343 mm (W × H × D) |
Weight | Approx. 3.95 kg |
Applications | Capacitors, inductors, resistors, transformers, resonators, semiconductor components, dielectric and magnetic materials |
