Impedance Calibrator Meatest M550

SKU : MEM550
MAKE : MEATEST
MODEL : M550
AVAILABILITY : IN STOCK
Meatest

Impedance Calibrator Meatest M550

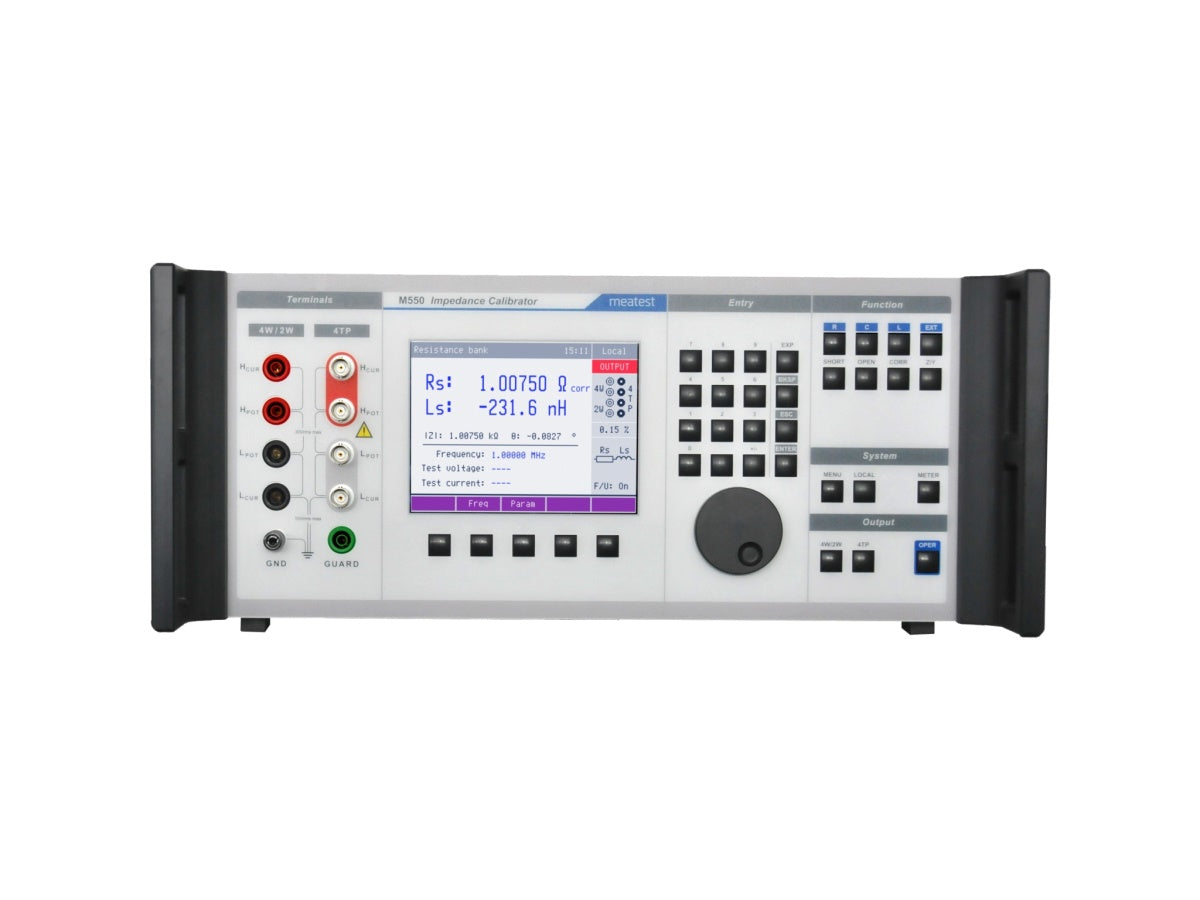

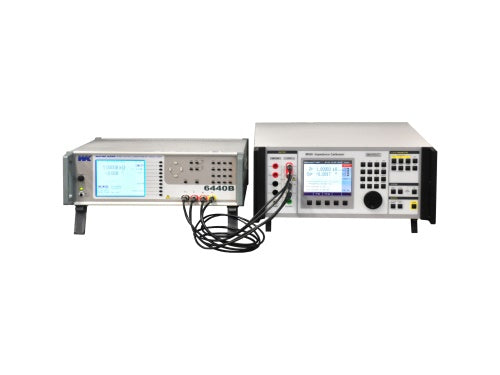

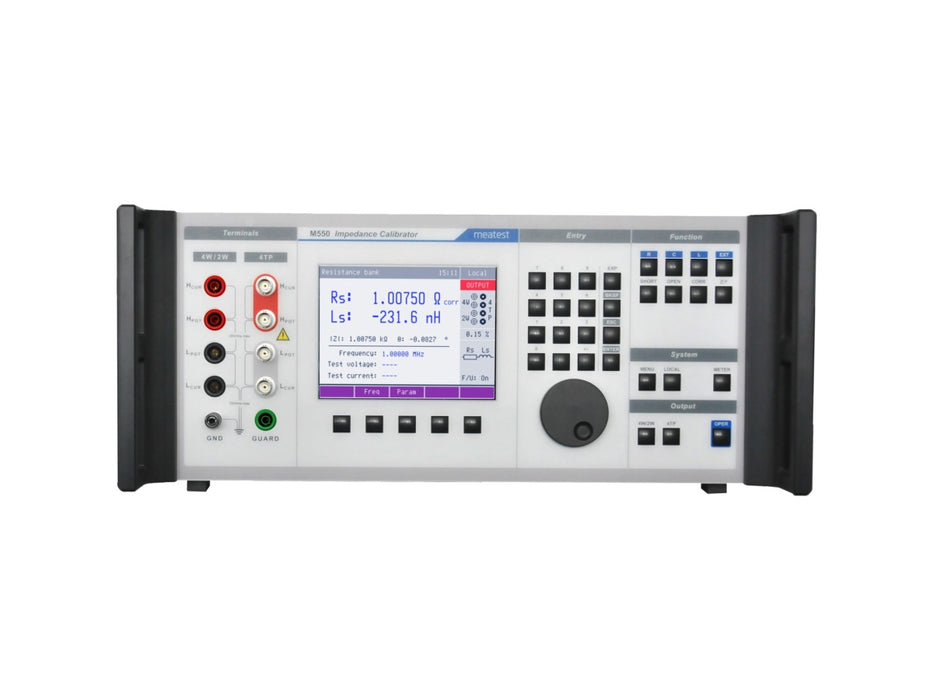

Model M550 Impedance calibrator is designed for calibration of LCR meters.
The calibrator contains stable and temperature independent resistance
standards, partial capacitance standards and partial inductance standards
simulated by RC T-type passive network. Open and Short reference positions
are available to eliminate influence of test cables.


Calibration values of both complex parameters of partial standards are
displayed on large LCD screen in preselected pairs of parameters as well as
voltage, current and frequency readouts from built-in test signal meter.


Philosophy of M550 is based on remote control and automated calibration.
For this reason, the calibrator is equipped with RS-232 and GPIB interfaces and
supported in CALIBER/WinQbase automated calibration software.

Model

MEATEST M550

Application

Impedance/LCR Meter Calibration

Frequency Range

20 Hz to 1 MHz

Resistance Range

100 mΩ to 100 MΩ

Capacitance Range

10 pF to 100 µF

Inductance Range

10 µH to 10 H

Connection Types

4TP, 4-Wire, 2-Wire

Interfaces

GPIB (IEEE-488), RS-232

Built-in Meter

Voltage, Current, Frequency

Compensation

OPEN / SHORT

Automation

Supports CALIBER / WinQbase

M550 Datasheet : Download

1. What is the MEATEST M550?
The M550 is a precision impedance calibrator designed for calibrating LCR meters and impedance analyzers.

2. What parameters can the M550 calibrate?
It calibrates resistance, capacitance, and inductance over a wide measurement range.

3. What is the frequency range?
The M550 supports calibration frequencies from 20 Hz to 1 MHz.

4. What resistance range does it cover?
From 100 mΩ to 100 MΩ.

5. What capacitance range does it cover?
From 10 pF to 100 µF.

6. What inductance range does it cover?
From 10 µH to 10 H (simulated inductance).

7. Which connection methods are supported?
It supports 4TP (Four-Terminal Pair), 4-wire (4W), and 2-wire (2W) connections.

8. Does it support automated calibration?
Yes. It supports automated calibration via GPIB (IEEE-488) and RS-232 interfaces.

9. Does the M550 include a built-in signal meter?
Yes. It measures the test signal's voltage, current, and frequency during calibration.

10. Is OPEN/SHORT compensation available?
Yes. The M550 provides OPEN and SHORT reference positions to compensate for test lead effects.

11. Can it be used with calibration software?
Yes. It is compatible with MEATEST CALIBER/WinQbase automation software.

12. What applications is the M550 best suited for?
It is ideal for calibration laboratories, service centers, electronics manufacturers, and quality assurance departments requiring accurate LCR meter calibration.

Impedance Calibrator Meatest M550

Model M550 Impedance calibrator is designed for calibration of LCR meters.
The calibrator contains stable and temperature independent resistance
standards, partial capacitance standards and partial inductance standards
simulated by RC T-type passive network. Open and Short reference positions
are available to eliminate influence of test cables.


Calibration values of both complex parameters of partial standards are
displayed on large LCD screen in preselected pairs of parameters as well as
voltage, current and frequency readouts from built-in test signal meter.


Philosophy of M550 is based on remote control and automated calibration.
For this reason, the calibrator is equipped with RS-232 and GPIB interfaces and
supported in CALIBER/WinQbase automated calibration software.

Model

MEATEST M550

Application

Impedance/LCR Meter Calibration

Frequency Range

20 Hz to 1 MHz

Resistance Range

100 mΩ to 100 MΩ

Capacitance Range

10 pF to 100 µF

Inductance Range

10 µH to 10 H

Connection Types

4TP, 4-Wire, 2-Wire

Interfaces

GPIB (IEEE-488), RS-232

Built-in Meter

Voltage, Current, Frequency

Compensation

OPEN / SHORT

Automation

Supports CALIBER / WinQbase

M550 Datasheet : Download

1. What is the MEATEST M550?
The M550 is a precision impedance calibrator designed for calibrating LCR meters and impedance analyzers.

2. What parameters can the M550 calibrate?
It calibrates resistance, capacitance, and inductance over a wide measurement range.

3. What is the frequency range?
The M550 supports calibration frequencies from 20 Hz to 1 MHz.

4. What resistance range does it cover?
From 100 mΩ to 100 MΩ.

5. What capacitance range does it cover?
From 10 pF to 100 µF.

6. What inductance range does it cover?
From 10 µH to 10 H (simulated inductance).

7. Which connection methods are supported?
It supports 4TP (Four-Terminal Pair), 4-wire (4W), and 2-wire (2W) connections.

8. Does it support automated calibration?
Yes. It supports automated calibration via GPIB (IEEE-488) and RS-232 interfaces.

9. Does the M550 include a built-in signal meter?
Yes. It measures the test signal's voltage, current, and frequency during calibration.

10. Is OPEN/SHORT compensation available?
Yes. The M550 provides OPEN and SHORT reference positions to compensate for test lead effects.

11. Can it be used with calibration software?
Yes. It is compatible with MEATEST CALIBER/WinQbase automation software.

12. What applications is the M550 best suited for?
It is ideal for calibration laboratories, service centers, electronics manufacturers, and quality assurance departments requiring accurate LCR meter calibration.
