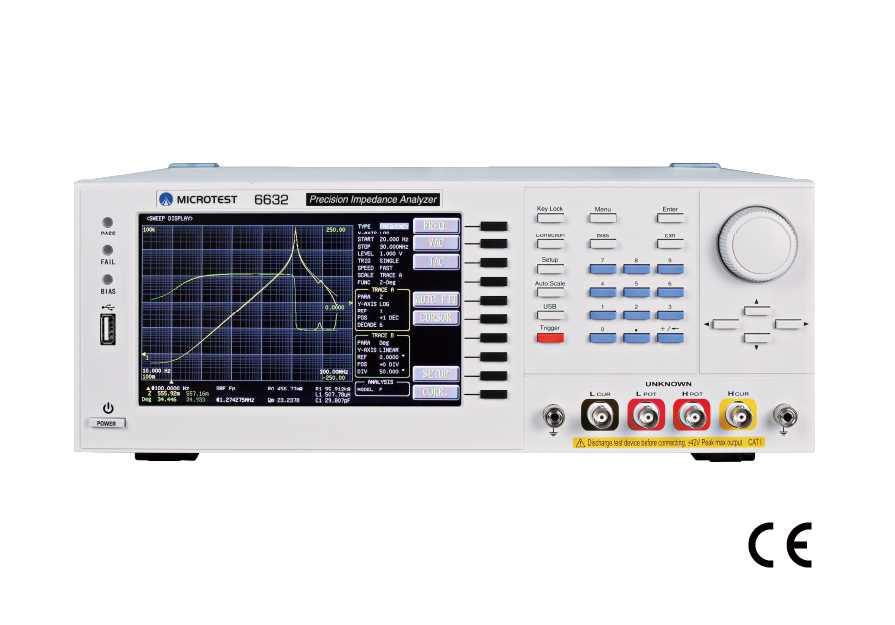

Impedance Analyzer Microtest 6632S Series
SKU : MT6632
MAKE : MICROTEST
MODEL : 6632S
AVAILABILITY : IN STOCK
Impedance Analyzer Microtest 6632S Series
MICROTEST 6632S Impedance Analyzer offers a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. Support Equivalent Circuit Analysis function to analyze the impact of parasitic components on impedance. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (Susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability). It supports both Meter mode and Sweep Analysis mode, allowing measurement results to be displayed in numeric or graphical formats. It supports LAN/USB Host/USB Device/RS-232/GPIB(Optional) communication interfaces, making it compatible with automation equipment or human-machine interfaces (PLC).
- Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
- Basic accuracy up to ±0.08% (typical ±0.05% )
- Equivalent Circuit Analysis
- Automatic Level Control (ALC)
- Output impedance 25Ω/100Ω, switchable
- Support meter mode and list mode, sweep mode
- Built-in DC Bias voltage ±12V
- Ultra-high measuring speed < 3ms
- Open circuit/short circuit/load correction function
- Comparator function
- BIN classification function
- Built-in the Permeability-μr
- Built-in the Dielectric constant-εr
Specification | Details |
Models | 6632-1S / 3S / 5S / 10S / 20S / 30S / 50S |
Frequency Range | 10 Hz–1 / 3 / 5 / 10 / 20 / 30 / 50 MHz, model dependent |
Frequency Resolution | 100 mHz, 6-digit frequency setting |
Frequency Output Accuracy | ±0.01% |
Basic Measurement Accuracy | ±0.08% (typical ±0.05%) |
AC Test Voltage | 10 mV–2 Vrms (100 Ω); up to 1 Vrms under 25 Ω / higher-frequency conditions |
Voltage Resolution | 1 mV |
AC Test Current | 100 µA–20 mArms (100 Ω); 200 µA–40 mArms (25 Ω) |
Current Resolution | 10 µA |
DCR Test Voltage | 1 V DC, 40 mA maximum |
ALC | Automatic Level Control |
Output Impedance | 25 Ω / 100 Ω, switchable |
Fastest Test Time | <3 ms |
Measurement Modes | Meter, List, Sweep and Equivalent Circuit Analysis |
Equivalent Circuit Analysis | Supported on S Series |
Impedance |Z| Range | 0.000 mΩ–9999.99 MΩ |
R / X Range | ±0.000 mΩ–9999.99 MΩ |
Admittance |Y| Range | 0.00000 µS–999.999 kS |
G / B Range | ±0.00000 µS–999.999 kS |
Capacitance Cs / Cp | 0.00000 pF–9999.99 F |
Inductance Ls / Lp | ±0.00 nH–9999.99 kH |
Dissipation Factor D | 0.00000–9999.99 |
Quality Factor Q | 0.00–9999.99 |
DCR Range | 0.00 mΩ–99.9999 MΩ |
Relative Permittivity εr | 0–100000 |
Relative Permeability µr | 0–100000 |
Built-in DC Bias | −12 V to +12 V |
Cable Compensation | 0 / 0.5 / 1 / 2 m |
Correction | Open / Short / Load |
List Mode | 50 groups; up to 15 steps per group |
BIN Classification | Up to 9 bins |
Comparator | ABS / ΔABS / Δ% / OFF |
Internal Storage | 100 LCR settings and 50 List Mode settings |
Interfaces | RS-232, Handler, LAN, USB Host, USB Device; optional GPIB |
Trigger Modes | Auto / Manual / RS-232 / Handler / GPIB |
Display | 7-inch TFT color LCD, 800 × 480 |
Power Supply | 100–240 VAC, 50–60 Hz |
Power Consumption | 30 VA |
Operating Environment | 10–40°C; 20–80% RH |
Dimensions | Approx. 358 × 148 × 343 mm |
Weight | Approx. 3.95 kg |
Applications | Capacitors, inductors, resistors, transformers, resonators, materials and semiconductor components |
