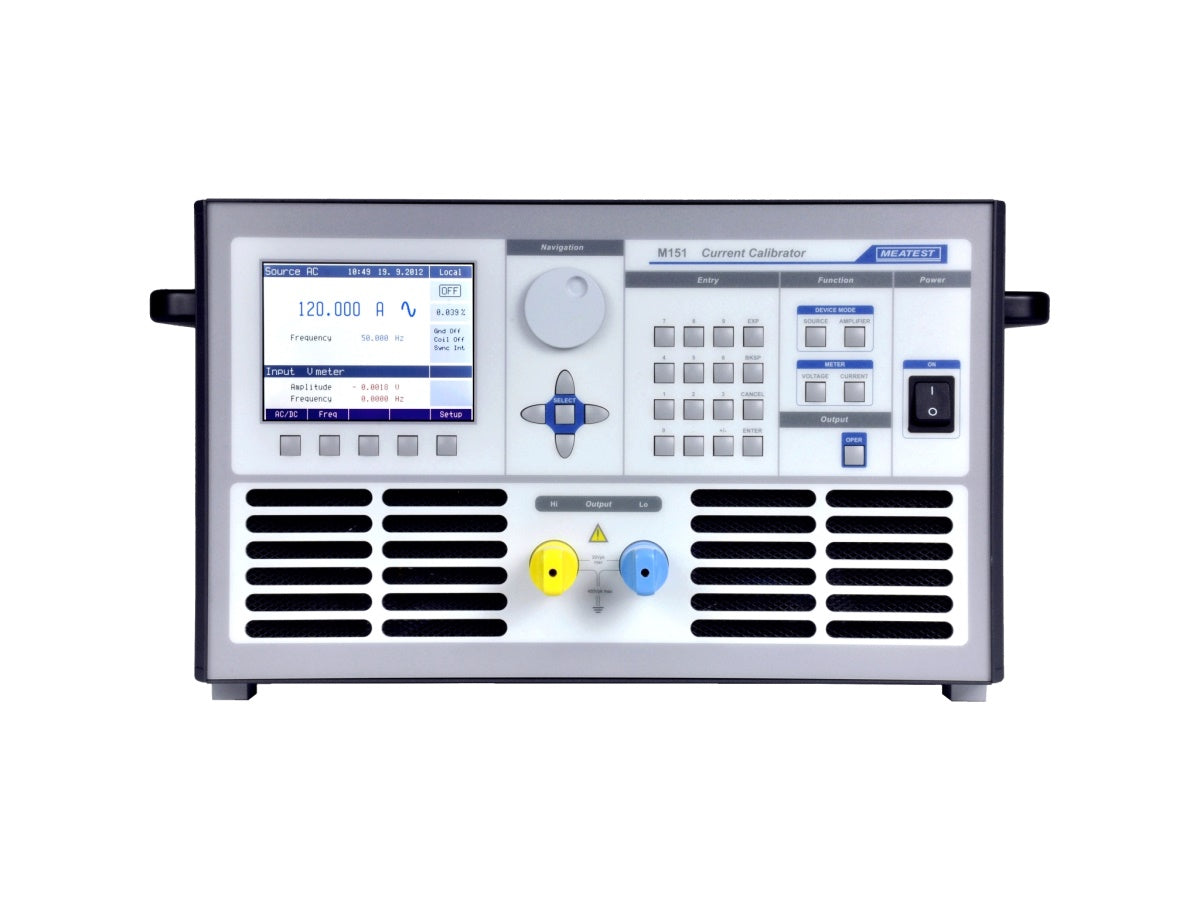

High Current Calibrator Meatest M151

AC / DC current 8 mA…120 A, 15–1000 Hz
Total accuracy 275–400 ppm in all ranges
Floating output up to 450 VPK, compliance voltage 8 VPK

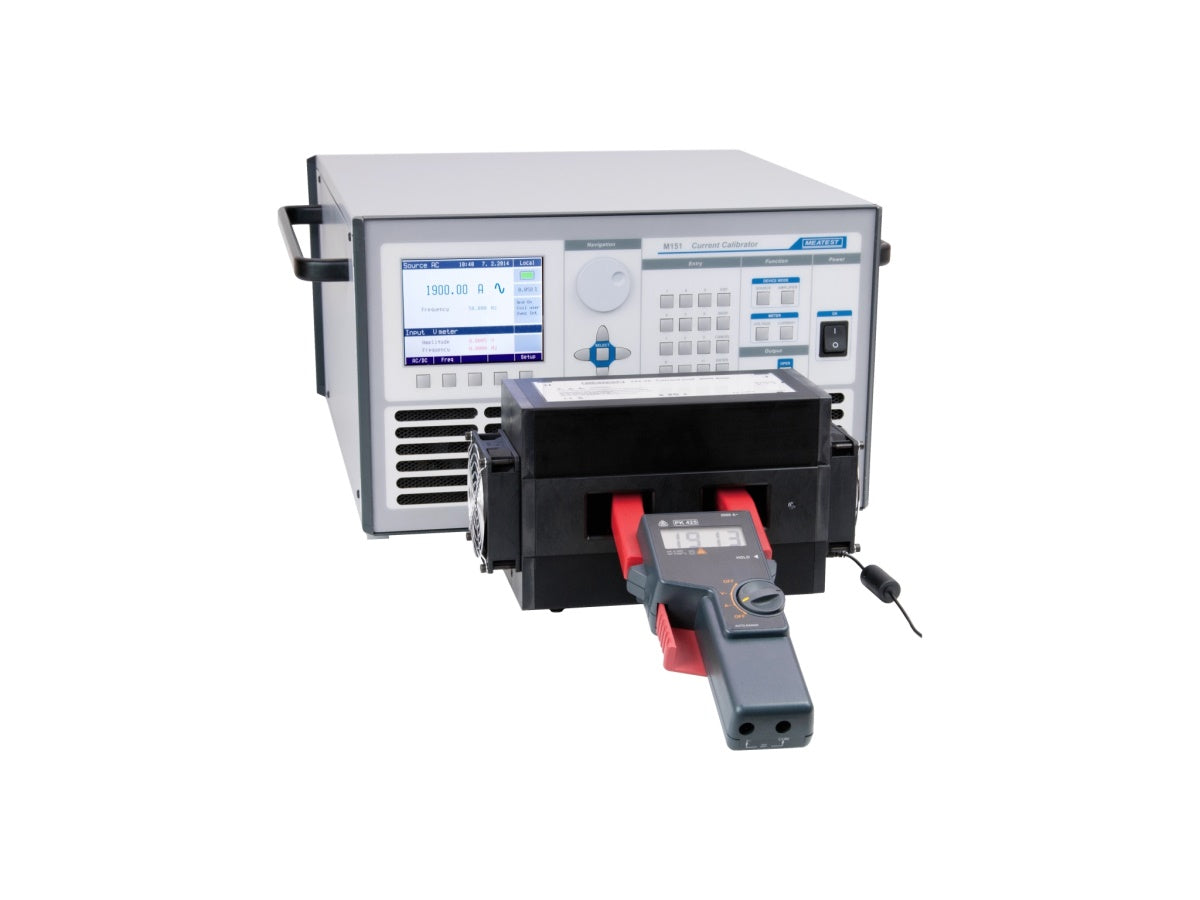

Calibration of clamp meters up to 3000 A
Real and simulated transconductance amplifier
GPIB and RS-232 come as standard

Model M151 is a stable high current calibrator up to 120 A. Basic accuracy is 275 ppm. Instrument can be controlled via RS232 or GPIB interface. Calibrator can work in a simulated amplifier mode to increase current ranges of any multifunction calibrator. It is suitable for power meter’s calibration because M151 can be synchronized with the input signal not only in amplitude but also in frequency and phase. Current terminals are isolated up to 450 VPK against case (protective earth). M151 is a sophisticated instrument with its own recalibration procedure. The procedure enables to adjust any deviation directly from the front panel. Calibrator is designed for checking parameters of amp meters. With current coil it can be used for calibration of clamp meters.

Specification	Details
Output Current	0 to 120 A AC/DC (direct), up to 3000 A with optional 151-25 Current Coil
Current Type	AC and DC
AC Frequency Range	15 Hz to 1 kHz
Built-in Measurement	AC/DC Voltage, AC/DC Current, Frequency
Interfaces	RS-232, GPIB (IEEE-488)
Applications	Calibration of ammeters, clamp meters, current transducers, power meters
Key Features	High accuracy, wide current range, automation support

What is the MEATEST M151?
The MEATEST M151 is a precision AC/DC high-current calibrator designed for calibrating current measuring instruments.

What is the maximum output current?
It provides up to 120 A AC/DC directly and up to 3000 A with the optional 151-25 Current Coil.

What instruments can it calibrate?
It calibrates ammeters, clamp meters, current transducers, and power meters.

Does it support both AC and DC current?
Yes, it generates highly accurate AC and DC current outputs.

What is the AC frequency range?
The AC output frequency range is 15 Hz to 1 kHz.

Does it include a built-in multimeter?
Yes, it features a built-in multimeter for measuring AC/DC voltage, AC/DC current, and frequency.

Can it be remotely controlled?
Yes, it supports remote operation via RS-232 and GPIB (IEEE-488) interfaces.

What are the key applications?
It is ideal for calibrating electrical current measuring instruments, clamp meters, and current transducers.

Can it calibrate high-current clamp meters?
Yes, with the optional 151-25 Current Coil, it can calibrate clamp meters up to 3000 A.

What are the main advantages?
High accuracy, wide current range, built-in measurement functions, and automation support for calibration laboratories.
