Handheld Densitometer Quantum Dynamics Digit X - XOGRAPH
In stock

Handheld Densitometer Quantum Dynamics Digit X - XOGRAPH

SKU : DXQDY
MAKE : QUANTUM
MODEL : DIGIT X - XOGRAPH
AVAILABILITY : IN STOCK
Quantum Dynamics Ltd
SAR 5,100.00 - SAR 5,100.00
SAR 5,100.00
SAR 5,100.00 - SAR 5,100.00
SAR 5,100.00
(Including VAT)

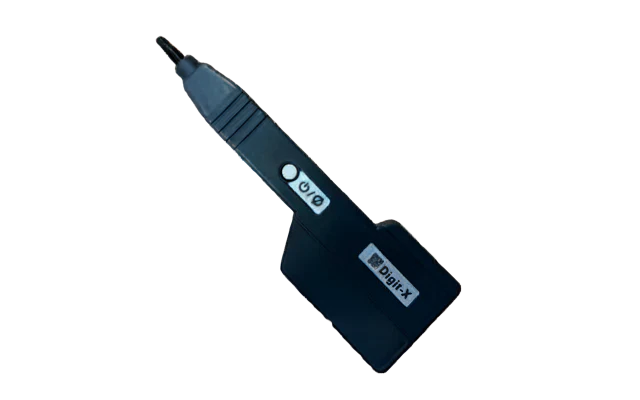

Handheld Densitometer Quantum Dynamics Digit X - XOGRAPH

Portable battery-powered transmission X-ray Densitometer. Simplifies X-ray film quality assurance. Digit-X is a unique hand-held transmission X-ray Densitometer combining ease of use with high accuracy and repeatability. The fine fibre-optic probe allows small areas of film to be measured accurately with readings being displayed on the large clear LCD panel to 2 decimal places.

Digit-X can reliably read film densities up to a maximum of 4.0D. Simply place your QA film strip on a uniform light source, press the fibre optic tip of Digit-X evenly against the region of the film strip to be measured and push gently forwards. The film density will be shown on the LED display. A conveniently placed zero button resets the display between readings.

Battery power means that the Digit-X is not limited in its areas of operation and it’s so light – just 175 g – that carrying it from place to place is extremely practical. Battery usage is minimal and a low battery warning indicator is provided on the digital display.

Digit-X is supplied ready to use complete with a 9V PP3 battery* in a handy carry case. . (NB: due to air transport regulations, a battery will not be supplied for export and must be sourced locally).

DIGIT X Datasheet : Download

1. What is the Digit-X Handheld Densitometer?

A portable instrument used to measure the optical density of radiographic X-ray films.

2. What is the measurement range?

It measures optical densities from 0.00 to 4.00 D.

3. Is the Digit-X battery operated?

Yes, it operates on a 9V battery for portable use.

4. How accurate is the display?

The digital display provides readings with 0.01 density (2 decimal places) resolution.

5. Does it require calibration?

Yes, annual recalibration is recommended, and it is supplied with a calibration certificate.

6. How do I take a measurement?

Zero the instrument on the light viewer, then place the probe on the film to obtain the density reading.

7. Is it suitable for field use?

Yes, its lightweight (approximately 175 g) and portable design makes it ideal for field inspections.

8. Does it indicate low battery?

Yes, a low battery indicator appears on the display when replacement is needed.

9. What is included with the device?

The kit includes the densitometer, carrying case, user manual, and calibration certificate.

10. What applications is it used for?

It is widely used for radiographic film quality control (NDT) and X-ray film density measurements.

Handheld Densitometer Quantum Dynamics Digit X - XOGRAPH

Portable battery-powered transmission X-ray Densitometer. Simplifies X-ray film quality assurance. Digit-X is a unique hand-held transmission X-ray Densitometer combining ease of use with high accuracy and repeatability. The fine fibre-optic probe allows small areas of film to be measured accurately with readings being displayed on the large clear LCD panel to 2 decimal places.

Digit-X can reliably read film densities up to a maximum of 4.0D. Simply place your QA film strip on a uniform light source, press the fibre optic tip of Digit-X evenly against the region of the film strip to be measured and push gently forwards. The film density will be shown on the LED display. A conveniently placed zero button resets the display between readings.

Battery power means that the Digit-X is not limited in its areas of operation and it’s so light – just 175 g – that carrying it from place to place is extremely practical. Battery usage is minimal and a low battery warning indicator is provided on the digital display.

Digit-X is supplied ready to use complete with a 9V PP3 battery* in a handy carry case. . (NB: due to air transport regulations, a battery will not be supplied for export and must be sourced locally).

DIGIT X Datasheet : Download

1. What is the Digit-X Handheld Densitometer?

A portable instrument used to measure the optical density of radiographic X-ray films.

2. What is the measurement range?

It measures optical densities from 0.00 to 4.00 D.

3. Is the Digit-X battery operated?

Yes, it operates on a 9V battery for portable use.

4. How accurate is the display?

The digital display provides readings with 0.01 density (2 decimal places) resolution.

5. Does it require calibration?

Yes, annual recalibration is recommended, and it is supplied with a calibration certificate.

6. How do I take a measurement?

Zero the instrument on the light viewer, then place the probe on the film to obtain the density reading.

7. Is it suitable for field use?

Yes, its lightweight (approximately 175 g) and portable design makes it ideal for field inspections.

8. Does it indicate low battery?

Yes, a low battery indicator appears on the display when replacement is needed.

9. What is included with the device?

The kit includes the densitometer, carrying case, user manual, and calibration certificate.

10. What applications is it used for?

It is widely used for radiographic film quality control (NDT) and X-ray film density measurements.
