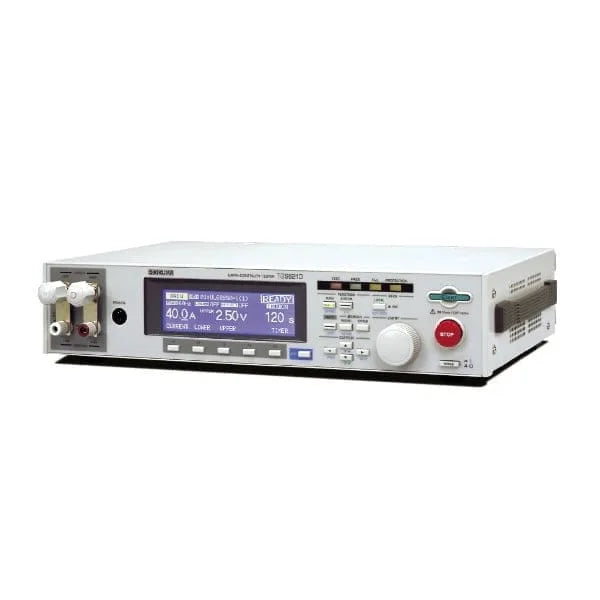

Ground Bond tester Kikusui TOS6210
In stock

Ground Bond tester Kikusui TOS6210

SKU : KITO62
MAKE : KIKUSUI
MODEL : TOS6210
AVAILABILITY : IN STOCK
Kikusui

Ground Bond tester Kikusui TOS6210

While inheriting the basic performance and functions of its predecessor (TOS6200), such as a constant current driving system that provides current waveforms with little skew and high measurement accuracy, the TOS6210 tester extends the maximum test current from 30 A to 60 A, which is demanded by the new standard. In addition, the tester also lets you judge the acceptability of the device under test based on the drop in voltage, as required in the standard.

  • Test current value: 6 A to 60 A AC / Resistance value: 0.001 Ω to 0.600 Ω
  • Voltage drop-based judgment function
  • Offset cancelling function
  • Stores 100 test conditions in memory
  • Incorporates test conditions into program
  • Contact check function
  • Equipped with standard GPIB and RS232C interfaces
  • Equipped with standard test lead (TL12-TOS)
Datasheet : Download

1. What is the KIKUSUI TOS6210?
A high-current Ground Bond Tester for protective earth and bonding continuity testing.

2. What is the test current range?
6 A to 62 A AC, with a maximum rated test current of 60 A under specified conditions.

3. What resistance range can it measure?
0.001 Ω to 0.600 Ω.

4. Can it perform voltage-drop testing?
Yes, it provides voltage-drop-based PASS/FAIL judgment.

5. Does it have an offset cancellation function?
Yes, for both voltage and resistance measurements.

6. How many test conditions can it store?
Up to 100 test conditions can be stored in memory.

7. What interfaces are available?
Standard GPIB and RS232C interfaces are provided.

8. What is the test time range?
0.3 to 999 seconds, with a timer ON/OFF function.

9. What power supply does it support?
85 to 250 V AC, 47 to 63 Hz.

10. What is the approximate weight?
Approximately 11 kg.

Ground Bond tester Kikusui TOS6210

While inheriting the basic performance and functions of its predecessor (TOS6200), such as a constant current driving system that provides current waveforms with little skew and high measurement accuracy, the TOS6210 tester extends the maximum test current from 30 A to 60 A, which is demanded by the new standard. In addition, the tester also lets you judge the acceptability of the device under test based on the drop in voltage, as required in the standard.

  • Test current value: 6 A to 60 A AC / Resistance value: 0.001 Ω to 0.600 Ω
  • Voltage drop-based judgment function
  • Offset cancelling function
  • Stores 100 test conditions in memory
  • Incorporates test conditions into program
  • Contact check function
  • Equipped with standard GPIB and RS232C interfaces
  • Equipped with standard test lead (TL12-TOS)
Datasheet : Download

1. What is the KIKUSUI TOS6210?
A high-current Ground Bond Tester for protective earth and bonding continuity testing.

2. What is the test current range?
6 A to 62 A AC, with a maximum rated test current of 60 A under specified conditions.

3. What resistance range can it measure?
0.001 Ω to 0.600 Ω.

4. Can it perform voltage-drop testing?
Yes, it provides voltage-drop-based PASS/FAIL judgment.

5. Does it have an offset cancellation function?
Yes, for both voltage and resistance measurements.

6. How many test conditions can it store?
Up to 100 test conditions can be stored in memory.

7. What interfaces are available?
Standard GPIB and RS232C interfaces are provided.

8. What is the test time range?
0.3 to 999 seconds, with a timer ON/OFF function.

9. What power supply does it support?
85 to 250 V AC, 47 to 63 Hz.

10. What is the approximate weight?
Approximately 11 kg.
