G1000 High performance thermal camera
In stock

G1000 High performance thermal camera

SKU : HKG1000
MAKE : HKDQTECH
MODEL : G1000
AVAILABILITY : IN STOCK
Hkdqtech
SAR 79,000.00 - SAR 79,000.00
SAR 79,000.00
SAR 79,000.00 - SAR 79,000.00
SAR 79,000.00
(Including VAT)

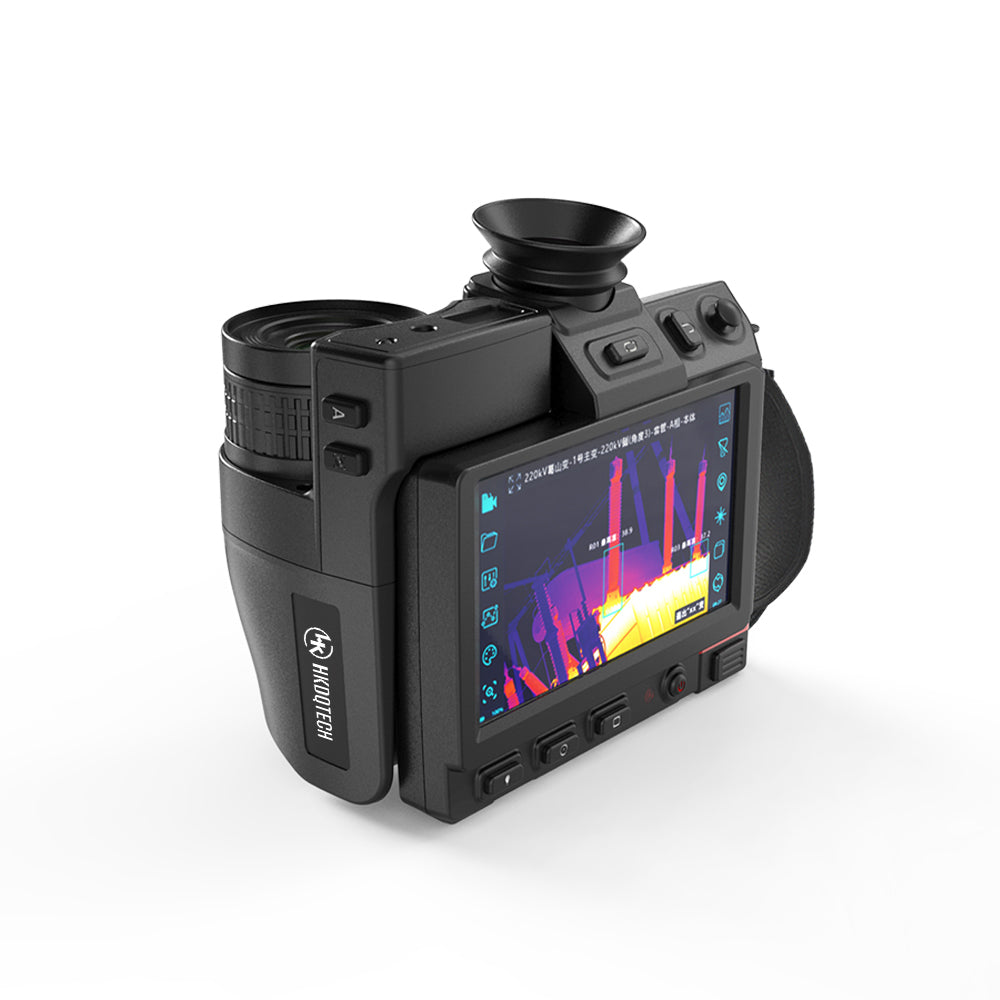

G1000 High performance thermal camera

The HKDQTECH G1000 High Performance Thermal Camera is a professional-grade handheld infrared thermal imaging camera designed for advanced temperature measurement, predictive maintenance, and industrial inspection applications. It features a high-resolution infrared detector, intelligent thermal analysis functions, and a rugged handheld design for accurate detection of heat-related issues in complex industrial environments.

The G1000 is equipped with a 1024 × 768 infrared resolution detector, providing detailed thermal images for identifying temperature differences, overheating components, and potential equipment failures. It is suitable for applications such as electrical systems, mechanical equipment, power generation, manufacturing, building inspection, and preventive maintenance.

Features:

  • High-resolution infrared imaging: 1024 × 768 IR detector for clear and detailed thermal images
  • High thermal sensitivity: Designed to detect small temperature variations for accurate fault identification
  • Multiple image modes: Infrared, visible light, picture-in-picture, image fusion, and IMIX display modes
  • Built-in visible camera: 5MP digital camera with LED light for combined visual and thermal inspection
  • Large sunlight-readable display: 5.8-inch screen with high visibility for outdoor and industrial environments
  • Advanced temperature analysis: Supports temperature points, areas, lines, maximum/minimum/average temperature analysis, and ΔT measurement
  • Laser pointer and ranging support: Helps accurate targeting during inspection
  • Wireless connectivity: Supports Wi-Fi and Bluetooth functions for data transfer and remote viewing options
  • Data recording: Supports thermal image storage, infrared video recording, voice annotation, and text annotation
  • Industrial protection: IP54 protection rating for field operation environments

MODEL

G1000

Detector type

Uncooled FPA，Amorphous silicon or VOX material

IR Resolution

1024x768

Thermal Sensitivity/NETD

≤50mK（@30℃）

Spectral Range

7.5~14μm

Standard lens

24°

Optional lens

50°, 14°, 7°, etc

Spatial resolution (IFOV)

0.48mrad (24° lens); 0.92mrad (50° lens); 0.24mrad (14° lens); 0.12mrad (7° lens)

Focus

Manual/Automatic/Electric

Minimum focal distance

0.15m (24° lens); 0.15m (48° lens); 0.5m (12° lens); 2m (6° lens)

Display

5.8" Sunshine Visible Display Screen, 1280x768

Camera recognition

Automatic recognition after replacing the lens

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300°C~+650°C/+300°C~+2,000°C/other ranges (high temperature range)

Temperature measurement accuracy

±2℃ or ±2% of readings

Viewfinder

Built in color 1024x768 pixel viewfinder

Digital camera

Built-in 500W pixel digital camera with LED light

Palette

10 color palettes

Touch screen

Capacitive touch screen

Image mode

Infrared, visible light, picture in picture, image fusion, IMIX

Super-resolution

Support, increase to 4 times the original image pixels

Laser pointer

Support

Laser ranging

40 m

Bluetooth

Support Bluetooth headset playback

WIFI

Support,support preview SD card pictures through WIFI

Temperature measurement settings

Support delta T, 10 points, 10 boxes, 5 lines at the same time, including maximum/minimum/average values

Full screen maximum/minimum temperature

Support, automatically capture the highest/lowest temperature of the full screen

Optical device transmission correction

Manual/automatic, based on signals from internal sensors

Radiance correction

Automatic, based on input values of emissivity

Storage method

32G high-speed SD card(extendable to 128G SD card)

Infrared image format

.jpg (including full temperature data)/.png (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 or full-radiation infrared video

Video output

HDMI

Video output interface

Micro HDMI interface

Battery type

Removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use>3 hours at 25℃

Charging method

Double-bay charger

Weight

1.5kg (including battery)

Dimensions

191x115x172mm

Operation temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

G Series Datasheet : Download

1. What is the HKDQTECH G1000?
A professional high-performance thermal camera for advanced industrial inspections and predictive maintenance.

2. What is the infrared resolution?
1024 × 768 pixels.

3. What is the thermal sensitivity (NETD)?
Less than 20 mK (@30°C, F#1.0).

4. What temperature range does it measure?
-40°C to 150°C, 100°C to 650°C, and up to 2200°C (high-temperature range).

5. How accurate is the temperature measurement?
±1°C or ±1% (from -40°C to 150°C); otherwise ±2°C or ±2% of the reading.

6. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera with LED light.

7. Does it support image and video recording?
Yes, it records thermal images, visible images, and H.264 infrared videos.

8. Does it support Wi-Fi and Bluetooth?
Yes, it supports Wi-Fi image transfer and Bluetooth headset connectivity.

G1000 High performance thermal camera

The HKDQTECH G1000 High Performance Thermal Camera is a professional-grade handheld infrared thermal imaging camera designed for advanced temperature measurement, predictive maintenance, and industrial inspection applications. It features a high-resolution infrared detector, intelligent thermal analysis functions, and a rugged handheld design for accurate detection of heat-related issues in complex industrial environments.

The G1000 is equipped with a 1024 × 768 infrared resolution detector, providing detailed thermal images for identifying temperature differences, overheating components, and potential equipment failures. It is suitable for applications such as electrical systems, mechanical equipment, power generation, manufacturing, building inspection, and preventive maintenance.

Features:

  • High-resolution infrared imaging: 1024 × 768 IR detector for clear and detailed thermal images
  • High thermal sensitivity: Designed to detect small temperature variations for accurate fault identification
  • Multiple image modes: Infrared, visible light, picture-in-picture, image fusion, and IMIX display modes
  • Built-in visible camera: 5MP digital camera with LED light for combined visual and thermal inspection
  • Large sunlight-readable display: 5.8-inch screen with high visibility for outdoor and industrial environments
  • Advanced temperature analysis: Supports temperature points, areas, lines, maximum/minimum/average temperature analysis, and ΔT measurement
  • Laser pointer and ranging support: Helps accurate targeting during inspection
  • Wireless connectivity: Supports Wi-Fi and Bluetooth functions for data transfer and remote viewing options
  • Data recording: Supports thermal image storage, infrared video recording, voice annotation, and text annotation
  • Industrial protection: IP54 protection rating for field operation environments

MODEL

G1000

Detector type

Uncooled FPA，Amorphous silicon or VOX material

IR Resolution

1024x768

Thermal Sensitivity/NETD

≤50mK（@30℃）

Spectral Range

7.5~14μm

Standard lens

24°

Optional lens

50°, 14°, 7°, etc

Spatial resolution (IFOV)

0.48mrad (24° lens); 0.92mrad (50° lens); 0.24mrad (14° lens); 0.12mrad (7° lens)

Focus

Manual/Automatic/Electric

Minimum focal distance

0.15m (24° lens); 0.15m (48° lens); 0.5m (12° lens); 2m (6° lens)

Display

5.8" Sunshine Visible Display Screen, 1280x768

Camera recognition

Automatic recognition after replacing the lens

Object temperature range

-20℃~+150℃ (low temperature range)/0℃~+410℃ (medium temperature range)

Optional temperature range

+300°C~+650°C/+300°C~+2,000°C/other ranges (high temperature range)

Temperature measurement accuracy

±2℃ or ±2% of readings

Viewfinder

Built in color 1024x768 pixel viewfinder

Digital camera

Built-in 500W pixel digital camera with LED light

Palette

10 color palettes

Touch screen

Capacitive touch screen

Image mode

Infrared, visible light, picture in picture, image fusion, IMIX

Super-resolution

Support, increase to 4 times the original image pixels

Laser pointer

Support

Laser ranging

40 m

Bluetooth

Support Bluetooth headset playback

WIFI

Support,support preview SD card pictures through WIFI

Temperature measurement settings

Support delta T, 10 points, 10 boxes, 5 lines at the same time, including maximum/minimum/average values

Full screen maximum/minimum temperature

Support, automatically capture the highest/lowest temperature of the full screen

Optical device transmission correction

Manual/automatic, based on signals from internal sensors

Radiance correction

Automatic, based on input values of emissivity

Storage method

32G high-speed SD card(extendable to 128G SD card)

Infrared image format

.jpg (including full temperature data)/.png (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 or full-radiation infrared video

Video output

HDMI

Video output interface

Micro HDMI interface

Battery type

Removable rechargeable lithium battery

Power supply voltage

DC12V

Battery operating time

General use>3 hours at 25℃

Charging method

Double-bay charger

Weight

1.5kg (including battery)

Dimensions

191x115x172mm

Operation temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

G Series Datasheet : Download

1. What is the HKDQTECH G1000?
A professional high-performance thermal camera for advanced industrial inspections and predictive maintenance.

2. What is the infrared resolution?
1024 × 768 pixels.

3. What is the thermal sensitivity (NETD)?
Less than 20 mK (@30°C, F#1.0).

4. What temperature range does it measure?
-40°C to 150°C, 100°C to 650°C, and up to 2200°C (high-temperature range).

5. How accurate is the temperature measurement?
±1°C or ±1% (from -40°C to 150°C); otherwise ±2°C or ±2% of the reading.

6. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera with LED light.

7. Does it support image and video recording?
Yes, it records thermal images, visible images, and H.264 infrared videos.

8. Does it support Wi-Fi and Bluetooth?
Yes, it supports Wi-Fi image transfer and Bluetooth headset connectivity.
