E300 Handheld Thermal Camera
In stock

E300 Handheld Thermal Camera

SKU : HKE300
MAKE : HKDQTECH
MODEL : E300
AVAILABILITY : IN STOCK
Hkdqtech
SAR 8,200.00 - SAR 8,200.00
SAR 8,200.00
SAR 8,200.00 - SAR 8,200.00
SAR 8,200.00
(Including VAT)

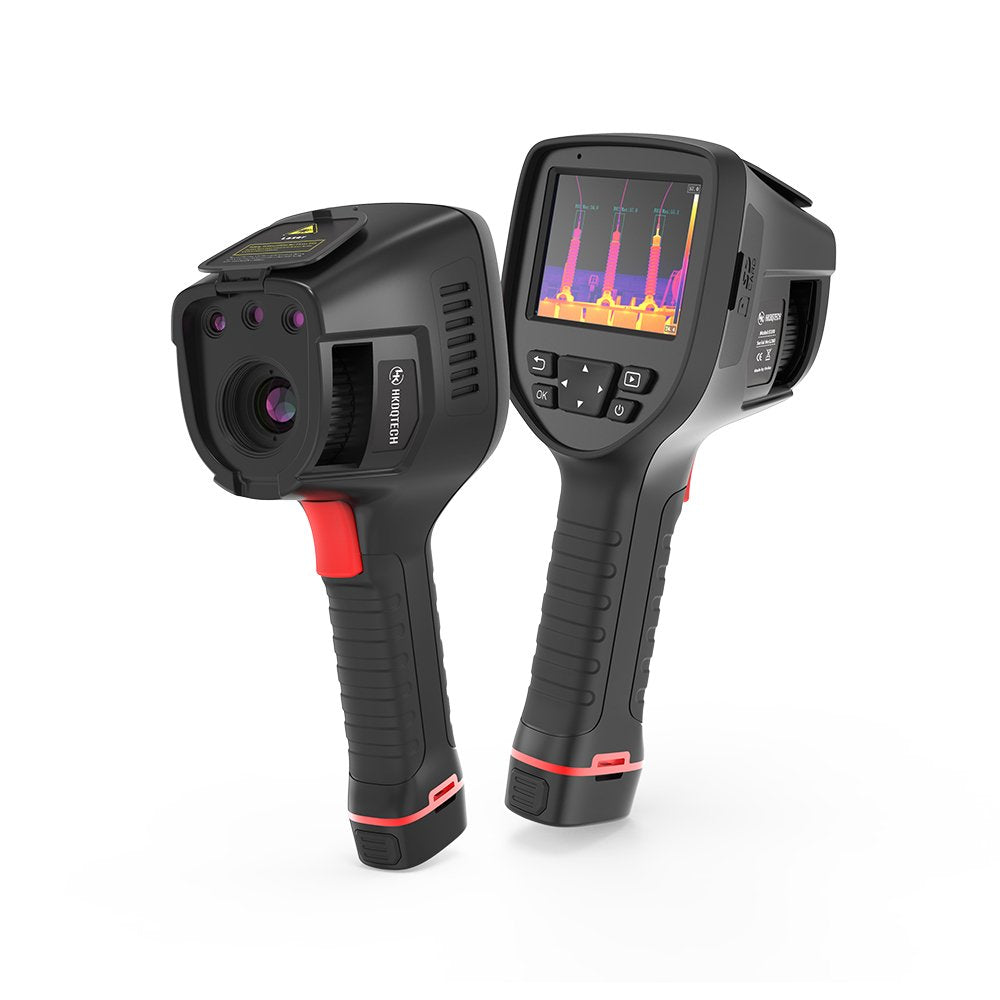

E300 Handheld Thermal Camera

HKDQTECH E300 Handheld Thermal Camera is a professional handheld infrared thermal imaging camera designed for electrical inspection, industrial maintenance, building diagnostics, and troubleshooting applications. It uses an uncooled VOX infrared detector and provides high-resolution thermal images with accurate temperature measurement.

Features:

  • Simple, Easy To Operate
  • Manual Focus, Clear Image
  • Lightweight, Well Balanced, IP54 Protection
  • Touch Screen And Buttons, Dual Operation Mode
  • High Resolution, Multiple Options

  • Quickly Find Problem

MODEL

E300

Detector type

Uncooled FPA, VOX material

IR Resolution

384x288

Thermal SensitivityNETD

＜40mK（@30℃）

Spatial resolution (IFOV)

1.3

Spectral Range

8-14μm

Standard lens

24°

Focus

Manual

Spectral Range

8-14μm

Focal length

13mm

Minimum focal distance

0.3m

Display screen

3.5" sunlight-readable display, 640x480

Standard temperature measurement range

-20°C-150°C (low range), 0°C-410°C (medium range)

Optional temperature measurement range

+300°C-+650°C/+300°C-+2,000°C/other ranges (high range)

Temperature measurement accuracy

±2℃ or 2% of readings, maximum value

Digital camera

Built-in 5MP digital camera with LED light

Laser pointer

support

Palette

10 color palettes

Touch screen

Capacitive touch screen

Display mode

Supports 5 modes: thermal imaging, visible light, dual-light fusion, picture-in-picture, and IMIX

Bluetooth

Bluetooth headset playback supported

WIFI

Real-time image transfer to mobile phone via Wi-Fi, preview via Wi-Fi Images stored on the SD card

4G (optional)

Real-time image transfer to mobile phone via 4G, cloud image viewing available

Storage method

32G high-speed SD card

Infrared image format

.jpg (including full temperature data)/.png (including full temperature data)

Visible light image format

.jpg

Infrared video format

H.264 or full-radiation infrared video

Video output

HDMI

Video output interface

Micro HDMI interface

Battery type

Removable rechargeable lithium battery

Power Voltage

DC12V

Battery operating time

General use: >4 hours at 25°C

Charging method

Double-bay charger or car charger

Weight

700g (including battery)

Dimensions

257×102×105 (mm)

Operation temperature

-20°C~55°C

Storage temperature

-40°C~70°C

Humidity (operating and storage)

≤95%, non-condensing

Packaging level

IP54

E-series Datasheet : Download

1. What is the HKDQTECH E300?
A professional handheld thermal camera for industrial inspections.

2. What is the infrared resolution?
384 × 288 pixels.

3. What is the thermal sensitivity?
NETD <40 mK (@30°C).

4. What temperature range does it measure?
-20°C to 410°C standard, optional up to 2000°C.

5. How accurate is the temperature measurement?
±2°C or ±2% of the reading.

6. Does it have a visible-light camera?
Yes, it features a built-in 5 MP digital camera with LED light.

7. Does it support image and video recording?
Yes, it stores thermal images and infrared videos on an SD card.

8. Does it support Wi-Fi and Bluetooth?
Yes, it supports Wi-Fi image transfer and Bluetooth connectivity.
