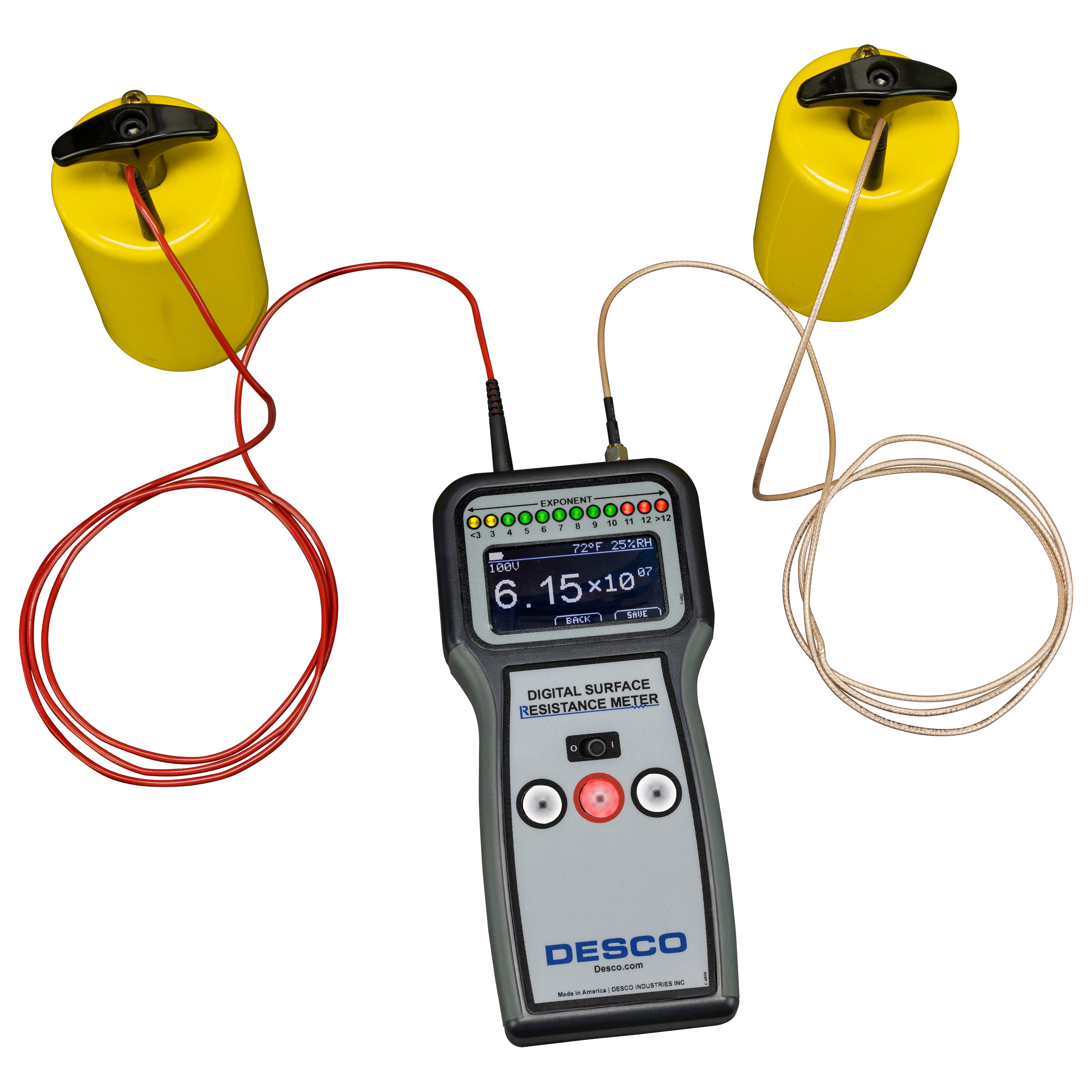

Digital Surface Resistance Meter Kit DESCO TB-3076

What is the DESCO Digital Surface Resistance Meter Kit used for?
It measures point-to-point resistance (Rtt) and resistance-to-ground (Rtg) for ESD control applications.

What resistance range does it measure?
From 1 × 10³ Ω to 1 × 10¹² Ω.

What test voltages are available?
10 V and 100 V ±5% under-load test voltages.

What materials can be tested?
Worksurfaces, flooring, garments, packaging and other materials used in ESD-controlled environments.

Does it measure temperature and humidity?
Yes. It measures ambient temperature and relative humidity along with resistance.

How many measurements can be stored?
Up to 100 measurements, including resistance, temperature, humidity and test voltage.

What is the measurement stabilization time?
Approximately 15 seconds, depending on the selected measurement stability mode.

What standards does it support?
It is designed for measurements according to standards including ANSI/ESD S4.1, ESD TR53, ANSI/ESD S7.1 and ANSI/ESD STM97.1.

What is included in the 19290 kit?

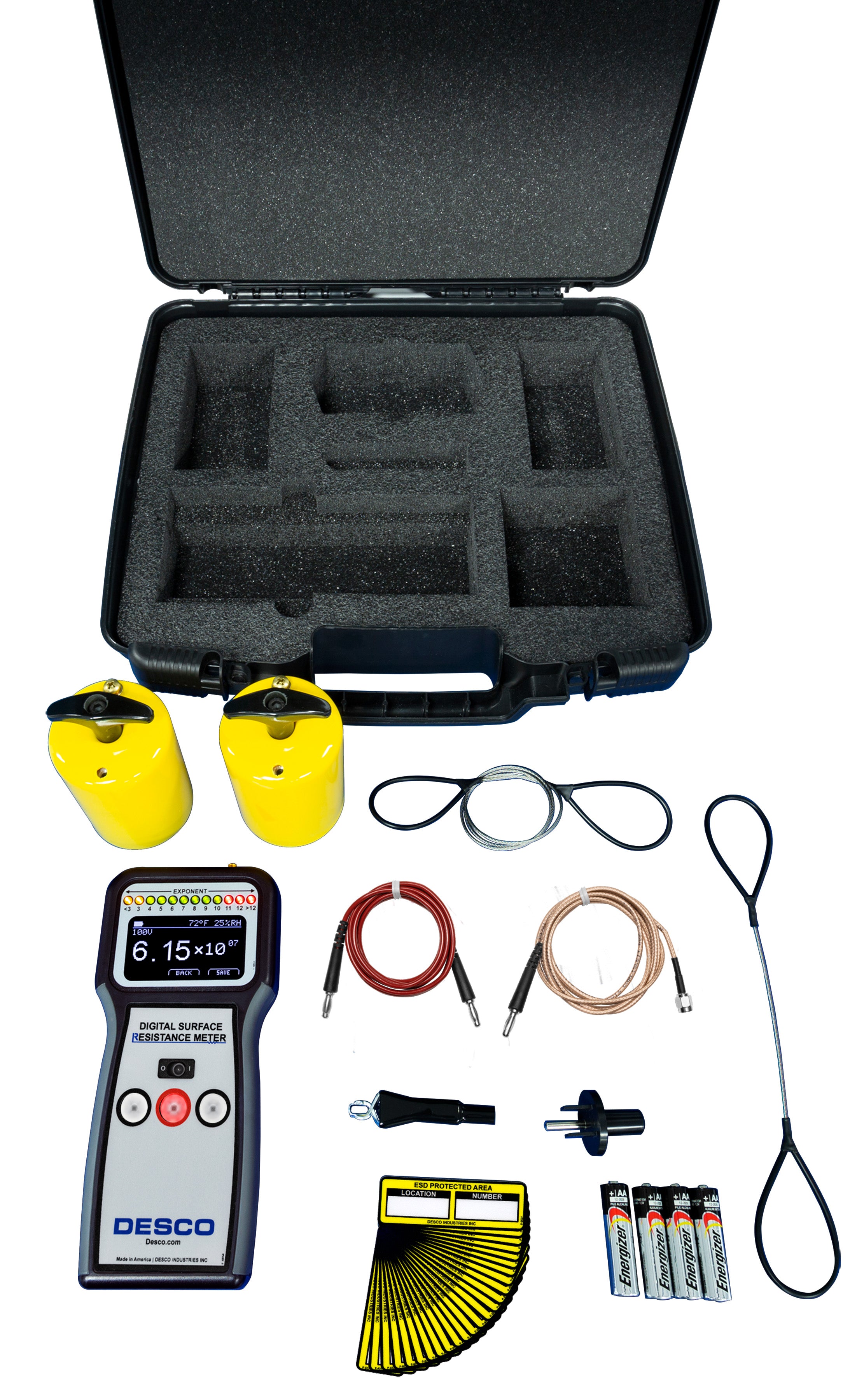

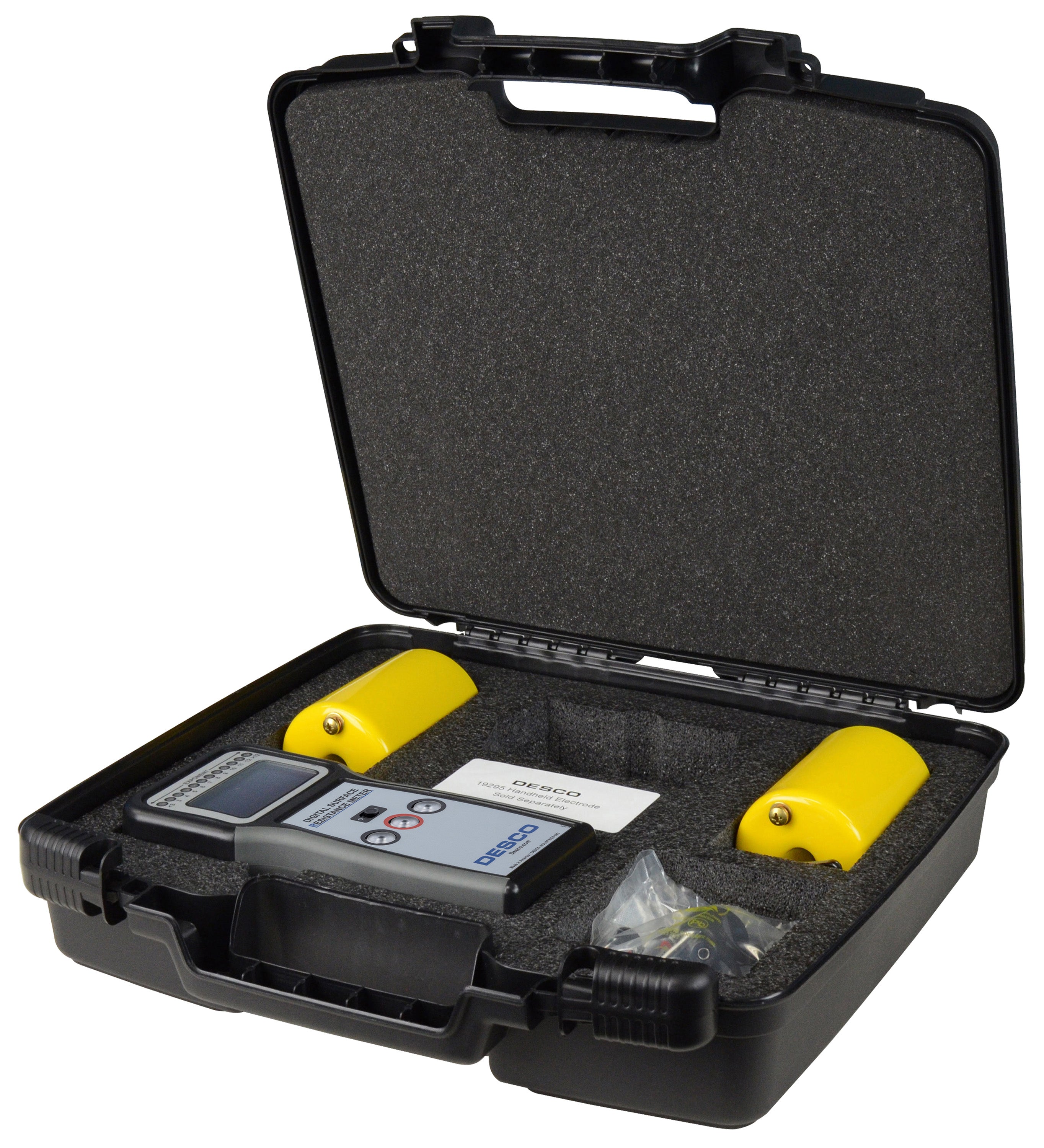

Meter, two test leads, two 5-lb electrodes, electrode spacers, batteries, ground plug adapter, gator clip, measurement labels, carrying case and calibration certificate.

Is the meter supplied calibrated?
Yes. The kit includes a calibration certificate, with calibration traceable to NIST according to DESCO.
