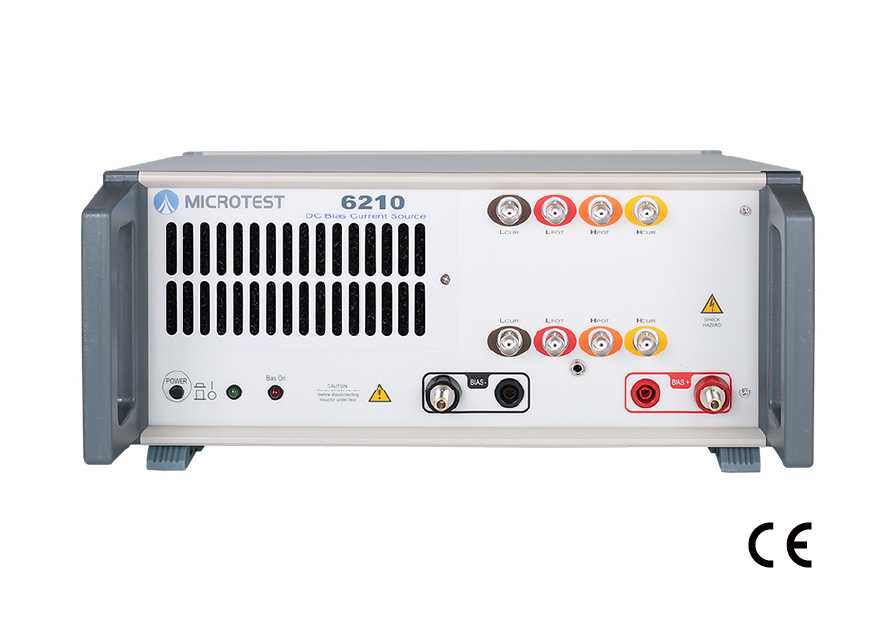

DC Bias Current Test System Microtest 6210 Series

he 6210 DC Bias Current Source is designed for performing magnetic saturation current (Isat) and temperature rise current analysis (Irms) on inductors. It provides a single output current of 20A. To conduct such analysis, you have the option to purchase the system along with the 6632 Impedance Analyzer.

For the 6632 Impedance Analyzer, it has a frequency range of 100Hz-3MHz and can handle a maximum output current of 60A using 6 units.

Up to 1MHz
Each individual unit can output DC Bias Current 10A (Max.60A)
Control by the LCR Meter or Impedance Analyzer

What is the Microtest 6210?

A DC Bias Current Test System designed for testing inductors and magnetic components under DC current conditions.

What is the maximum output current?

The 6210 provides 10 A output current per unit. Multiple units can be combined for higher current applications.

What is the maximum combined current?

The latest Microtest specification lists up to 60 A maximum output current for the 6210 when units are combined.

What is the frequency response?

The 6210 supports a DC-bias frequency response of approximately 100 Hz to 3 MHz.

Can it perform magnetic saturation testing?

Yes, it supports magnetic saturation current curve scanning.

Can it perform temperature-rise testing?

Yes, it supports temperature-rise current curve scanning to evaluate component heating characteristics.

Does it support frequency scanning?

Yes, it provides frequency graphic scanning analysis.

Can it measure DC resistance?

Yes, the system supports DCR/DC resistance measurement.

Does it provide constant-power output?

Yes, the 6210 supports constant-power output for extended testing.

What LCR analyzer can be used with the system?

The DC Bias system can be combined with a Microtest 6632/6632S Series Impedance Analyzer, depending on the configuration.
