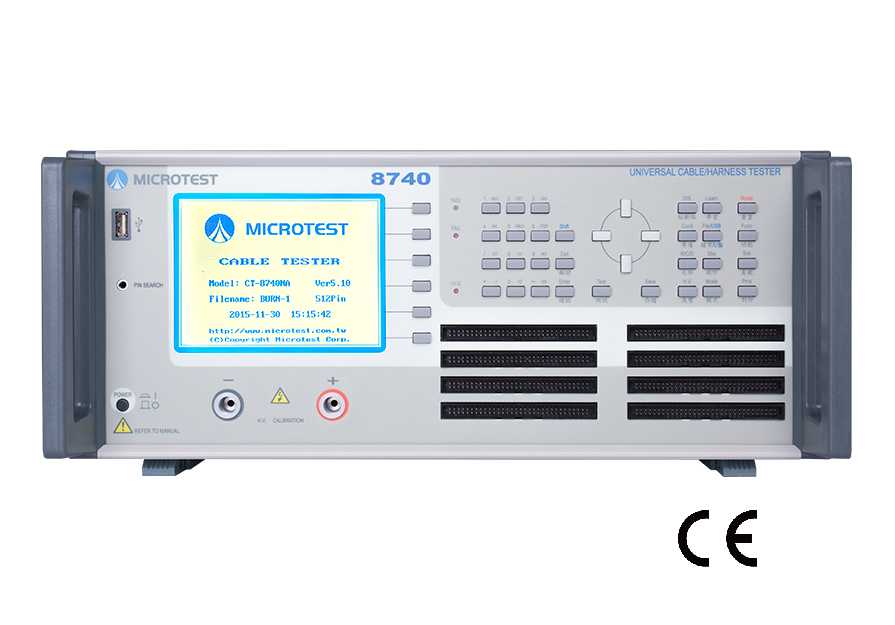

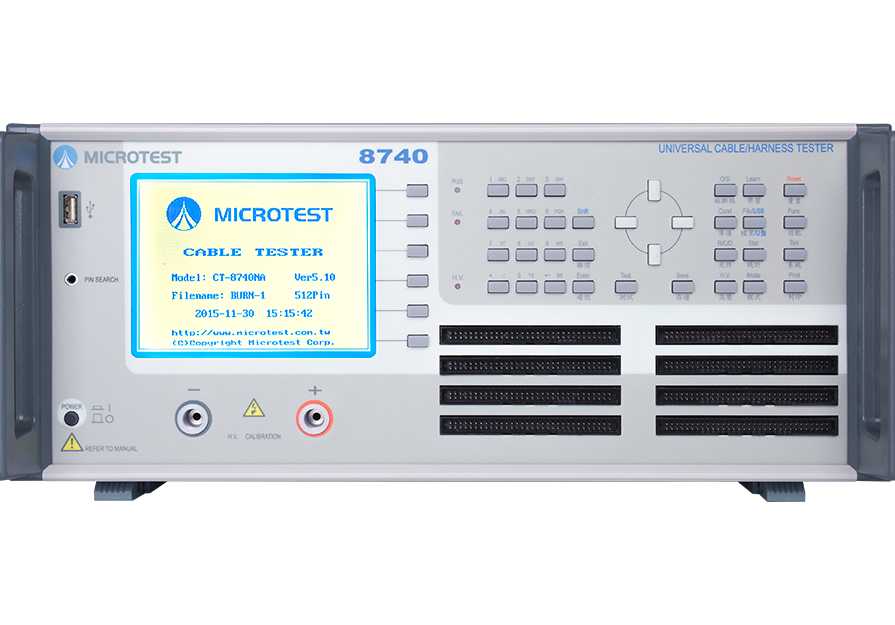

2-Wire Cable Tester Microtest 8740 Series
SKU : MT8740
MAKE : MICROTEST
MODEL : 8740
AVAILABILITY : IN STOCK
2-Wire Cable Tester Microtest 8740 Series
MICROTEST 8740 series Cable Harness Tester employs two-wire measurement technology and is suitable for products that do not require very low resistance measurements, considering the cost factors of the testing fixture. The testing capabilities include Continuity Test, open/short circuit, AC/DC safety withstand voltage, IR insulation, and component testing (resistor/capacitor/diode). The testing points can be selected from 128/256/512 options, with a maximum AC withstand voltage output of 1000V and a maximum DC withstand voltage output of 1500V. It supports PC connectivity software and BAR Code scanning, meeting the requirements for automated line testing in wire and connector production.
- Test pin 128/256/512
- Number of test file up to 500 sets
- Open/Short
- Continuity Test
- AC/DC Hipot Test
- DC insulation
- Quick conductance
- Multiple DUT test
- Support bar code scan and print function
- Automatically identify the normal or reverse plugin of wire or connectors
Specification | Details |
Model | 8740 |
Product Type | 2-Wire Cable Tester |
Test Points | 128 / 256 / 512 points |
Continuity Test | Yes |
Open / Short Test | Yes |
Intermittent Test | Intermittent continuity and open/short testing |
AC Hipot | Up to 1000 V AC (model dependent) |
DC Hipot | Up to 1500 V DC (model dependent) |
Insulation Resistance | Yes |
Component Testing | Resistor, capacitor and diode testing |
Single-Side Testing | Supported |
Test File Storage | Up to 500 test files |

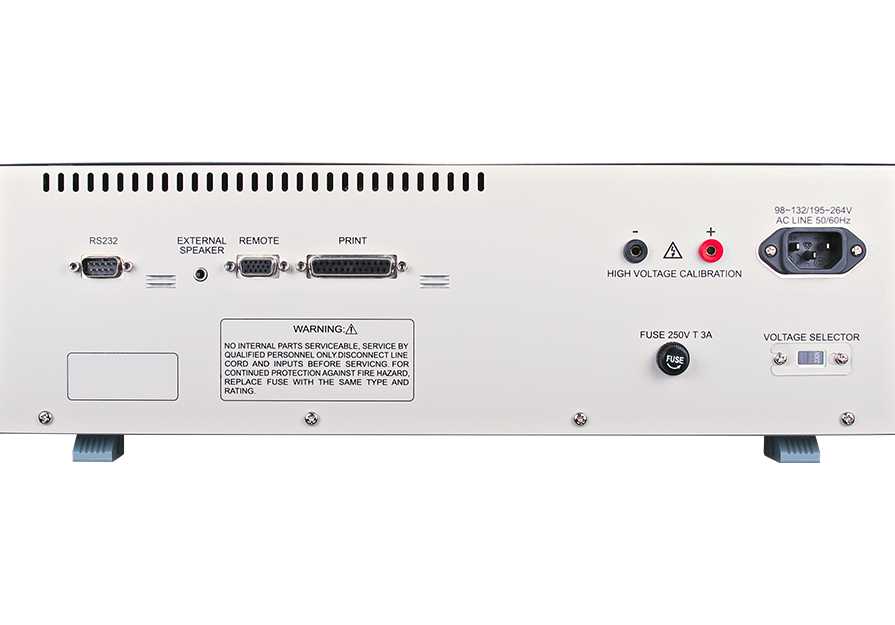

Interfaces | RS-232, USB Host, Print and Remote |
Automation | Automatic testing and external trigger supported |
PC Connectivity | Supported |
Barcode Scanner | Supported |
Applications | Cables, connectors and wire harnesses |
